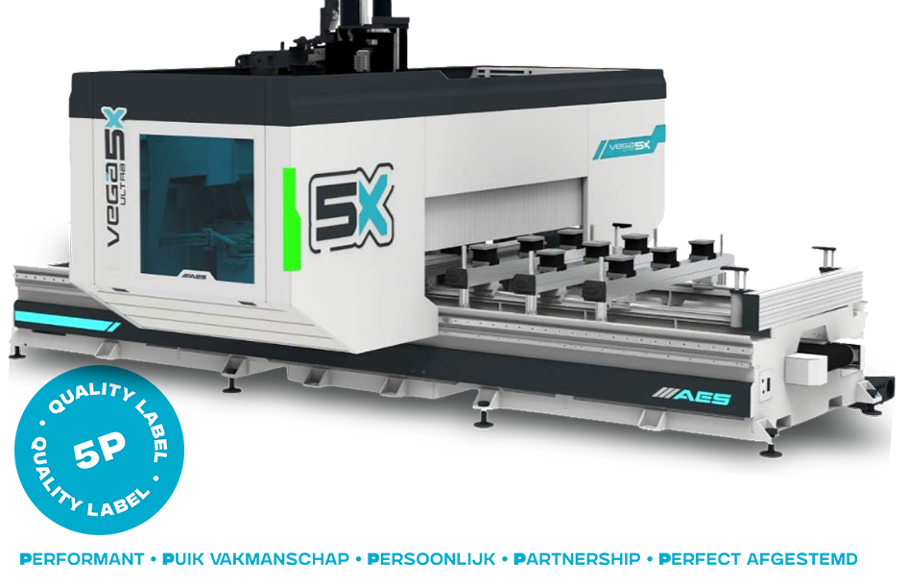

VEGA 5X ULTRA

The Vega 5X Ultra is an extremely heavy-duty 5-axis CNC machining centre with Schmalz vacuum consoles and the unique Schmalz hoseless vacuum piston system.

A gantry drive construction ensures extra stability and precision. Combined with an X-axis machining length of up to 6000 mm, for example, and the possibility of pendulum operation, this machine is a real winner, and at travel speeds of up to 100m/min.
With impressive machining accuracy, this machine ensures perfect drilling and milling results time after time.

Simple control via state-of-the-art CNC technology with NC-Hops software as standard.

The perfect machine for companies looking for flexibility. Closets, stairs, windows or customisation, the Vega 5X Ultra does it all, with ease at the shortest possible production cycles.

VEGA 5X ULTRA

VEGA 5X ULTRA

Back to overview

Universal, flexible 5-axis CNC technology, that's what the Vega 5X Ultra stands for. With its very spacious standard design accessible to all, this is a 5-axis CNC machine for heavy and flexible work.

Coupling CNC technology with top performance, the Vega 5X Ultra does it with ease on complex projects or robust challenges in an industrial environment.

This machine can become the heart of your machining operations in your workshop.

The highly intuitive user interface with logical arrangement of controls ensures flawless integration into your operation. Control via external CAD/CAM systems can be perfectly integrated.

Fitting the machine into automated projects is no problem either. Fitting the machine into automated projects is no problem either.
Reliable, powerful, fast, modern high-tech even for heavy work and yet individually and customisable if required.

Show more

Key highlights at a glance

  • Very robust construction for maximum stability and precision
  • 5-axis machine with gantry drive construction
  • X-axis operating lengths 2500 / 3200 / 4500 / 6000 mm
  • Very easy-to-use operating software
  • Extended drill head DH17
  • Automatic centralised lubrication
  • Automatic tool length measuring system
  • Unbeatable value for money

AES machines are characterised by extremely solid construction and use of the latest technologies.
Thanks to the wide range, there is the right machine for every application.

VEGA 5X ULTRA Technical data

  • Bridge-type machine, Y-axis travel 1600mm
  • Workfield: X=2500 / 3200 / 4500 / 6000 mm, Y=1550 mm, Z=470 mm
  • Operating speeds: X= 100m/min., Y = 100m/min., Z = 20m/min.
  • Milling motor 15Kw/18Pk HSK-F63, 5-axis ("endless") interpolation included, liquid cooler included, with ceramic bearings and pneumatically height-adjustable extraction hood
  • 12-fold rotary tool change, moving in X, all positions with anti-crash control sensor
  • Drill head DH17 / V=X7+Y3, H=X2+2 + Y1+1, S=X
  • Controlled central extraction connection
  • Handterminal Pro, all commandos
  • Automatic centralised lubrication
  • Automatic tool length measuring system
  • All reference stops with control sensors
  • Operator control screen integrated in electrical cabinet
  • CE safety system (to be provided)
  • 4 Schmalz consoles, 2 stops in front and behind, 12 vacuum cups (for model 1625)
  • 6 Schmalz consoles, 1 stop behind, 18 vacuum cups (for model 1332)
  • 8 Schmalz consoles, 2 stops in front and behind, 24 vacuum cups (for model 1645)
  • 10 Schmalz consoles, 2 stops in front and behind, 30 vacuum cups (for model 1660)
  • Vacuum pump 100 m³/u
  • NC Hops CAD/CAM user interface in combination with the Controller for axis control. Easy graphic programming of workpieces. Graphic representation of workpiece, machine details, clamps, ect possible. DXF, STL, STEP
  • Visual status indication of the machine
  • 2 lifters for model 1625, 4 for model 1632 &1645, 6 for model 1660
  • 2 working fields for 1625, 4 working fields for 1632, 1645 & 1660
