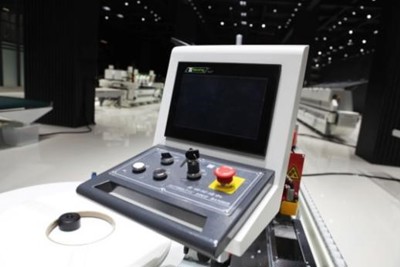

The 10-inch colour touchscreen provides intuitive and well-organised control of the machine.
All functions are easily accessible, allowing settings to be adjusted quickly and accurately.
This ensures maximum operating comfort and an efficient workflow.

The aluminium pressure bar above ensures even and stable pressure on the workpiece during edge banding.
The solid aluminium construction guarantees durability, precision and reliable throughput.

Motorised height adjustment makes setting up the machine quick, precise and user-friendly.
The desired working height can be easily adjusted to suit different panel thicknesses.
This allows you to work more efficiently and maintain a consistent finish quality.

Riepe spray nozzles apply release agent and cleaning solution with precision during edge banding.
This helps to prevent glue residue and ensures clean processing of the panel and edge banding.

The two 45° bevel milling heads, equiped with diamond tools, ensure precise and durable edge machining.
The bevel milling units enable a clean finish in specific angular applications.
Thanks to the diamond tools, quality remains consistent, even with intensive use

The 2 straight pre-milling heads with diamond tools ensure a smooth and precise preparation of the panel edge.
They remove minor imperfections and create a perfect base for the edge banding to adhere firmly.
Thanks to the durable diamond tools, the finish quality remains consistent even with intensive use.

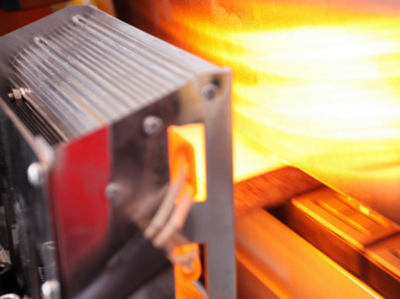

Preheating the panel brings the material to the correct temperature before the adhesive is applied.
This encourages optimal adhesion of the edge banding and ensures consistent application.
In this way, preheating contributes to a strong, neat and consistent finish

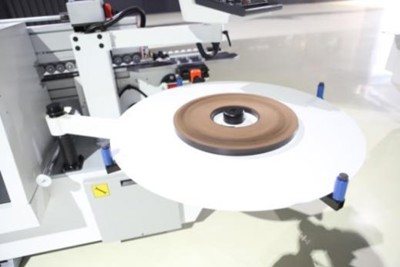

Edge banding feeding on a roll ensures a smooth and continuous supply of edge banding material during the gluing process.
Ideal for efficient batch production with PVC, ABS or other edge banding on a roll.

A router unit cuts a small groove into the edging material, creating a perfectly clean fold when combined mitre and straight edges in one workpiece.  The depth and position of the groove are adjustable.

Applying adhesive to the bevelled edge of the panel ensures a strong and even bond with the edging tape.
The adhesive is applied with precision to ensure a neat finish, even on bevelled surfaces.

Applying the adhesive to the straight part of the panel ensures a strong and even bond with the edging tape.
The adhesive is applied precisely to ensure a neat join and a durable finish.

The pressure rollers follow the edging material perfectly and ensure an even distribution of pressure.
This results in a neat, durable finish with the edging tape fitting perfectly.

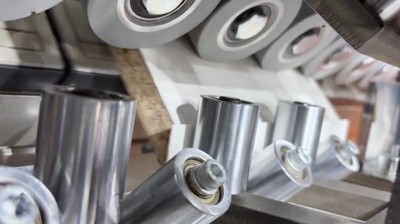

Separate rollers press the straight and then the beveled section of the edging material firmly against the panel.
As the straight section is pressed, the beveled rollers retract slightly

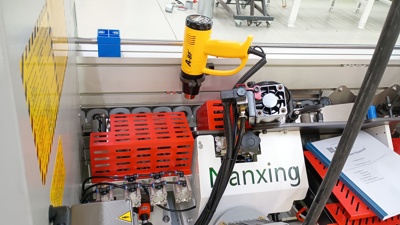

Heating ABS edging material increases its flexibility, making it easier to bend.

End trimming unit for the precise trimming of excess edging material from the front and rear of the panel.
The two saws move in sync with the panel via high-quality linear guides.
Thanks to the stable guide, the saw units move smoothly and with minimal vibration, ensuring a clean cut.
This results in a neat finish and reliable performance, even during intensive use.
Both saws are angle-adjustable for both straight and mitre cuts of the edging material.

Rough trimming on an edge banding machine ensures the quick and efficient removal of excess edge material at the top and bottom.
The trimming units trim the edge down to close to the desired final dimension.
Rough trimming is an important preparatory step for a clean and precise final finish.
The nesting function with copy sensors prevents damage to existing hinge holes.

Fine trimming ensures a smooth and precise finish on the edge banding.
The fine trimming unit removes minor imperfections and aligns the edge perfectly with the workpiece.
Equipped with an R 1.5 tool, it produces a clean, professional finish.

Radius scraping removes fine milling marks and ensures a perfect rounding (R1.5) and a smooth finish on the edge.
This gives every edge a high-quality, professional finish without the need for further processing.

Flat scraping removes excess adhesive residue and minor imperfections along the edging strip.
The scraping unit ensures a smooth surface and a neat transition between the edging and the sheet material.
This gives the workpiece a clean, professional finish without the need for additional finishing work.

These brushes ensure a professional finish after edge banding.
They remove any excess adhesive and polish the edge banding to achieve a smooth, even finish.

The central lubrication system for the infeed chain ensures even lubrication during operation.
This reduces wear, extends the chain’s service life, and minimizes maintenance.
As a result, the feed remains smooth and reliable, even under heavy use.

The energy-saving mode automatically switches to standby when the machine has been inactive for a set period of time.
This reduces energy consumption without requiring the machine to be completely turned off.
With a single click, you can resume production and quickly continue working with the edge banding machine.

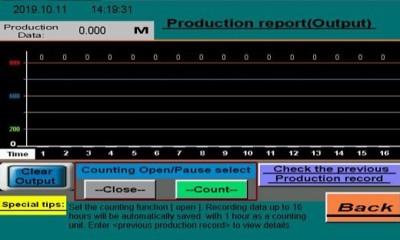

The production report provides a clear daily overview of the production carried out.
The number of workpieces and the total length are available at a glance.
This allows you to track the performance of the Nanxing edge banding machine easily and accurately.
