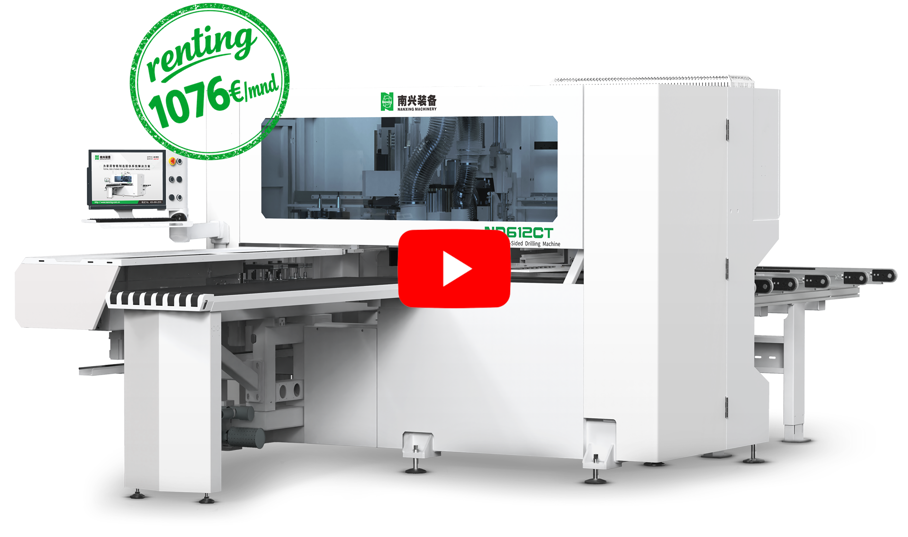

ND612CT

The Nanxing ND612CT CNC drilling and milling center is a compact and powerful solution for precise and efficient machining of wood, aluminum, and plastic. This 6-sided CNC drilling machine combines speed, precision, and flexibility, making it ideal for modern production environments.

Thanks to its extensive configuration—featuring a DH29 drill head, two milling motors (one with a C-axis on the top), a DH9 drill head, and an additional milling motor on the bottom—you can achieve significant time savings and an optimized workflow.
For even greater capacity, there is the option to integrate a second drill head on the top, further increasing productivity.

The machine is controlled via advanced CNC technology with Syntec software, ensuring user-friendly operation and seamless integration into your production process.

The Nanxing ND612CT is the ideal choice for interior builders and furniture manufacturers seeking greater efficiency, automation, and consistent quality.

ND612CT

ND612CT

Back to overview

The 6-sided Nanxing ND612CT CNC drilling and milling center combines a compact design with impressive performance. This CNC drilling machine fits perfectly into any modern workshop and is ideal for interior builders who prioritize efficiency, flexibility, and automation.
What makes this machine stand out is its wide range of machining capabilities, featuring a drill head, milling motor and C-axis on the top, combined with a drill head and milling motor on the bottom. Additionally, the ND612CT offers the option to further expand the top unit with a second drill head, ensuring maximum flexibility and productivity.
Thanks to this configuration, machining operations are performed in a single pass, without the need to reposition workpieces. This results in significant time savings and an optimized workflow.
The machine is equipped with user-friendly CNC control and an intuitive interface, making integration into your production process straightforward. The ability to connect with external CAD/CAM systems also makes this solution particularly well-suited for automation and smart manufacturing environments.
The Nanxing ND612CT is a reliable and affordable choice for companies looking to increase their production capacity and quality.
Please note: the CE configuration may differ from the image shown.

+

Key highlights at a glance

  • Very robust construction for maximum stability and precision
  • Operates at truly top speeds
  • Milling motor with C-axis
  • Air cushion table at the front of the machine
  • Guides and belts at the output
  • Automatic central lubrication as standard
  • Impeccable price

Our showroom

Visit our spacious 1,600 m² showroom in Hooglede, where all our CNC machines and edge banders are fully set up and ready for live demonstrations. Experience the quality, speed, and precision of our solutions up close. Our experts are ready to provide you with personal and professional advice.

Make an appointment

ND612CT: Technical data

  • DH29 drill head on top
  • DH9 drill head on bottom
  • Milling motor 7,5 HP on top with C-axis, 2 positions tool holder in line
  • Milling motor 7,5 HP on top, 8 positions tool holder 4 + 4 in line
  • Milling motor 5,5 HP on bottom
  • Workfield: width Y=1220 mm, length X= 3000 mm and operating range Z=60 mm
  • Speeds: Y= 75m/min., X= 135m/min., Z= 30m/min.

ND612CT: Details

Option to install a second drill head in the upper machining unit. This drill head is the same type as the first and is mounted in a mirrored configuration, enabling simultaneous machining operations and increasing productivity.

  • Dual spindle for parallel machining
  • Identical tool type for consistent results
  • Mirrored design for optimal positioning and efficiency

A sensor checks that the workpiece is correctly positioned prior to the desired operation.
The sensor measures the position and height and compares these with the set reference.
Any deviations are corrected or trigger an error message to prevent mis-drilling.

Ability to machine two mirrored parts simultaneously.
The CNC controls both positions synchronously using a mirrored program (top/bottom).
This increases productivity and ensures identical, symmetrical parts.

A 2000 x 600 mm air cushion table positioned at the front/input of the machine, equipped with a powerful 1.1 kW blower. This creates a thin air cushion, allowing the workpiece to be fed and positioned with virtually no friction.

  • Smooth and ergonomic feeding of panels or workpieces
  • Reduction of physical strain on the operator
  • Protection against scratches or surface damage

This ensures more efficient material handling and higher productivity.

Combined brush guides and a side belt conveyor table on the output side of the CNC drilling machine, designed for controlled and damage-free transfer of workpieces. The brushes guide and stabilize the panel without scratching it, while the side belts ensure a constant and reliable throughput.

  • Stable and precise removal of workpieces
  • Protection of sensitive surfaces
  • Continuous and efficient flow to the next processing step
This system increases productivity and ensures clean, safe handling after processing.

You can configure the software to have finished parts sent to the front or rear of the CNC machine. This flexible configuration allows you to adapt the workflow to the available space, the production line, or the operator’s preference.

The horizontal light curtain at the front detects interruptions in the light beams and stops the machine if an object or person is detected.
The other sides are enclosed by fencing.
