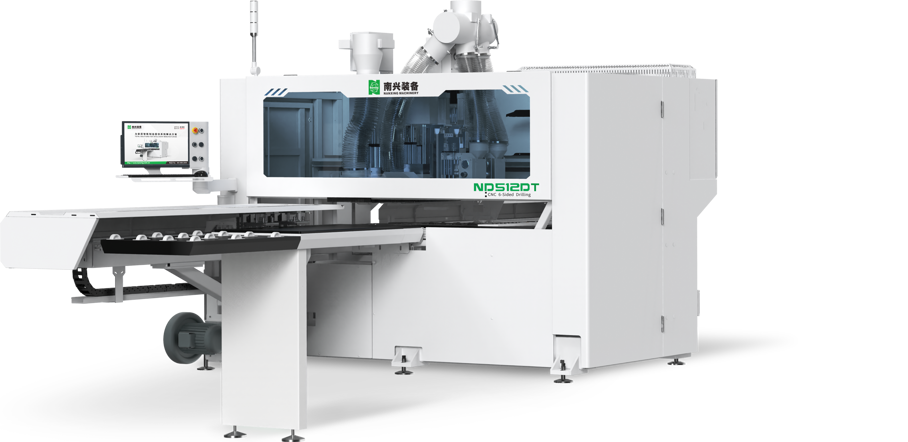

ND512DT

The Nanxing ND512DT is a compact 6-sided CNC drilling and milling center that delivers high performance within a limited floor space. This machine combines precision and efficiency, ensuring you consistently achieve high-quality results.

Thanks to the dual spindle (DH18) and milling motor with top-loading tool change, you achieve significant time savings.

Control is provided by modern Syntec CNC technology software as standard, ensuring user-friendly operation and smooth integration into your production process.

A reliable and efficient solution for interior builders who want to take their production to the next level.

ND512DT

ND512DT

Back to overview

The Nanxing ND512DT combines a compact design with impressive performance, allowing it to effortlessly take center stage in any modern workshop. Thanks to its well-thought-out design, this machine is ideal for interior builders who want to combine efficiency and flexibility.

What truly sets this machine apart is its 6-sided drilling capability, featuring a dual drill head and a router motor with a 4-position in-line tool changer. All this at an extremely competitive price.

For those seeking a high-quality and affordable solution, this machine offers exceptional value.

The user-friendly interface and logically structured controls make integration into your production process simple. Furthermore, integration with external CAD/CAM systems is seamless, allowing automation projects to be implemented smoothly.

With the Nanxing ND512DT, you’re bringing a future-oriented solution into your facility that takes your production to the next level.
CE configuration may differ from the image on the website.

+

Key highlights at a glance

  • Very robust construction for maximum stability and precision
  • Operates at truly top speeds
  • Double DH18 drill head
  • Milling motor with an 4-position tool changer
  • Air cushion table in front & behind the machine
  • Automatic central lubrication as standard
  • Impeccable price

Our showroom

Visit our spacious 1,600 m² showroom in Hooglede, where all our CNC machines and edge banders are fully set up and ready for live demonstrations. Experience the quality, speed, and precision of our solutions up close. Our experts are ready to provide you with personal and professional advice.

Make an appointment

ND512DT: Technical data

  • Double drill head DH18 on top
  • DH9 drill head on bottom
  • Milling motor 7,5 HP on top, with an 4 positon tool changer in line
  • Milling motor 5,5 HP on bottom
  • Workfield: width Y=1220 mm, length X= 2800 mm and operating range Z=60 mm
  • Speeds: Y= 75m/min., X= 135m/min., Z= 30m/min.

ND512DT: Details

A sensor checks that the workpiece is correctly positioned prior to the desired operation.
The sensor measures the position and height and compares these with the set reference.
Any deviations are corrected or trigger an error message to prevent mis-drilling.

Ability to machine two mirrored parts simultaneously.
The CNC controls both positions synchronously using a mirrored program (top/bottom).
This increases productivity and ensures identical, symmetrical parts.

The 1600×500 mm air cushion tables with blowers ensure smooth feeding and removal of workpieces on both sides of the machine.

The central lubrication system provides various guides with a controlled dose of lubricant.
Periodic lubrication increases the lifespan.
This helps prevent malfunctions and boosts productivity.

2 independent CNC-driven rack-and-pinion clamps, guided by oversized prismatic guides.
Each clamp is equipped with 3 workpiece roller guides.

This stop cylinder allows you to position the workpiece correctly before machining begins.
The stop cylinder moves downwards at the start of the machining cycle.

A 4-position in-line tool changer offers an efficient and space-saving solution for quick tool changes on CNC machines. Thanks to the linear arrangement of four tools, changes are made smoothly and accurately.

To be specified according to machine model.

The automatically controlled side rail optimizes stability during CNC machining, resulting in excellent precision.

A barcode scanner on a CNC machining machine is used to quickly and accurately select workpieces in a program database. By scanning barcodes, the correct machining information is automatically loaded, reducing errors and increasing efficiency. This contributes to an automated and streamlined production process.

The modern, ergonomic, movable flatbed control console integrates both a color screen and essential control buttons.

With this handheld terminal, you can manually move the three axes individually using the handwheel at three different speeds.

When entering the length dimension of new or re-sharpened tools, the machine places the tool on a calibrated measuring surface.
The measured actual value is compared with the theoretically entered value and is automatically adjusted in the tool library.
This results in highly precise machining operations.

NC Hops CAD/CAM user interface in combination with the AES PLC for axis control.
Easy graphic programming of workpieces.
Graphic representation of workpiece, machine details, clamps, ect possible.
Import .MPR, .DXF, .BAN, .BPP, .PDX, .XML, .XXL drawings possible.


Electrical control cabinet equipped with high-quality electronic components, featuring an integrated air conditioning system for optimal thermal stability and a longer service life.

The horizontal light curtain at the front detects interruptions in the light beams and stops the machine if an object or person is detected.
The other sides are enclosed by fencing.
