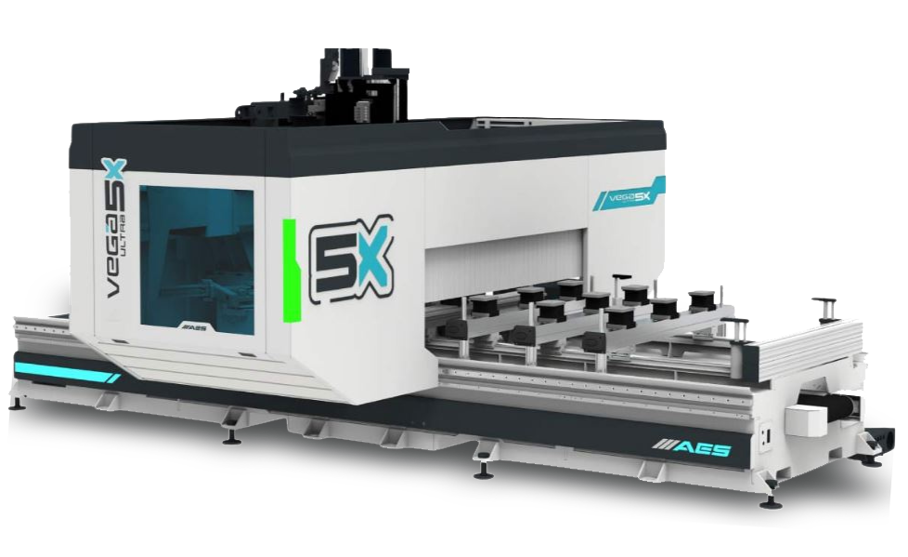

VEGA 5X ULTRA

The Vega 5X Ultra is an extremely heavy-duty 5-axis CNC machining centre with Schmalz vacuum consoles and the unique Schmalz hoseless vacuum piston system.

A gantry drive construction ensures extra stability and precision. Combined with an X-axis machining length of up to 6000 mm, for example, and the possibility of pendulum operation, this machine is a real winner, and at travel speeds of up to 100m/min.
With impressive machining accuracy, this machine ensures perfect drilling and milling results time after time.

Simple control via state-of-the-art CNC technology with NC-Hops software as standard.

The perfect machine for companies looking for flexibility. Closets, stairs, windows or customisation, the Vega 5X Ultra does it all, with ease at the shortest possible production cycles.

VEGA 5X ULTRA

Back to overview

Universal, flexible 5-axis CNC technology, that's what the Vega 5X Ultra stands for. With its very spacious standard design accessible to all, this is a 5-axis CNC machine for heavy and flexible work.

Coupling CNC technology with top performance, the Vega 5X Ultra does it with ease on complex projects or robust challenges in an industrial environment.

This machine can become the heart of your machining operations in your workshop.

The highly intuitive user interface with logical arrangement of controls ensures flawless integration into your operation. Control via external CAD/CAM systems can be perfectly integrated.

Fitting the machine into automated projects is no problem either. Fitting the machine into automated projects is no problem either.
Reliable, powerful, fast, modern high-tech even for heavy work and yet individually and customisable if required.

+

Key highlights at a glance

  • Very robust construction for maximum stability and precision
  • 5-axis machine with gantry drive construction
  • X-axis operating lengths 2500 / 3200 / 4500 / 6000 mm
  • Very easy-to-use operating software
  • Extended drill head DH17
  • Automatic centralised lubrication
  • Automatic tool length measuring system
  • Unbeatable value for money

Les machines AES se caractérisent par une construction extrêmement solide et l'utilisation des technologies les plus récentes.
Grâce à leur large gamme, vous trouverez une machine adaptée à chaque application.

Our showroom

Visit our spacious 1,600 m² showroom in Hooglede, where all our CNC machines and edge banders are fully set up and ready for live demonstrations. Experience the quality, speed, and precision of our solutions up close. Our experts are ready to provide you with personal and professional advice.

VEGA 5X ULTRA: Technical data

  • Machine à pont, course de l'axe Y de 1600mm
  • Zone d'usinage: largeur de Y=1550 mm, longueur de X=2500 / 3200 / 4500 / 6000 mm et course de Z=470 mm
  • Vitesses: Y= 100m/min., X= 100m/min., Z= 20m/min.
  • Moteur de fraisage 15Kw/18Pk HSK-F63, interpolation 5 axes ("endless") incluse, compris refroidisseur de liquide, avec paliers céramiques et capot d'aspiration à réglage pneumatique en hauteur
  • Changement d'outil rotatif 12 fois, mouvement en X, toutes les positions avec capteur de contrôle anti-crash
  • Tête de perçage DH17 / V=X6+Y4, H=X2+2 + Y1+1, S=X
  • Connexion d'aspiration centrale contrôlée
  • Terminal manuel Pro, toutes les commandes
  • Lubrification centralisée automatique
  • Système de mesure automatique de la longueur des outils
  • Butées de référence avec senseurs de contrôle
  • Écran de contrôle intégré dans le cabinet électrique
  • Système de sécurité CE (à prévoir)
  • 4 Schmalz consoles, 2 butée avant et arrière, 12 ventouses à dépression (pour le modèle 1625)
  • 6 Schmalz consoles, 2 butées avant et arrière, 18 ventouses à dépression (pour le modèle 1632)
  • 8 Schmalz consoles, 2 butées avant et arrière, 24 ventouses à dépression (pour le modèle 1645)
  • 10 Schmalz consoles, 2 butées avant et arrière, 30 ventouses à dépression (pour le modèle 1660)
  • Pompe à vide 100 m³/u
  • Interface utilisateur NC Hops CAD/CAM
  • Visualisation de l'état de la machine
  • 2 Elevateurs pour modèle 1625, 4 pour modèle 1632 &1645, 6 pour modèle 1660
  • 2 zones de travail pour 1625, 4 zones de travail pour 1632, 1645 & 1660
