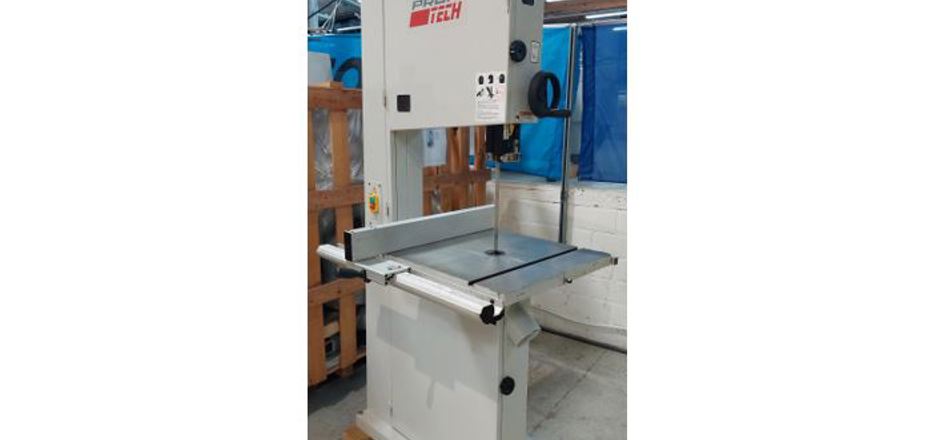

Band saw Holztech LZE 530

M002788
  • Year of construction 2006
  • Available immediately
Band saw Holztech LZE 530
Technical Data

table dimensions : 530 x 530 mm
max. cutting height: 350 mm
max. cutting width (without guide) : 510 mm
                              (with guide) : 465 mm
flywheel diameter : 530 mm
saw blade width (standard) : 6-35 mm
cutting speed : 1615 m/min
saw blade length : 4190 mm
table tilt adjustment : 20 °
working height : 900 mm
diameter extraction outlet : 100 mm
motor power : 3 HP
weight : 264 kg
Cast iron flywheels
Top and bottom saw blade guide
Square longitudinal guide with display
Tilting table
With saw blade
