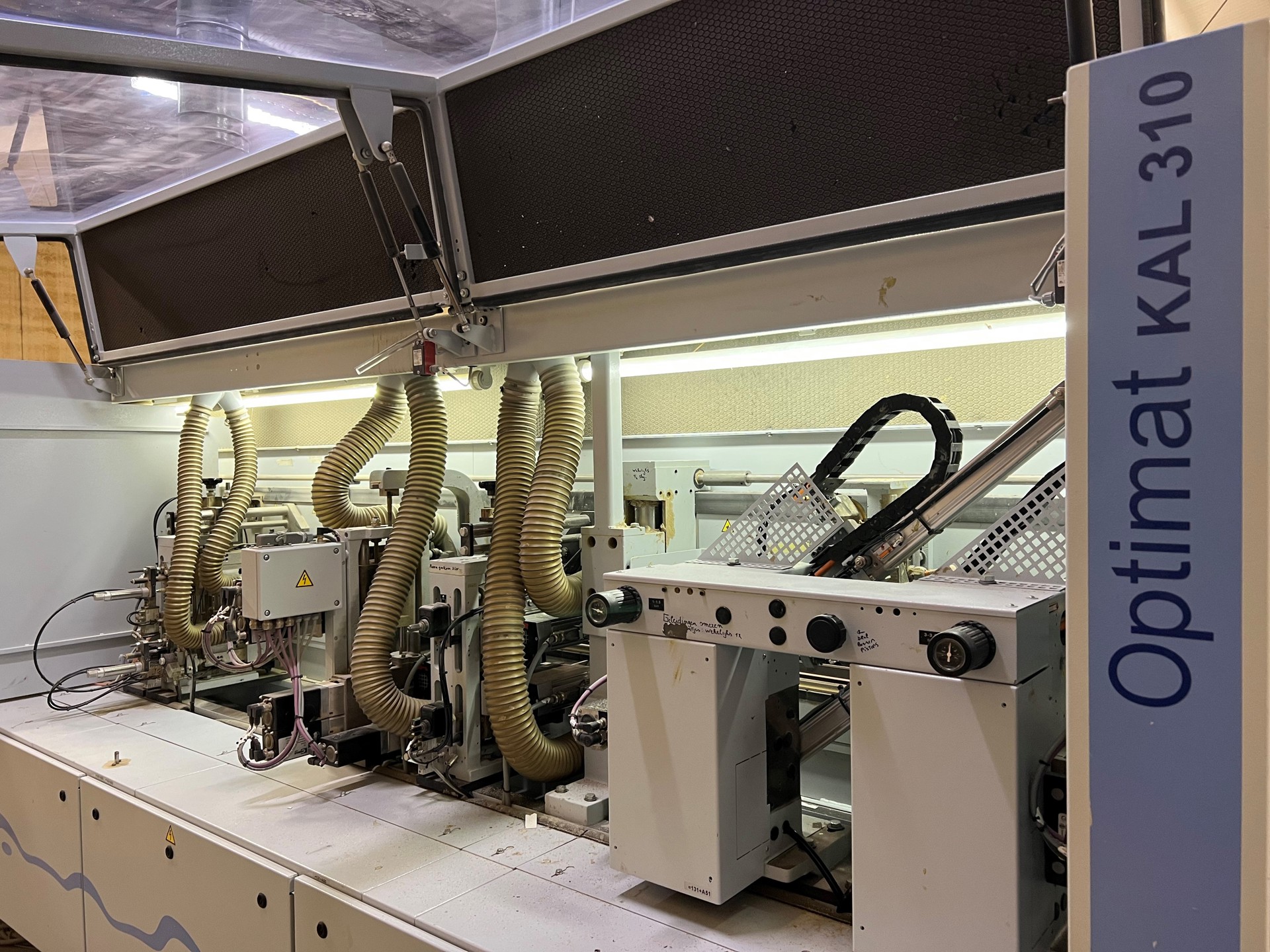

Homag Optimat KAL 310 Edge banding machine

M002621
  • Year of construction 2008
Homag Optimat KAL 310 Edge banding machine
Technical Data

Glueing of massive, melamine, PVC, ABS, veneer, ...
Edging material on rolls thickness : 0.3 to 3.0 mm
Strips thickness : 0.4 to 3.0 mm
Solid thickness up to : 20 mm
Edge material height max : 65 mm
Workpiece height min / max : 12 - 60 mm
Workpiece width min. by height : 55 by 22 mm
Voltage : 400V - 3ph - 50 Hz

Wide support roller track in front - can be moved manually.
Swivelling operating terminal with keyboard and mouse.
Motorised belt bridge.
Extended motorised adjustable run-in line with support rollers.
Swing-away feed guide.
Front feeding device.
Front spraying device.
Diamond pre-milling
Glue bucket with upper melter.
Motorised pressure zone.
Double capsaws.
Gross milling.
Controlled fine milling.
Surface scraper unit.
Sanding unit.

Transport dimensions (l x w x h) : 6800 x 1000 x 1750 mm.
Opening dimensions (l x w x h) : 6880 x 1540 x 2280 mm

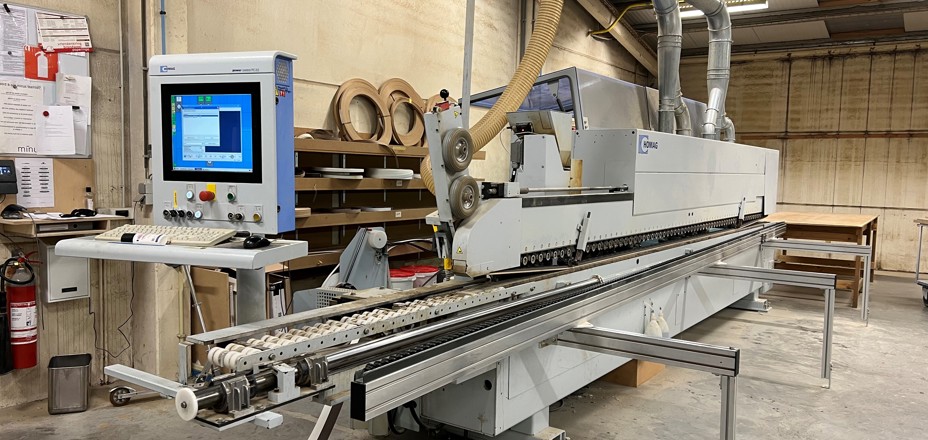

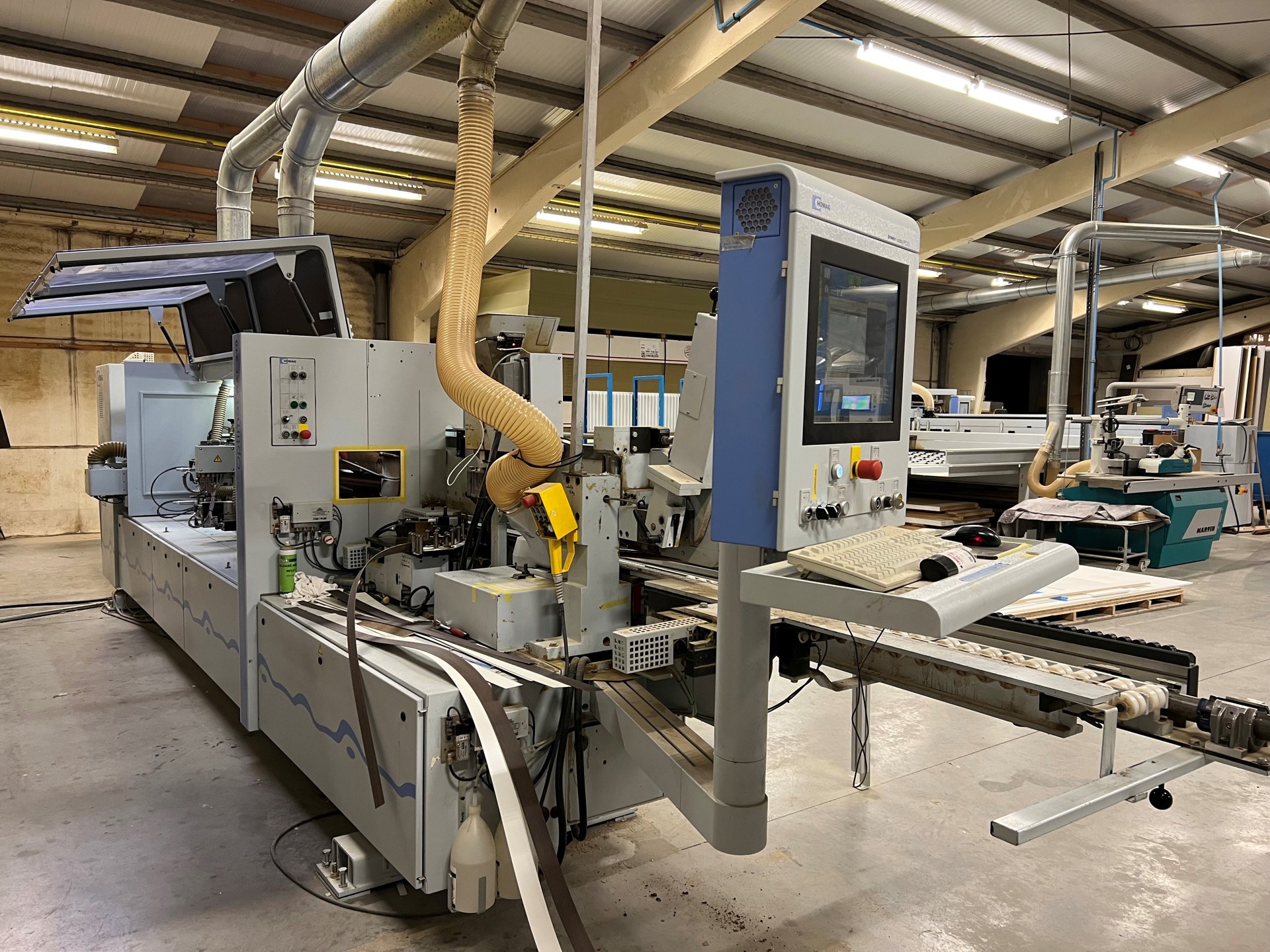

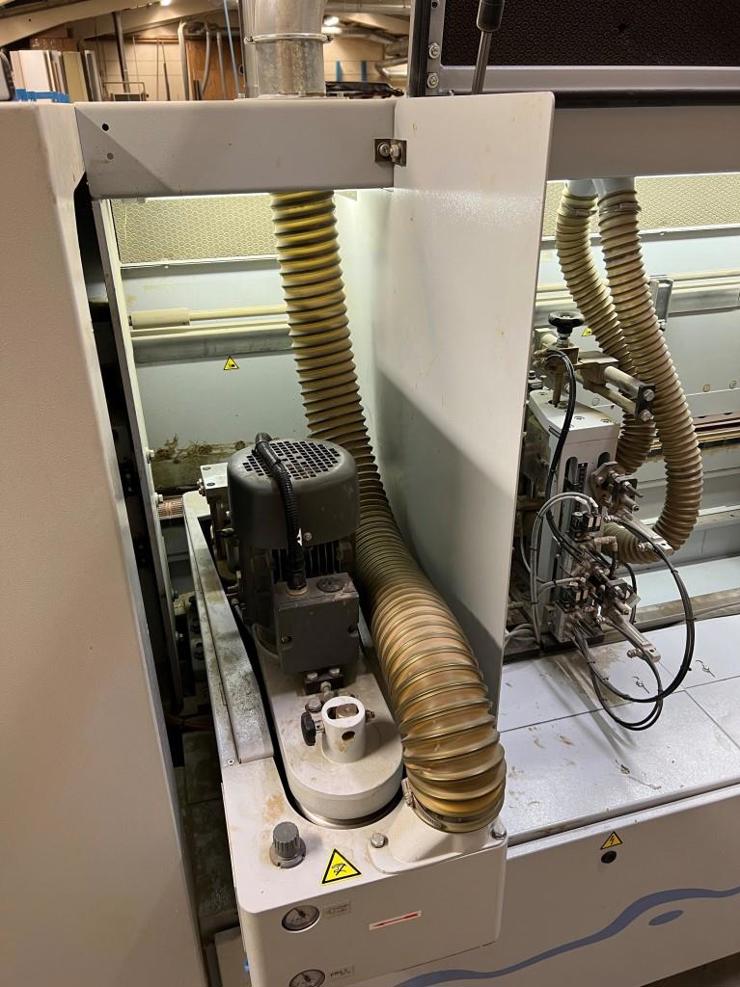

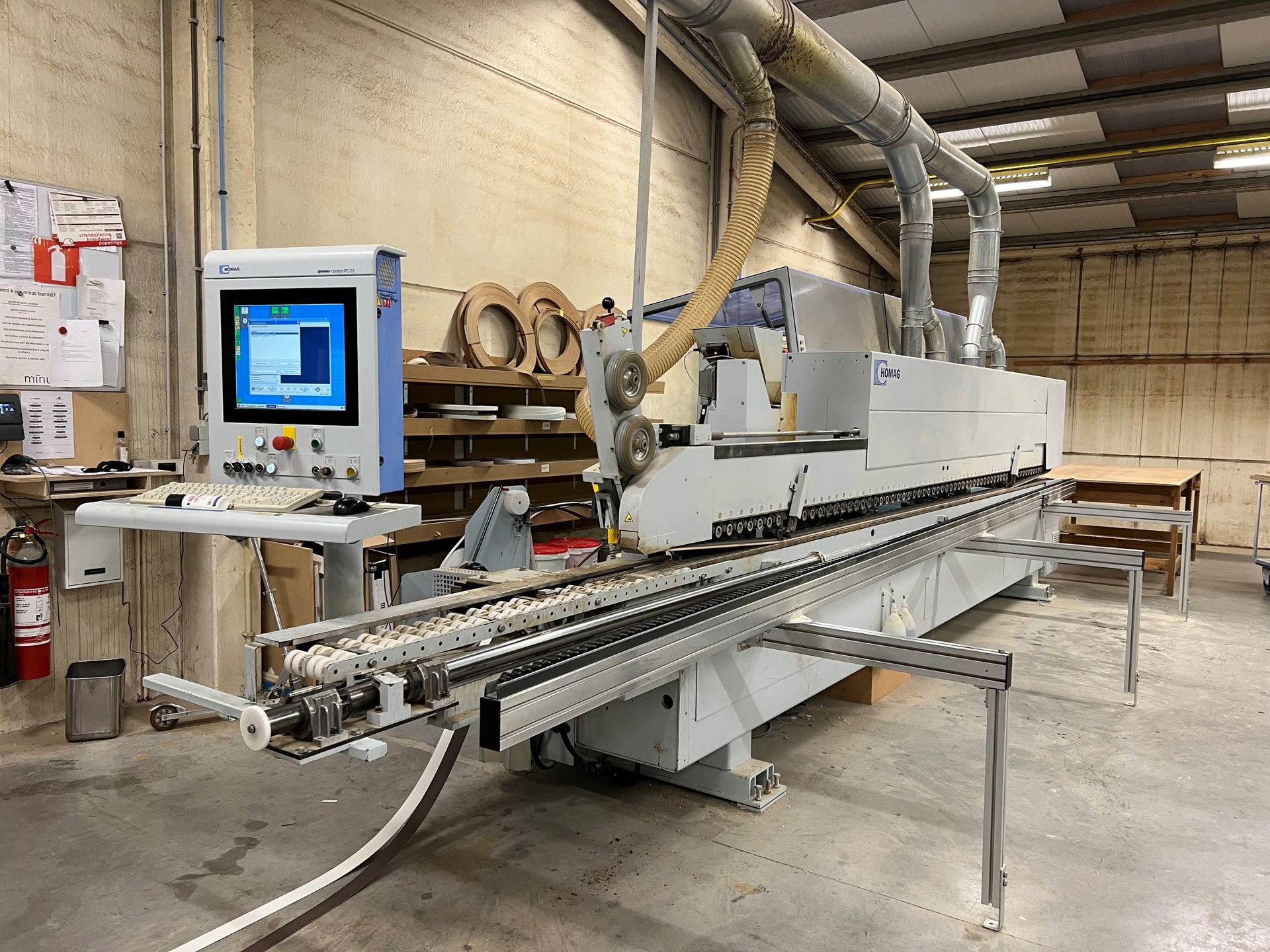

Photo gallery
