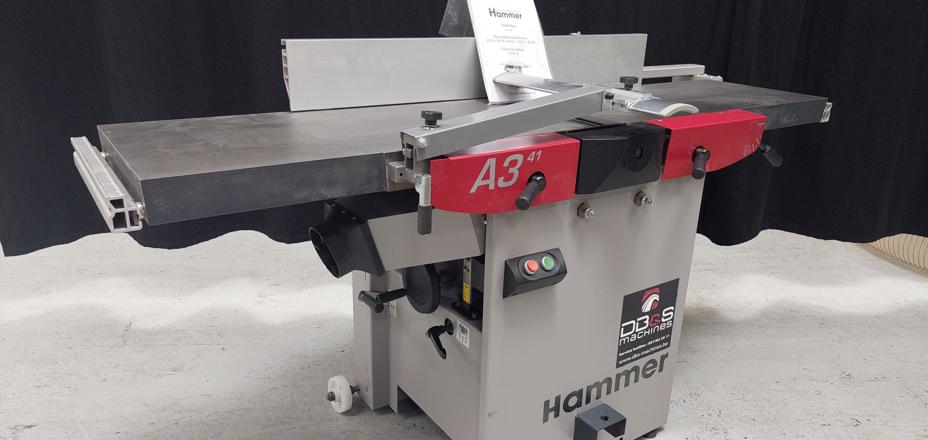

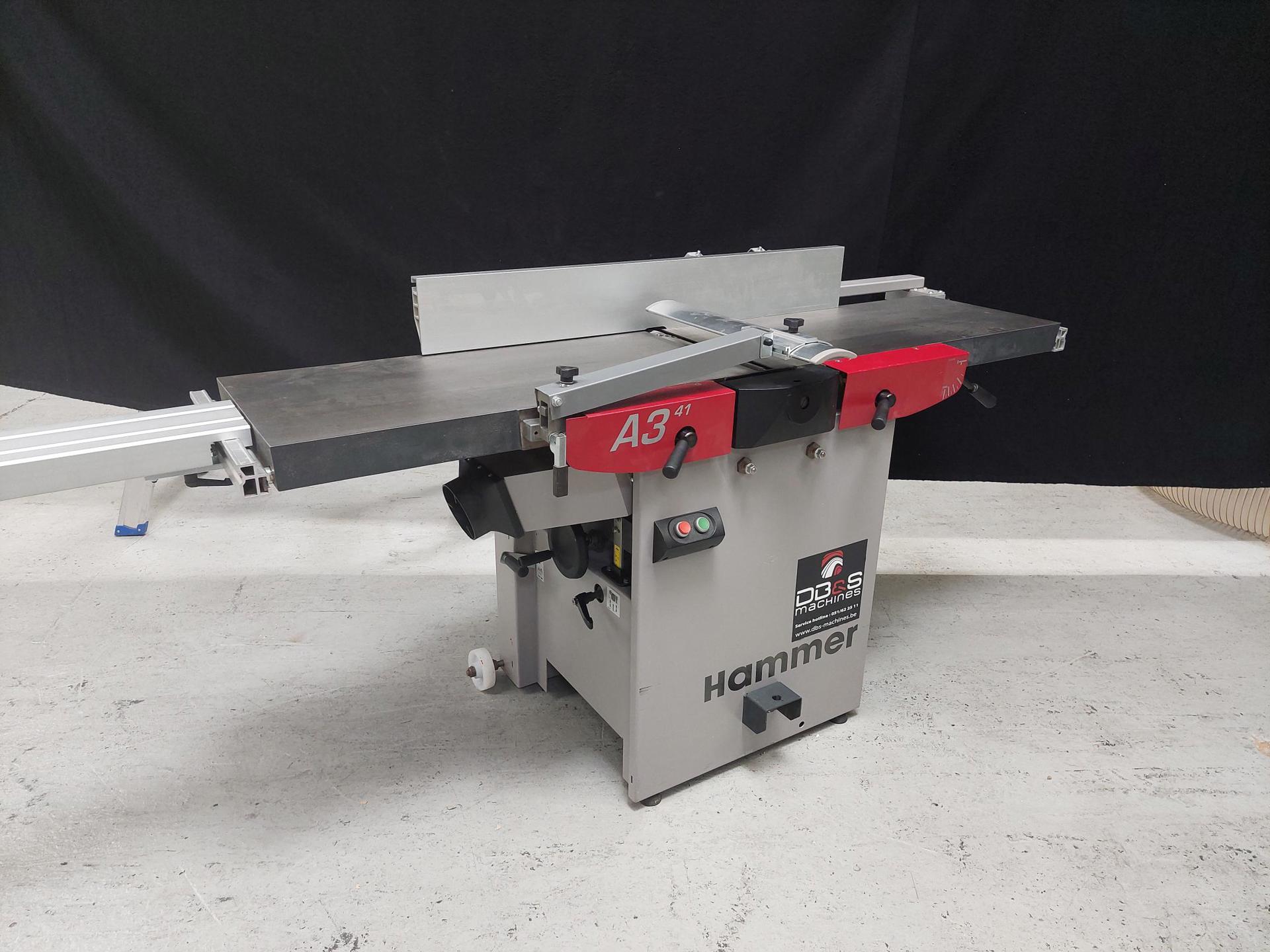

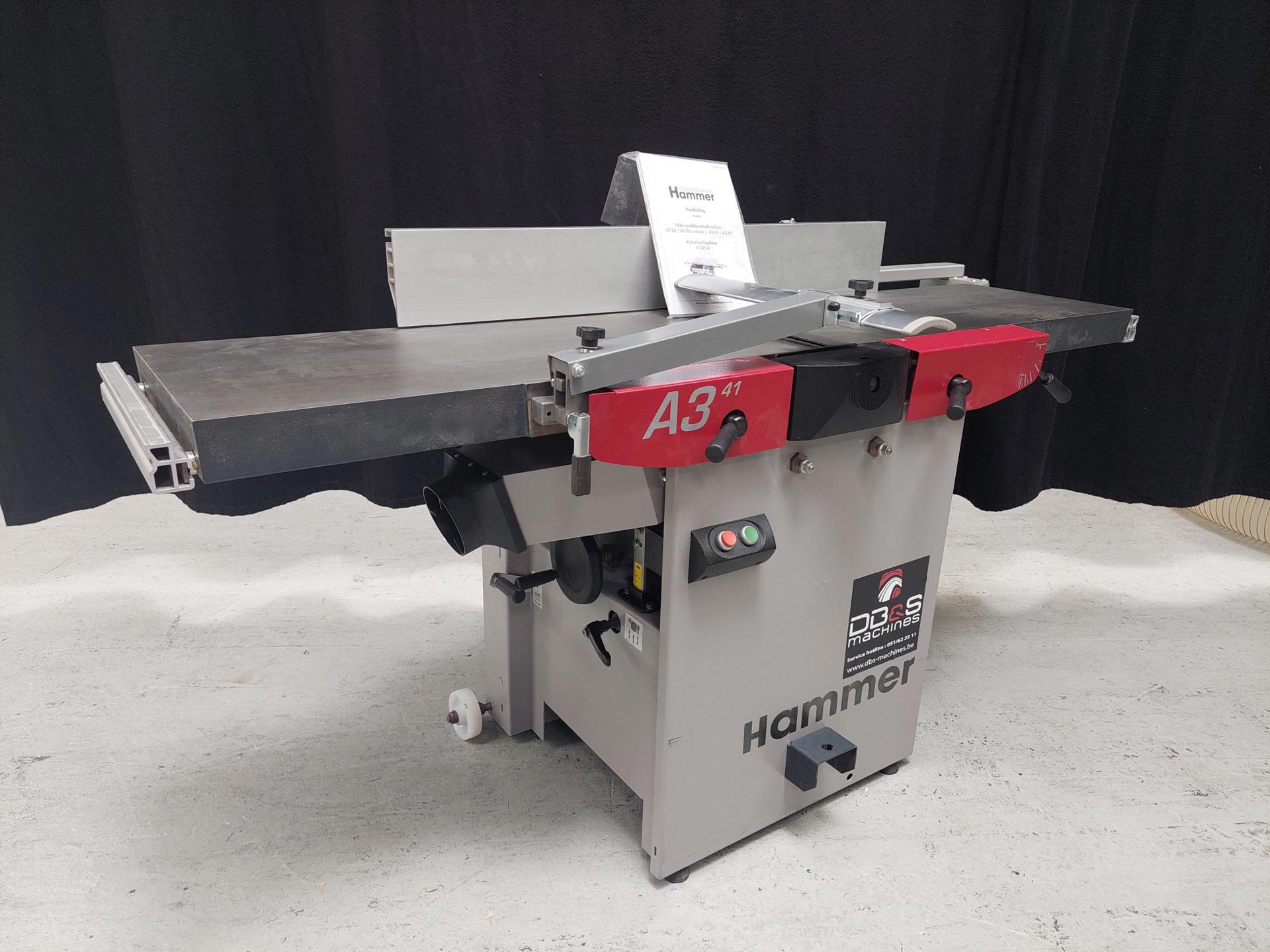

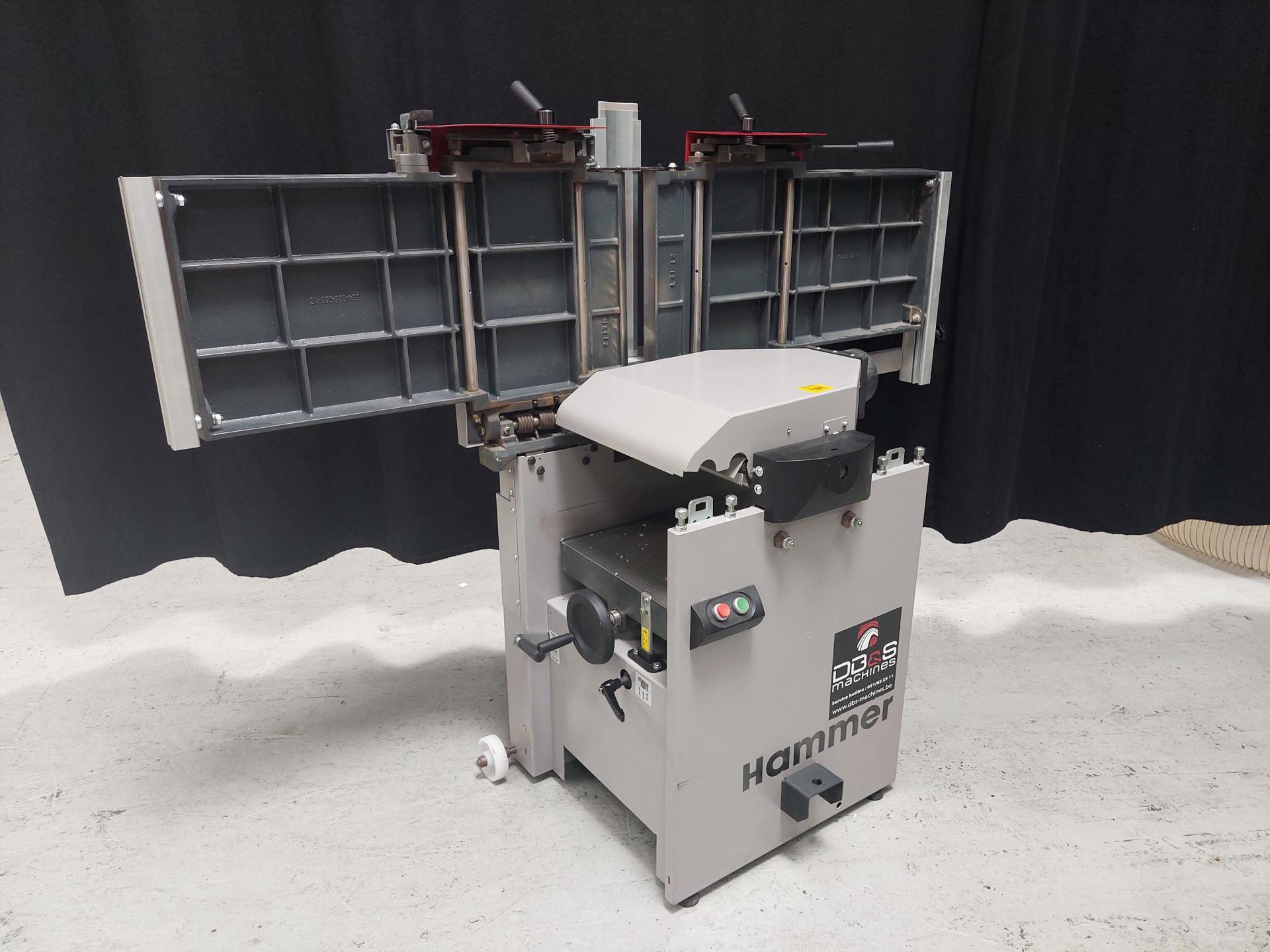

Hammer A3 41 Planer-thicknesser with mortising table
M002895/20250715_162129.jpg?width=928&height=440&bgcolor=fff)
Technical Data
Standard on this planer-thicknesser:
- 5.5 HP 3x400V/CE
- Max. chip removal: 4 mm
- Planer width : 410 mm
- Planing table length : 1800 mm
- Planing fence length : 150 x 1100 mm
- Planing fence swivelling 90°-45°
- Planer thicknessing width : 406 mm
- Planing table length : 600 mm

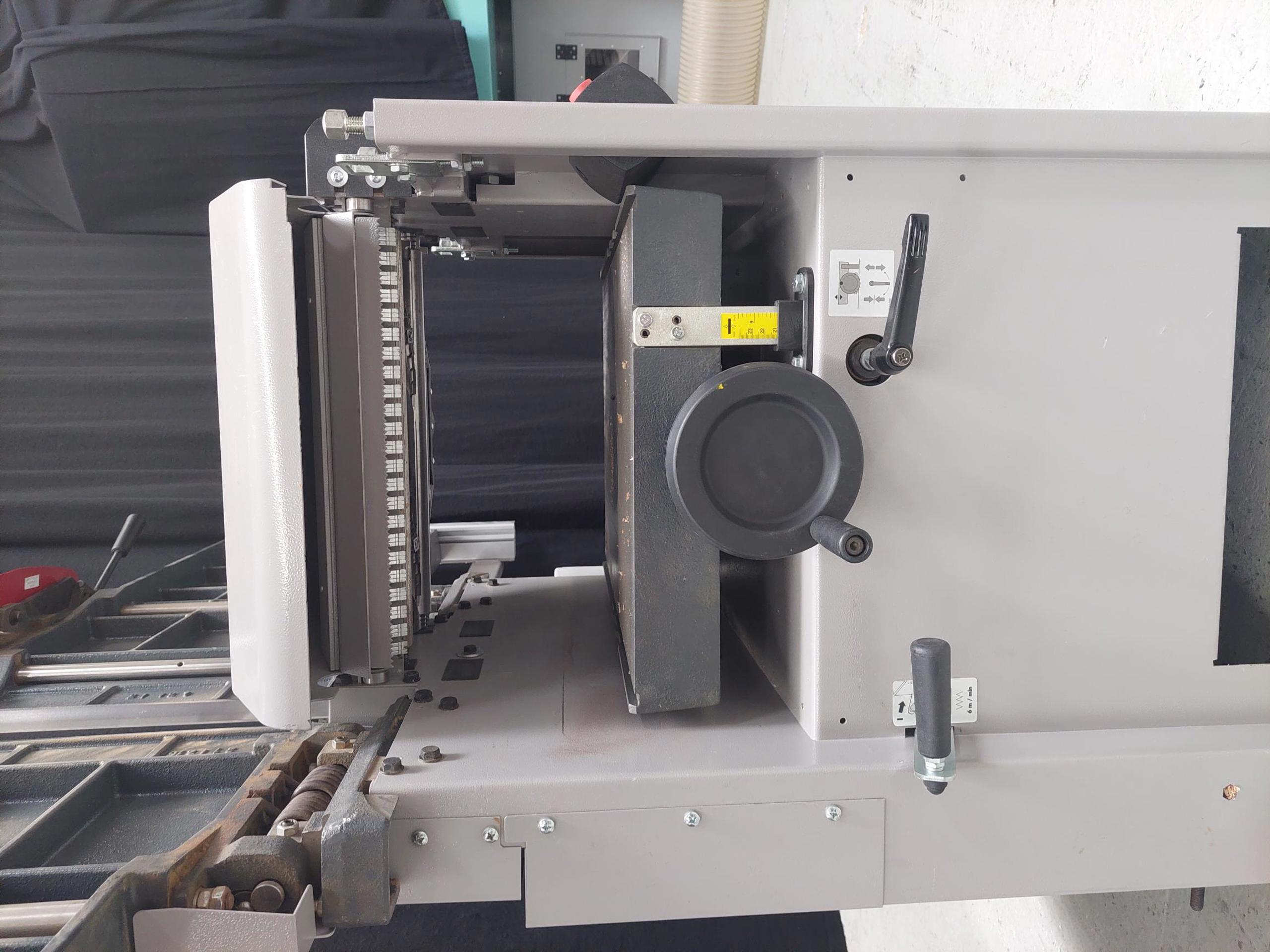

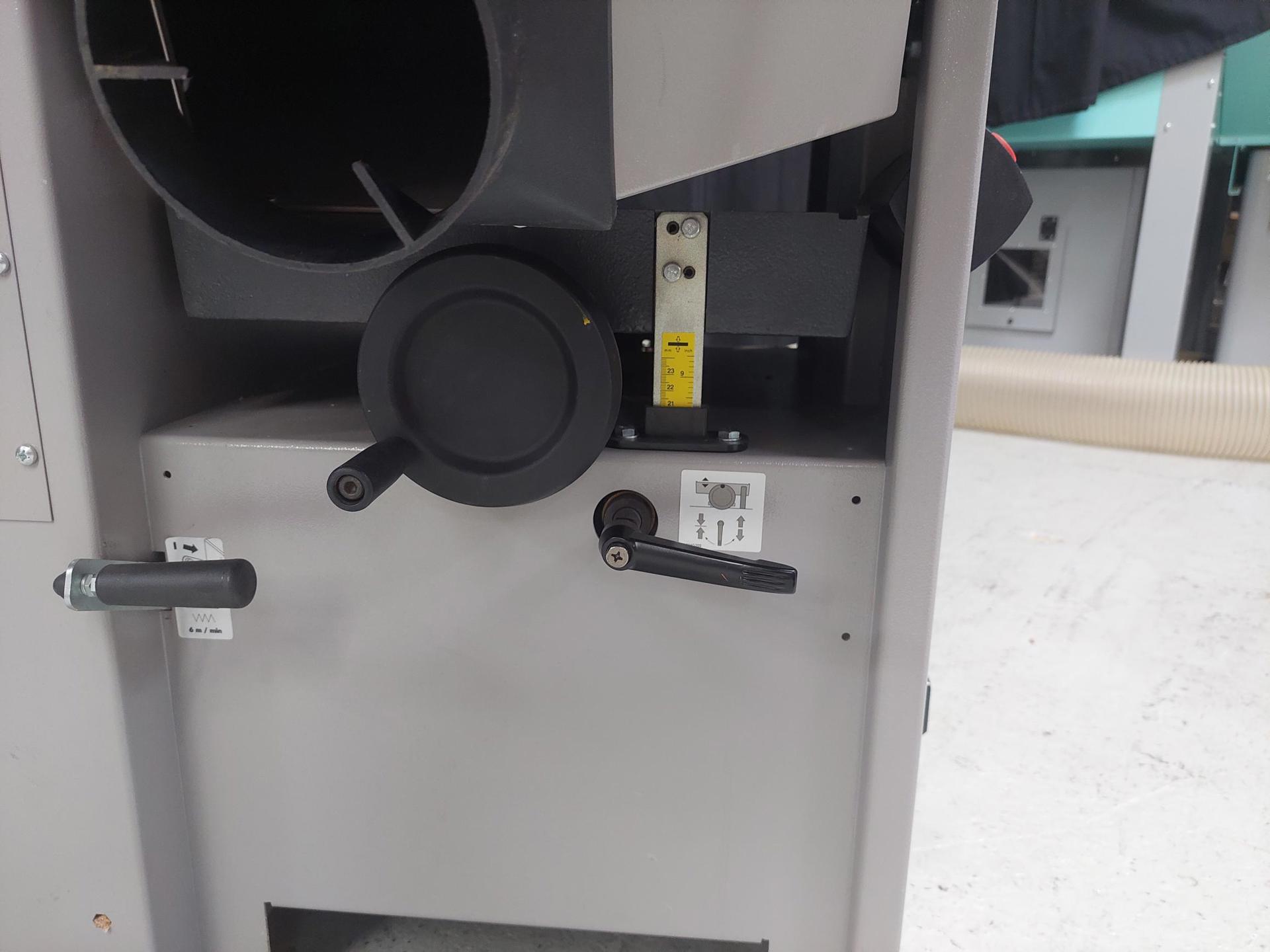

- Planing thicknessing height : 4 - 225 mm
- Synchronous feed drive : 6 m/min.

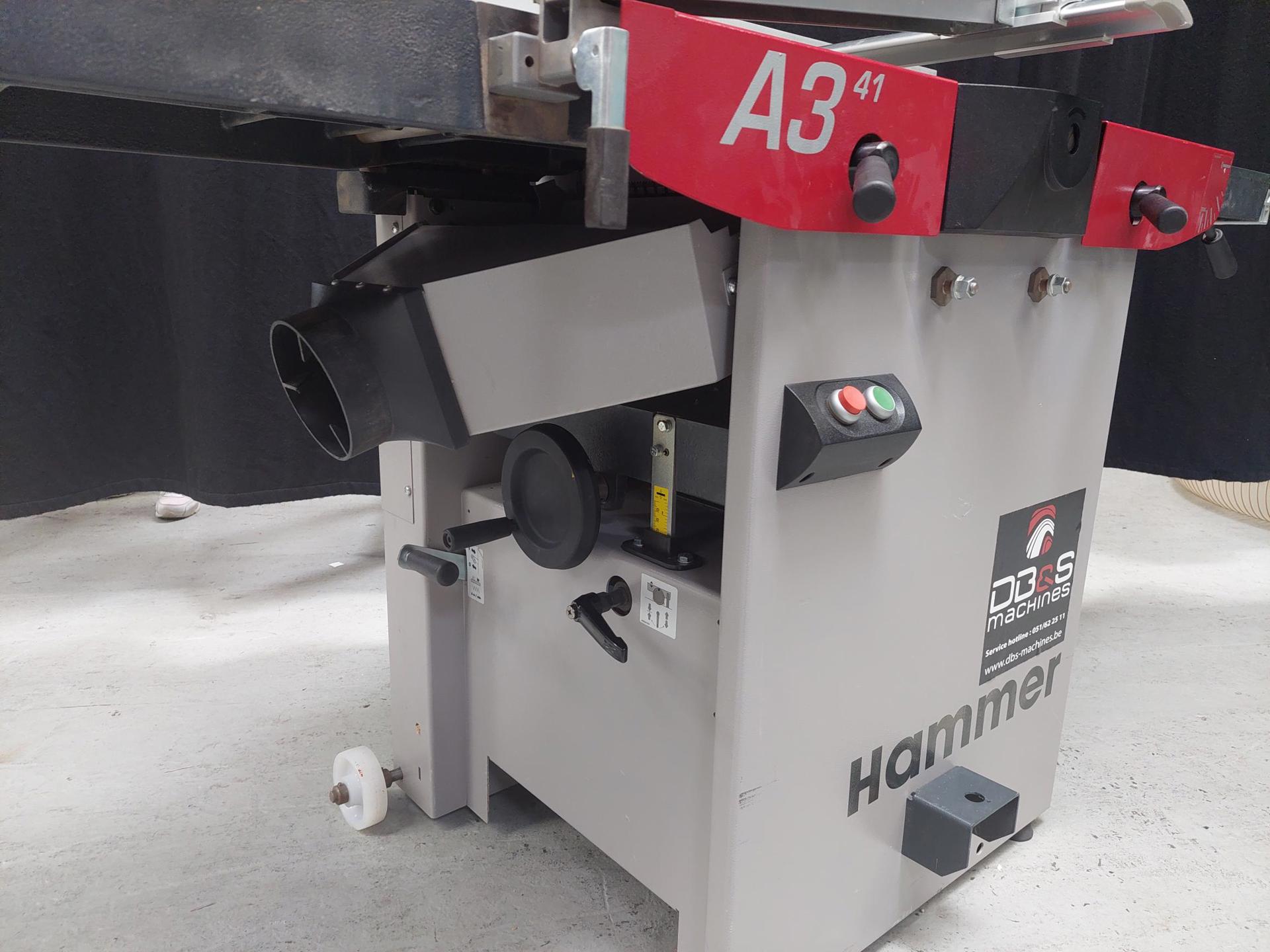

- Suction connection diameter : Ø 120 mm
Options on this planer-thicknesser:

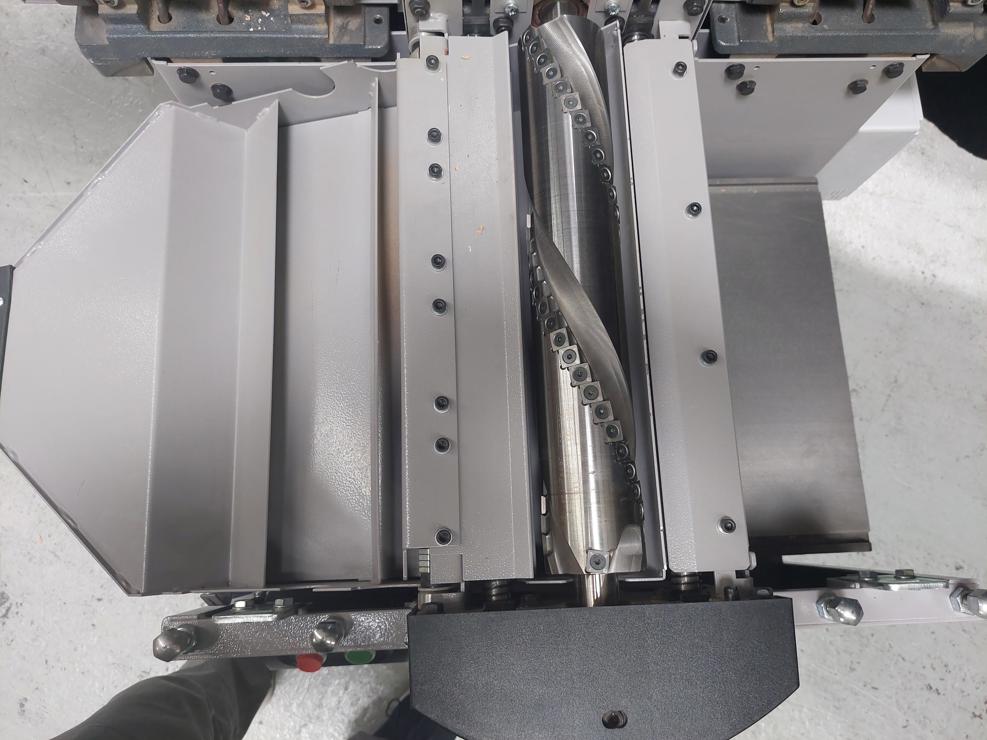

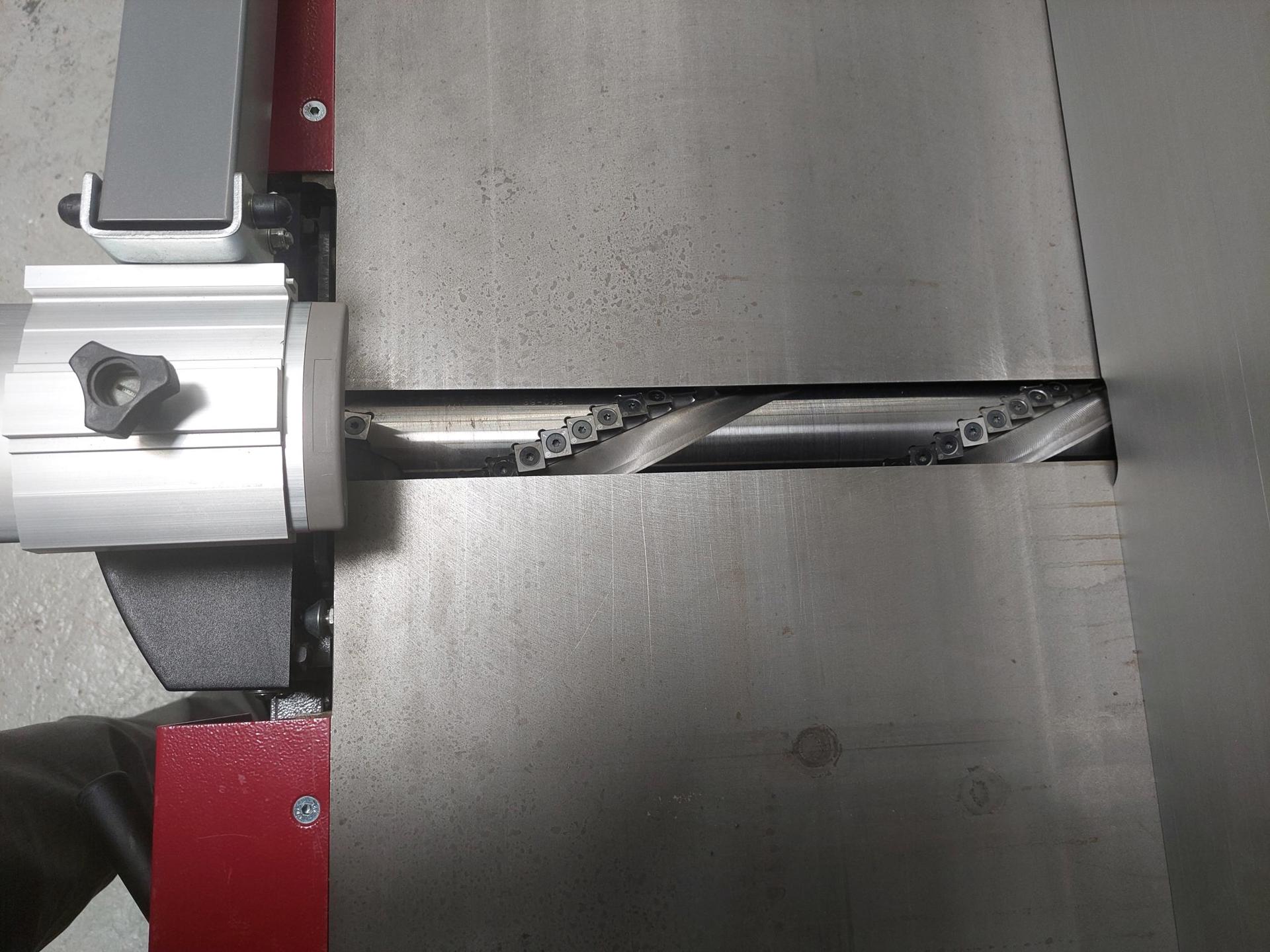

- Silent Power spiral blades
- Travel device (without lifting arm!)
- 2x Mounting rail for table extensions length 410 mm

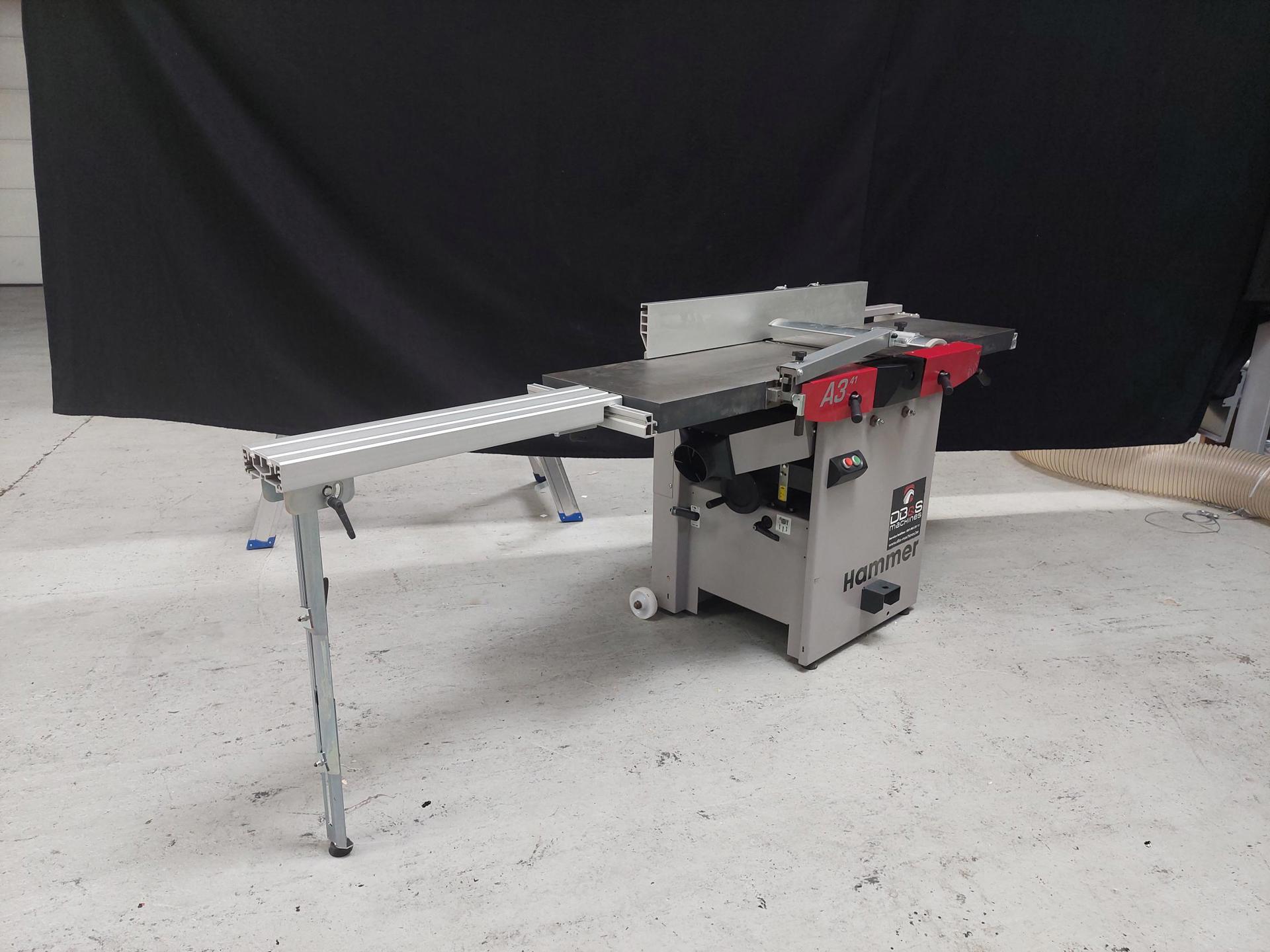

- Aluminium table extension 800 mm x 150 mm with support

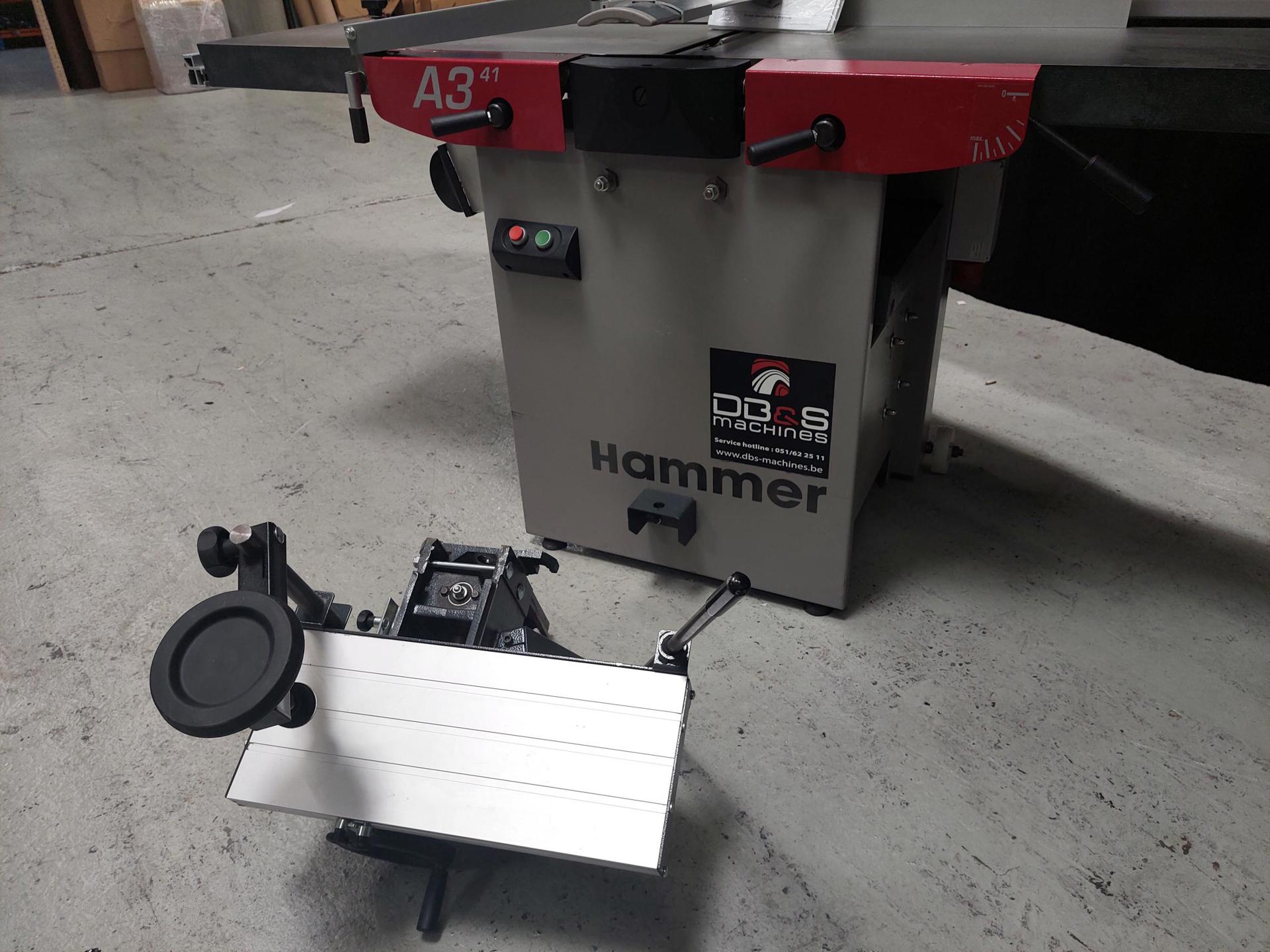

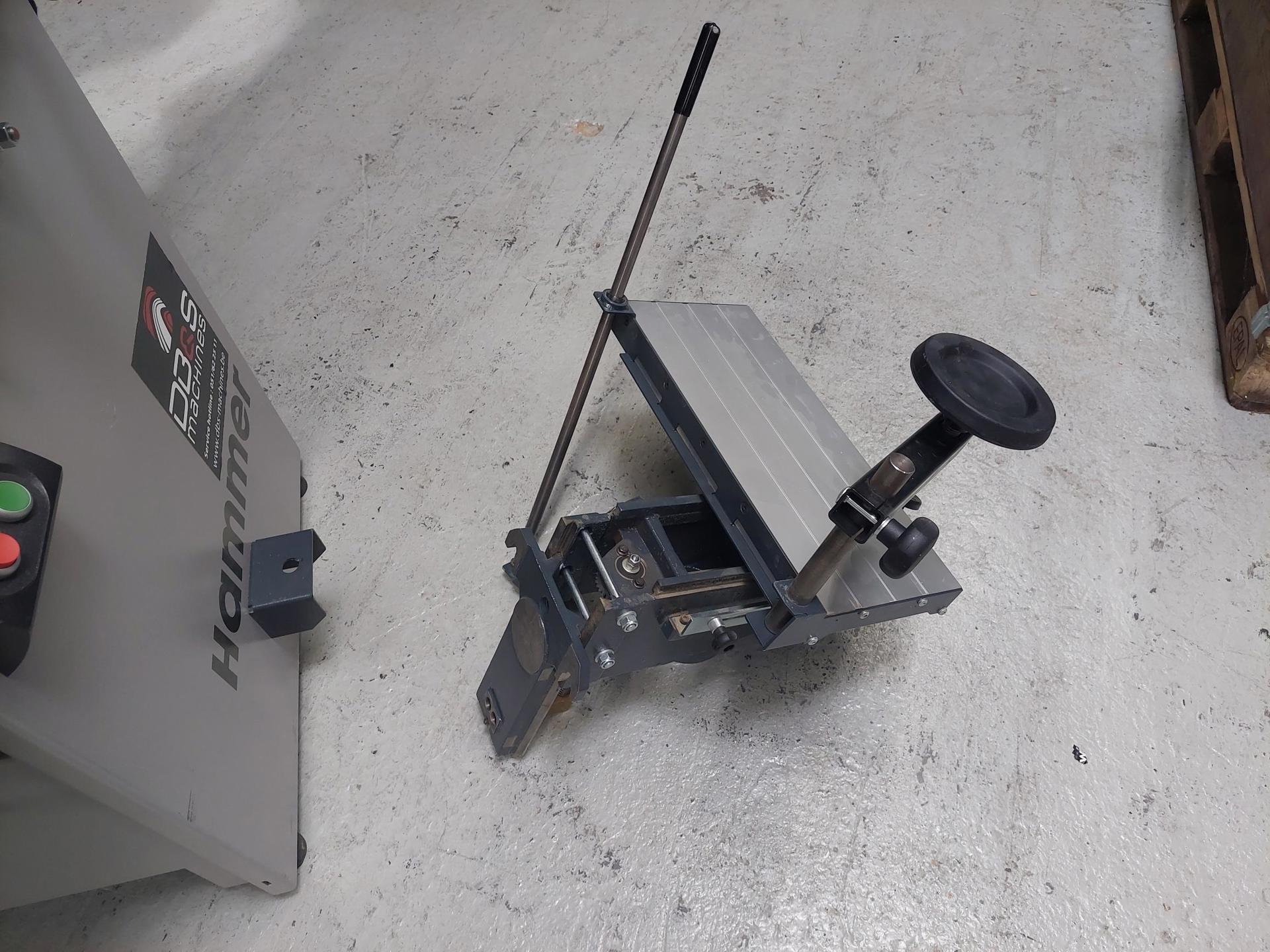

- Mortising table
- Mortising chuck, clamping range 0–16 mm
