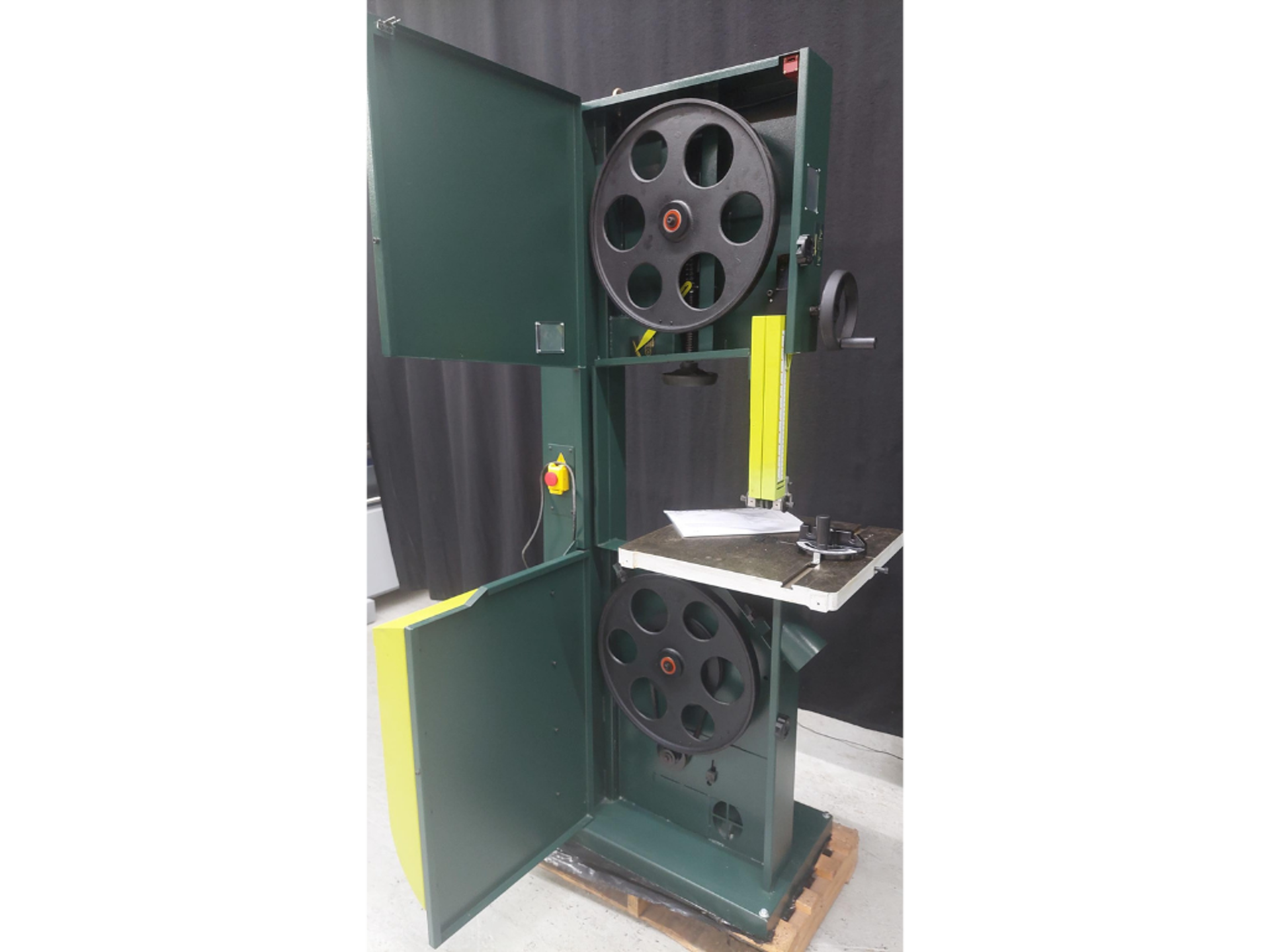

Cast iron balanced wheels with rubber tyres.
Saw blade centred on the wheel.

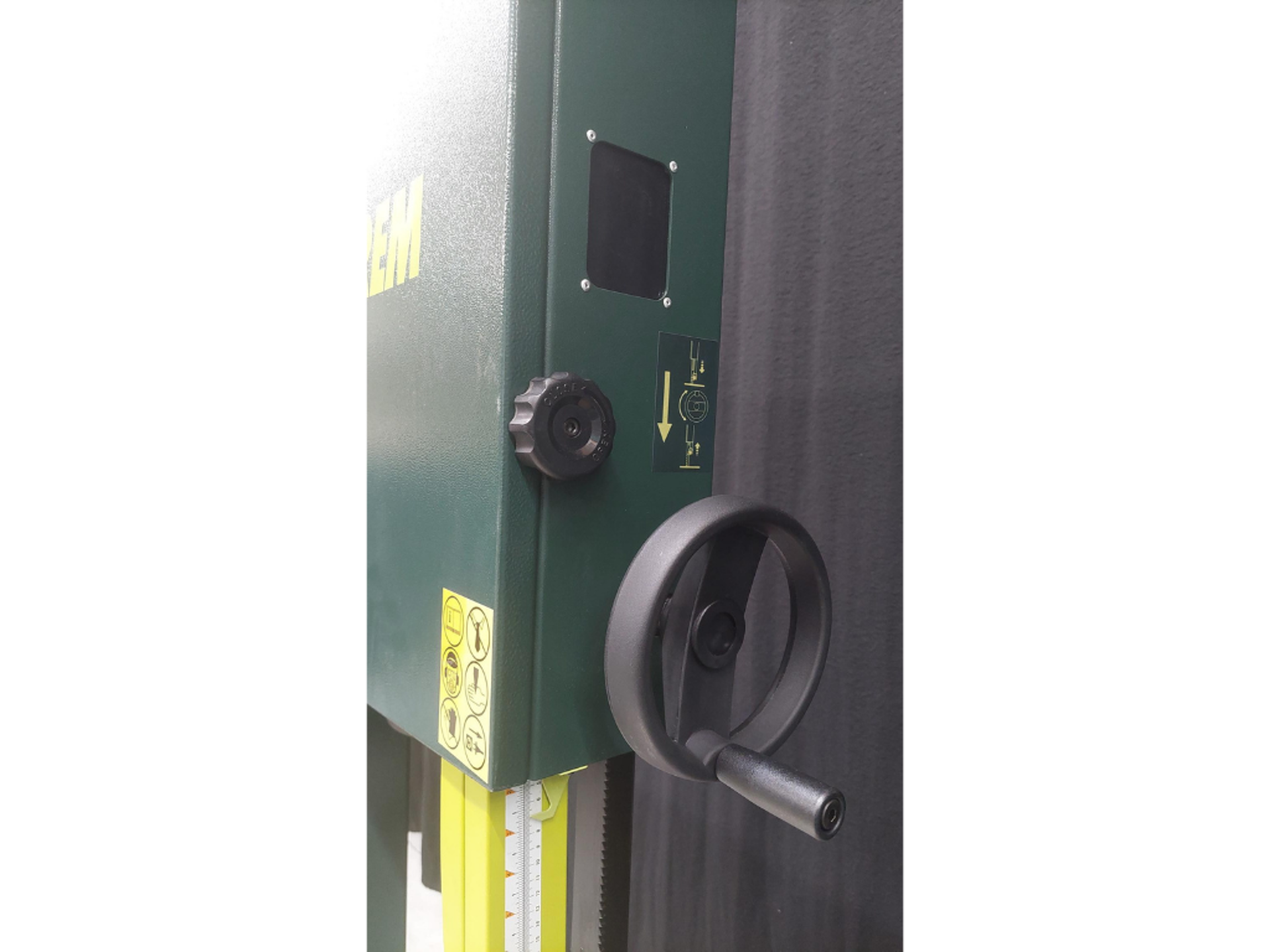

Adjustable alignment of the upper wheel.

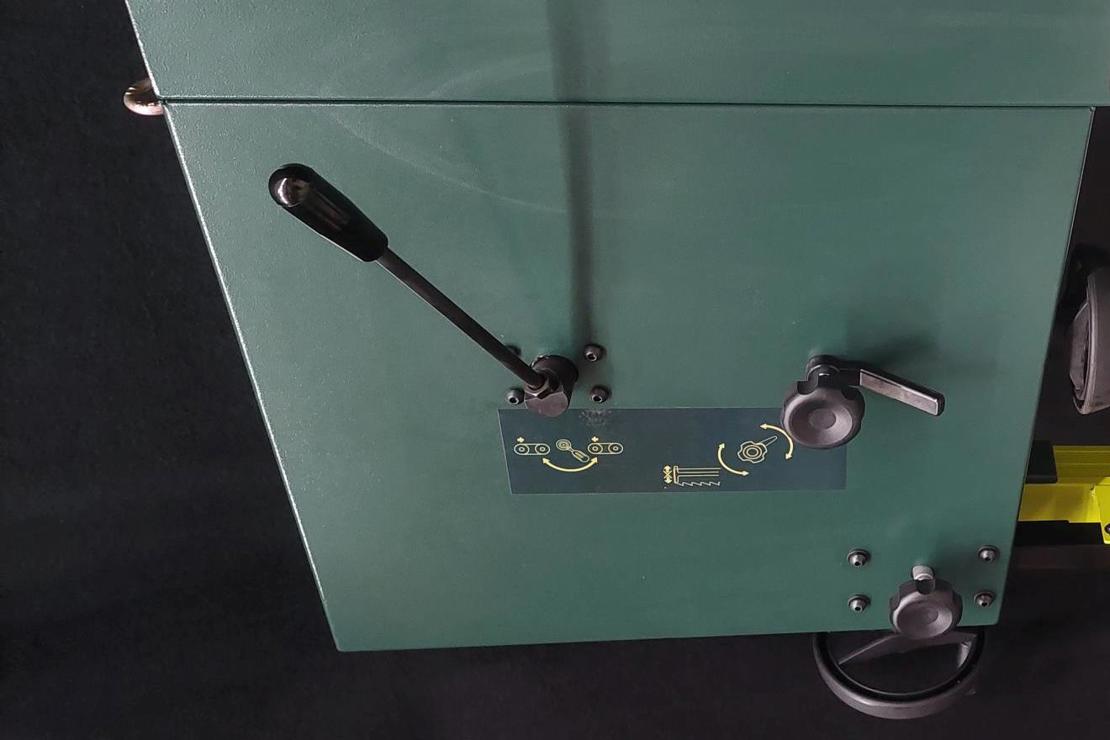

Lever for quick release of the saw blade tension.
Indicator for adjusting the saw blade tension.

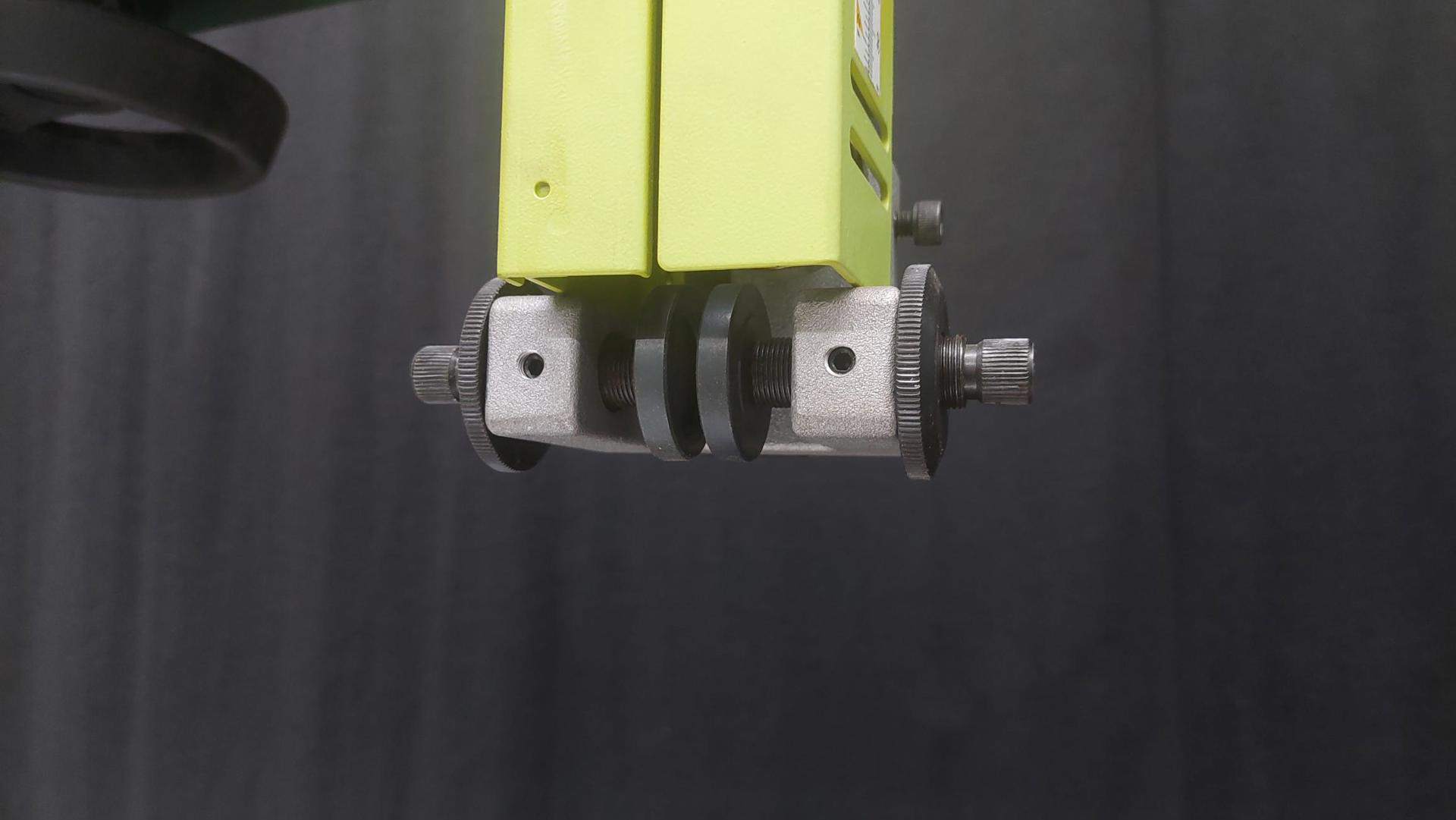

Upper and lower adjustable saw blade guide with flanges.

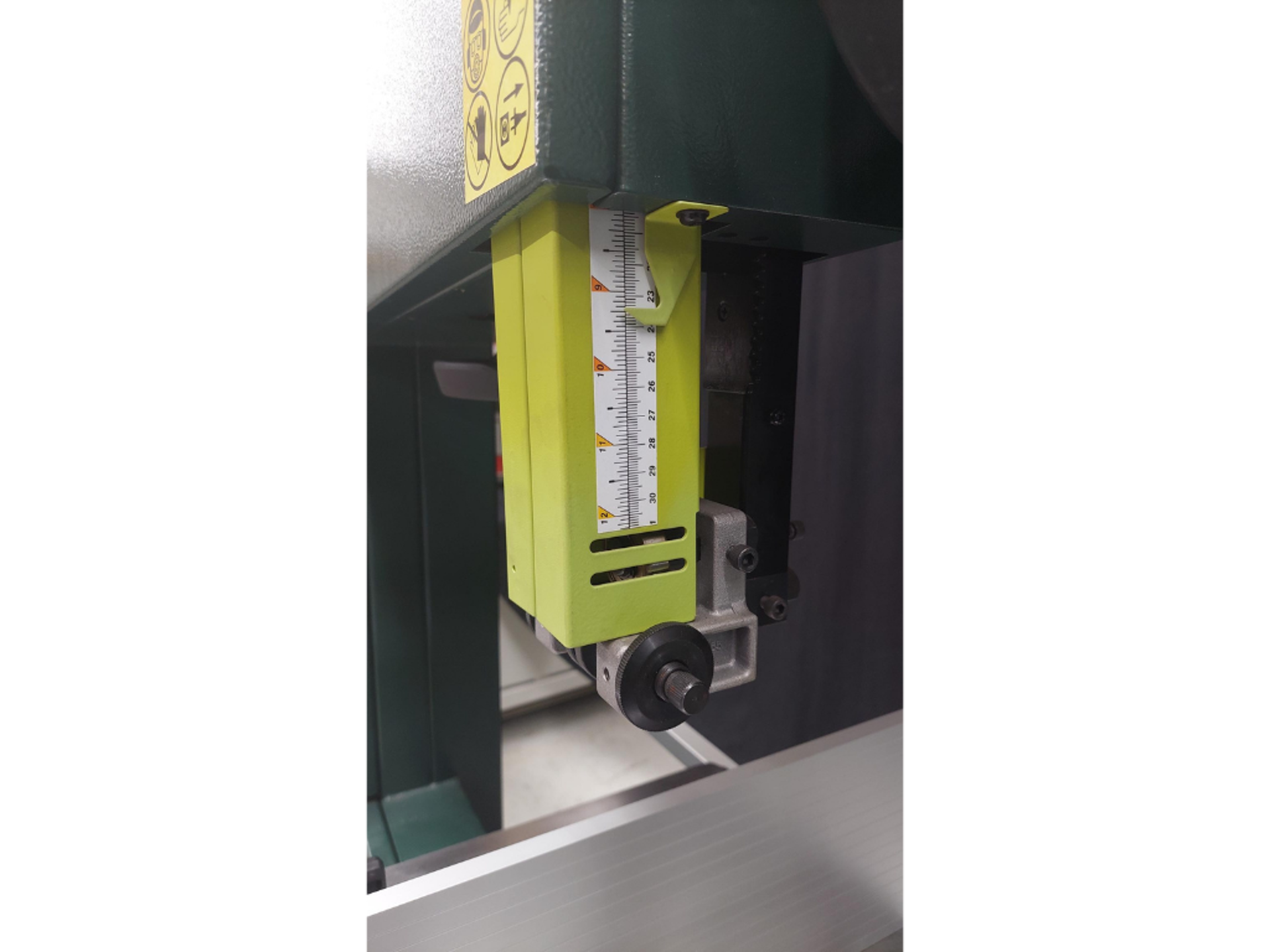

Height-adjustable upper saw blade guide.

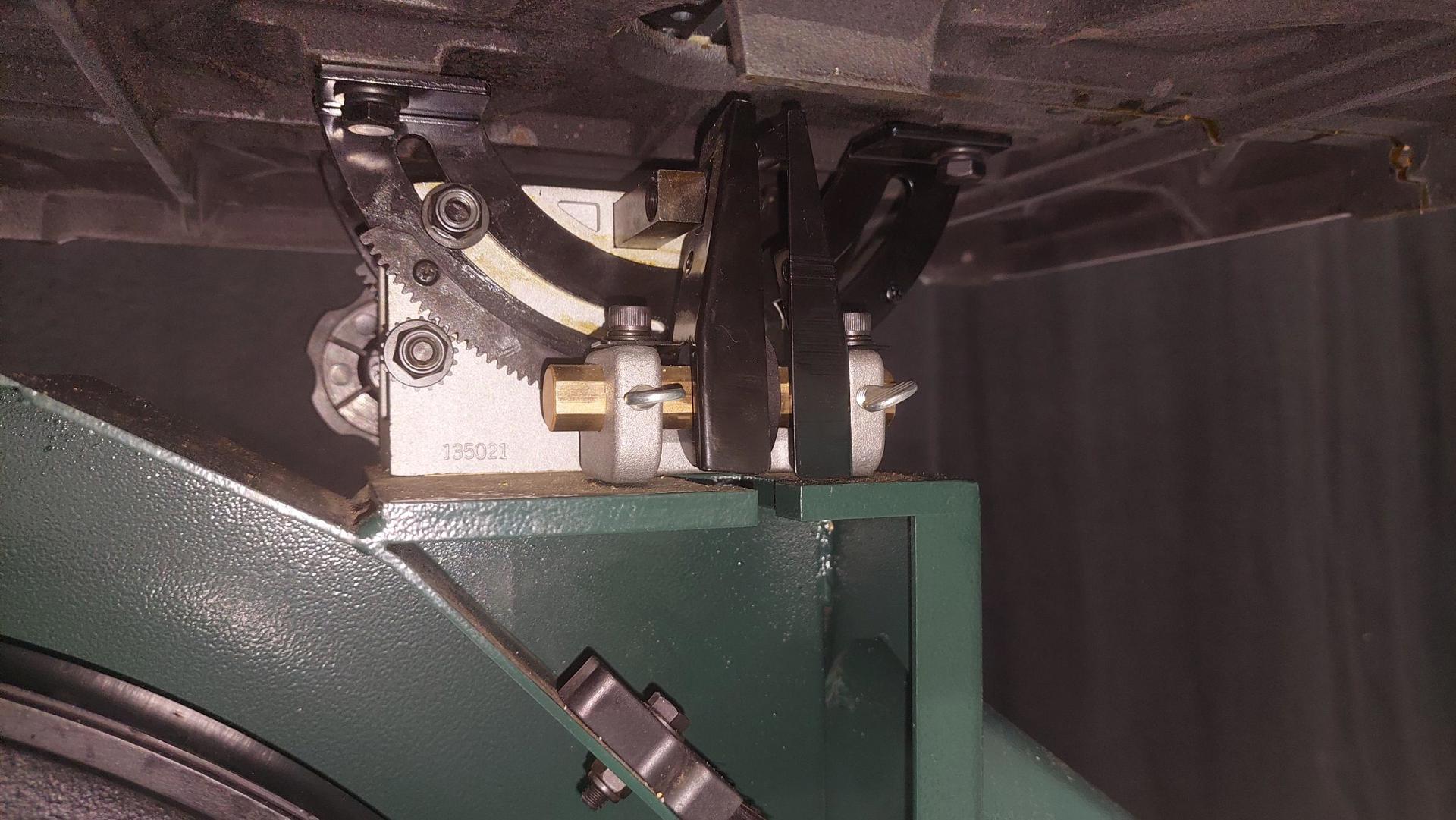

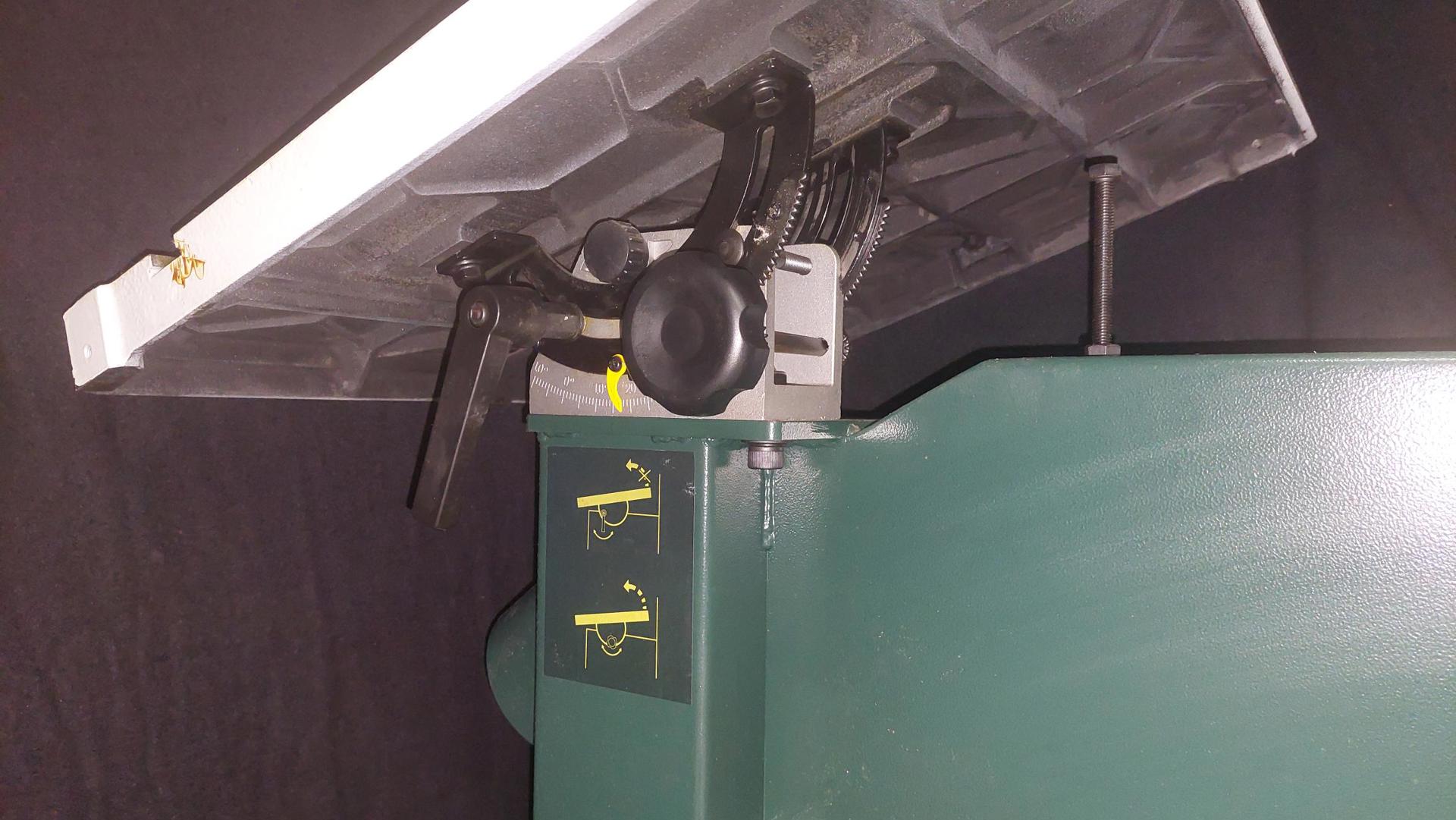

Tilting table.

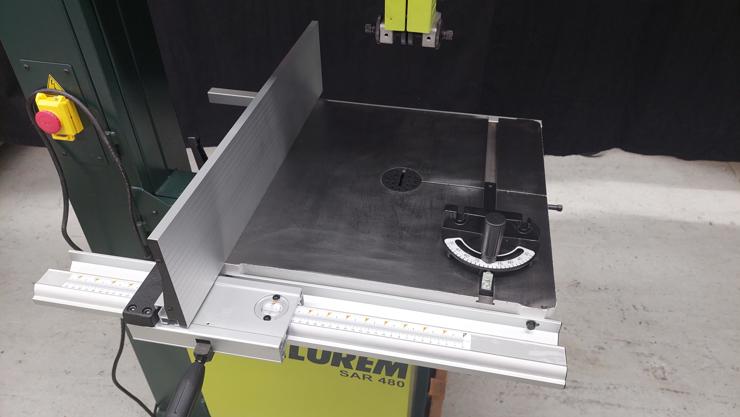

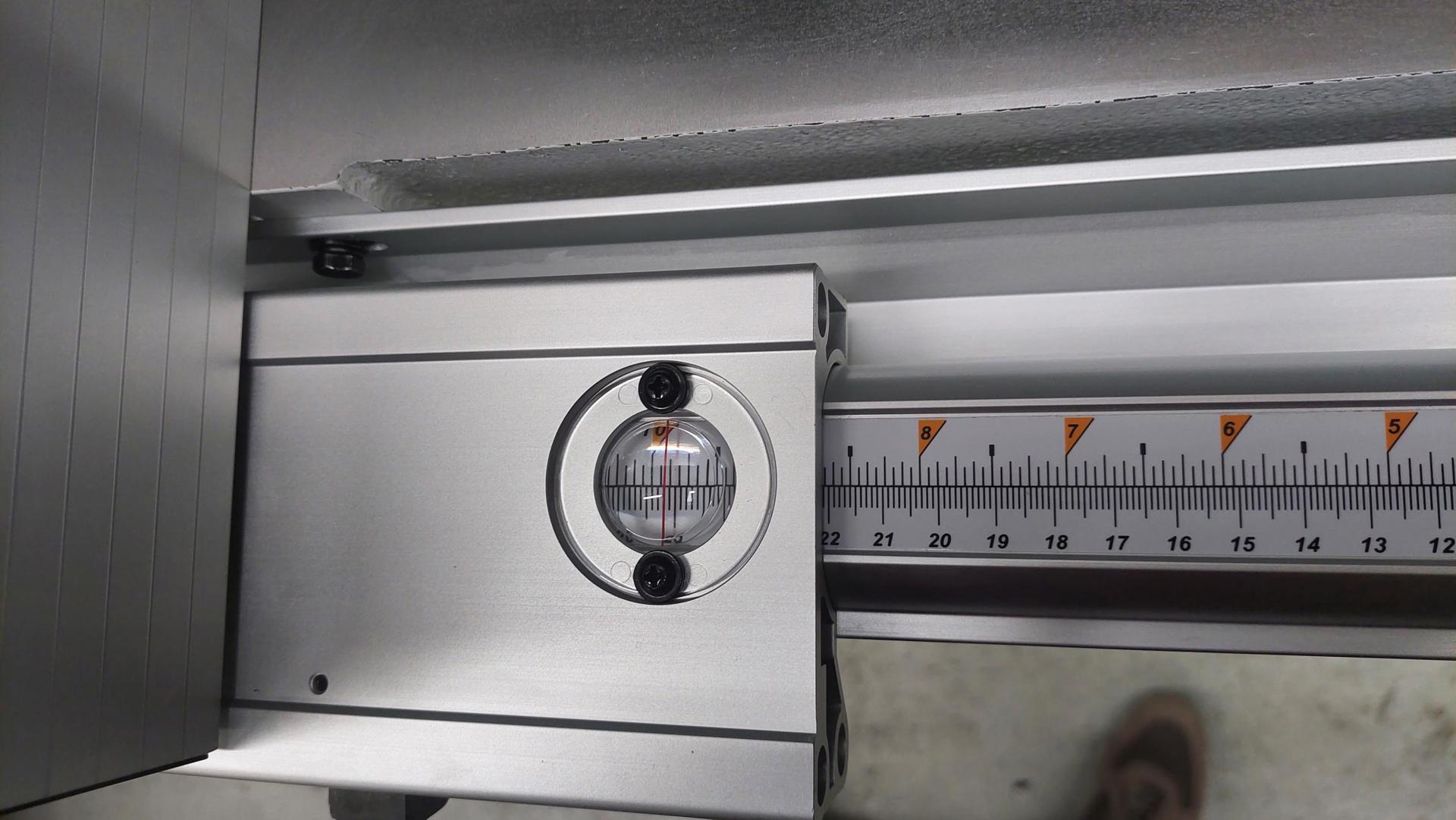

Spacious parallel guide with micrometric adjustment and precision magnifying glass.
Parallel guide can be reversed for machining small workpieces.

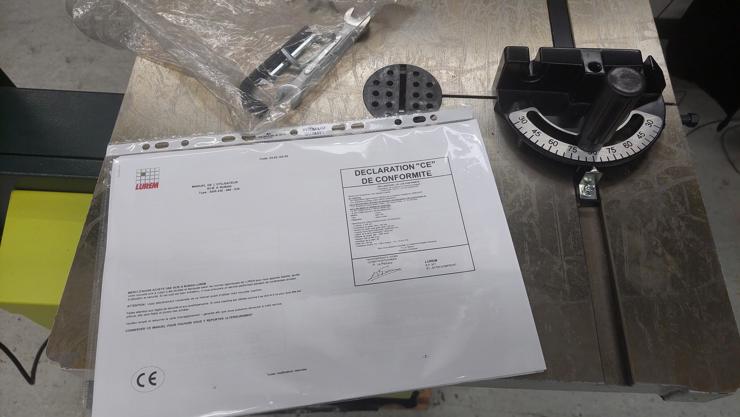

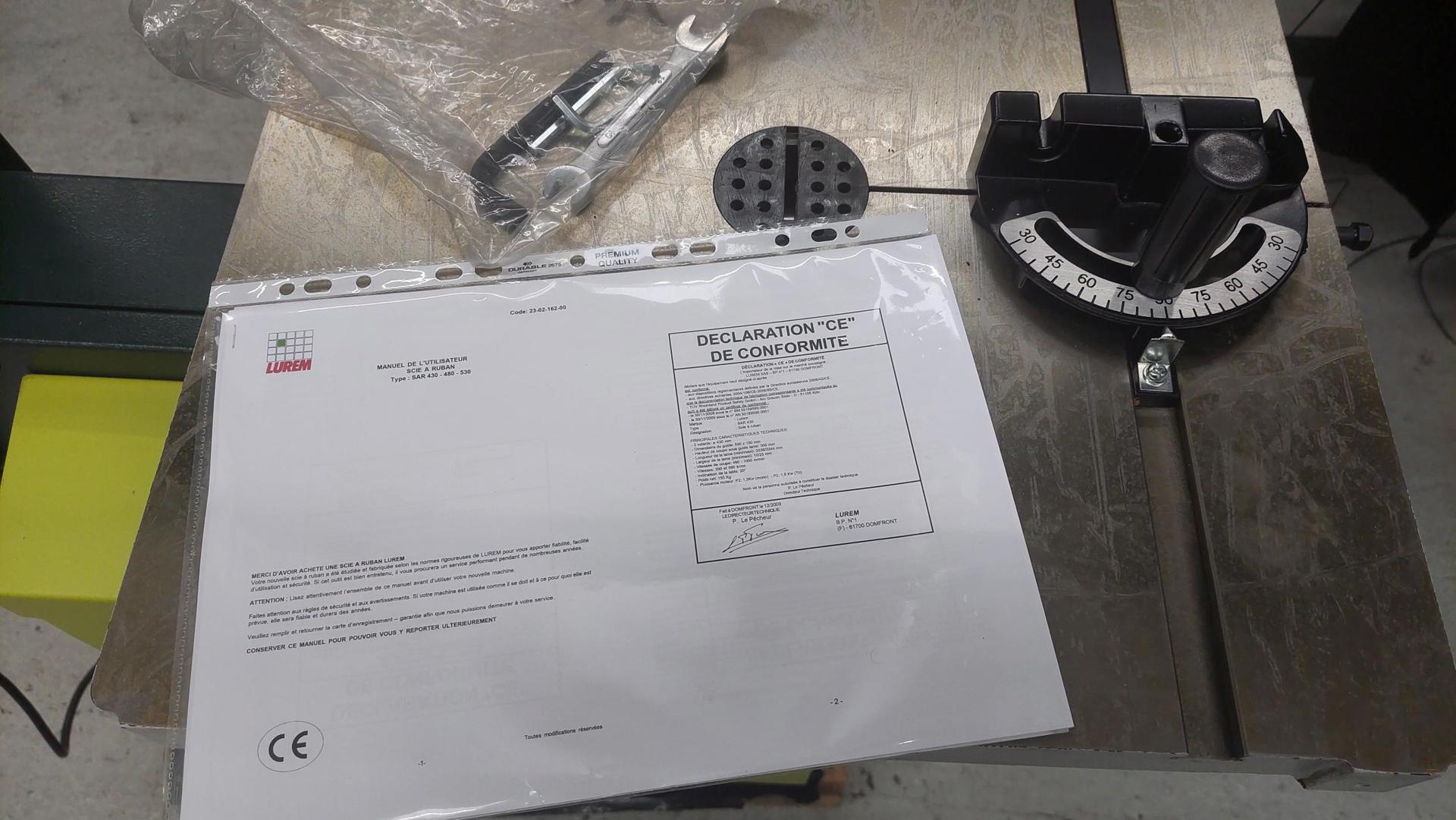

Mitre guide.

Diameter of the guide wheels   481 mm
Max. workpiece width     462 mm
Max. workpiece height      300 mm
Table dimensions     480 x 480 mm
Table tilt     20 °
Min. / Max. saw blade length     3628 / 3636 mm
Min. / Max. Saw blade width     10 / 25 mm
Extraction opening diameter     100 mm
Single-phase motor 230V 50Hz     2.7 hp
Working height     950 mm
Weight     174 kg
