3-assige CNC machine
3-assige CNC-bewerking is een van de meest toegankelijke en veelzijdige vormen van computergestuurde bewerking. Bij dit proces bewegen de snijgereedschappen gecoördineerd langs drie lineaire assen: X, Y en Z.
-

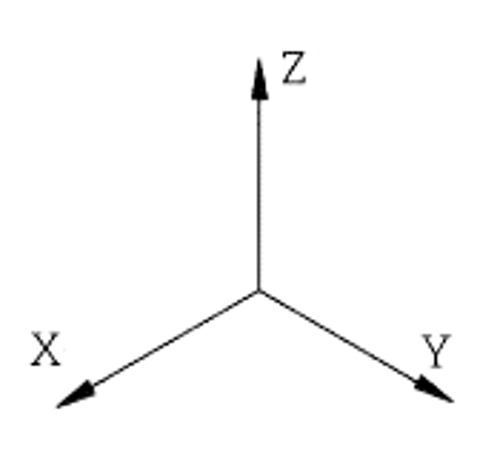

De X-as zorgt voor horizontale zijwaartse bewegingen
-
De Y-as beweegt het gereedschap vooruit en achteruit
-
De Z-as regelt de verticale op- en neergaande beweging
Deze drie assen werken mogelijks gelijktijdig samen (3-assen interpolerend) om 2D- en 3D-vormen en contouren te bewerken. Een 3-assige CNC-machine is uitermate geschikt voor uiteenlopende bewerkingstaken zoals het frezen, het boren en zagen uit te voeren.
Dankzij de precisie van deze machines kunnen hoogwaardig en precies afgewerkte onderdelen en functionele componenten vervaardigd worden uit diverse ruwe materialen. 3-assige CNC-machines zijn dan ook een uitstekende keuze voor zowel prototyping als seriematige productie.
/Vega%205X%20Ultra.png?width=376)
VEGA 5X ULTRA
Pod and rail CNC working center
- 5-axes gantry-drive machine
- Stability and speed at the top thanks to extremely heavy-duty construction and drive motors
- Maximum productivity by intuitive NC-hops user-interface
- Available in X-axis machining lengths 2500 / 3200 / 4500 / 6000 mm
- All working field stop cylinders with sensors for maximum safety
- Equipped as standard with automatic central lubrication, automatic tool length measuring system & rotary tool changer with 12-position servo-controlled with crash-control sensor system
- Ultimate safety with safety systems suitable for every available space in every workshop
/Vega%205x%20Pro%20ok.png?width=376)
VEGA 5X PRO
Pod and rail CNC working center
- 5-axes gantry-drive machine
- Top stability due to extremely heavy construction
- Maximum productivity by intuitive NC-hops user-interface
- Available in X-axis machining lengths 2500 / 3200 / 4500 / 6000 mm
- Equipped as standard with automatic central lubrication, automatic tool length measuring system & rotary tool changer with 12-position servo-controlled with crash-control sensor system
- Ultimate safety with safety systems suitable for every available space in every workshop
/Raptor%205X%20Ultra.png?width=376)
RAPTOR 5X ULTRA
Nesting CNC working center
- Gantry design
- Available in 9 different working-field sizes
- Top stability due to extremely heavy construction
- Maximum productivity by intuitive NC-hops user-interface
- All working field stop cylinders with sensors for maximum safety
- Equipped as standard with drill head, automatic central lubrication, automatic tool length measuring system & rotary tool changer with 12-position servo-controlled with crash-control sensor system
- Manufacturing of individual parts or doors is possible
- Ultimate safety with safety systems suitable for every available space in every workshop
/Raptor%20Ultra%20Lijn.png?width=376)
RAPTOR ULTRA LINE
Nesting CNC productiion line
- Fully automated production line
- Available in 9 different working-field sizes
- Loading, aligning, labelling and unloading
- Effortless handling of full packs of panel material
/Raptor%20ultra%20stand%20alone.png?width=376)
RAPTOR ULTRA
Nesting CNC working center
- Gantry design
- Available in 9 different working-field sizes
- Top stability due to extremely heavy construction
- Maximum productivity by intuitive NC-hops user-interface
- All working field stop cylinders with sensors for maximum safety
- Equipped as standard with drill head, automatic central lubrication, automatic tool length measuring system & rotary tool changer with 12-position servo-controlled with crash-control sensor system
- Manufacturing of individual parts or doors is possible
- Ultimate safety with safety systems suitable for every available space in every workshop
/Go%20Ultra.png?width=376)
GO! ULTRA
Troughfeed CNC working center
- Maximum rentability
- Top AND bottom drilling in run-through
- Stability at its best with its + 4500 kg
- Maximum productivity by intuitive NC-hops user-interface
/Extreem%20Line%20Stand-Alone.png?width=376)
EXTREME ULTRA
CNC nesting working center
- Gantry design
- Available in 9 different working-field sizes
- Top stability due to extremely heavy construction
- Maximum productivity by intuitive NC-hops user-interface
- All working field stop cylinders with sensors for maximum safety
- Equipped as standard with drill head, automatic central lubrication, automatic tool length measuring system & rotary tool changer with 8-position servo-controlled with crash-control sensor system
- Manufacturing of individual parts or doors is possible
- Ultimate safety with safety systems suitable for every available space in every workshop
/Extreme%20ultra%20Line.png?width=376)
EXTREME ULTRA LINE
Nesting CNC productionline
- Fully automated production line
- Available in 9 different working-field sizes
- Loading, aligning, labelling and unloading
- Effortless handling of full packs of panel material
/Beta.png?width=376)
BETA PS03
Professional beam saw
- Working dimension 3200x3200 / 3800x3800 / 4200x4200mm
- Cutting depth 55 mm - Sawblad projection 70 mm
- Main saw motor 9 kW
/Go!1300-M%20ATC.png?width=376)
GO! 1300 M-ATC
Compact CNC working center
- Maximum return on a limited number of m²
- Stability at its best with its + 2500 kg
- Maximum productivity by intuitive NC-hops user-interface
- 4-sided calibration for perfect customized fit
- Full flexibility in tool changes
/Vega%20Ultra.png?width=376)
VEGA ULTRA 1600
Pod and rail CNC working center
- Gantry design
- Top stability due to extremely heavy construction
- Maximum productivity by intuitive NC-hops user-interface
- Available in X-axis machining lengths 2500 / 3200 / 4500 / 6000 mm
- All working field stop cylinders with sensors for maximum safety
- Equipped as standard with central lubrication, automatic tool length measuring system & tool changer with crash-control sensor system
- Ultimate safety with safety systems suitable for every available space in every workshop
/Go!1300-M.png?width=376)
GO! 1300 M
Compact CNC working center
- Maximum return on a limited number of m²
- Stability at its best with its + 2500 kg
- Maximum productivity by intuitive NC-hops user-interface
- 4-sided calibration for perfect customized fit
/Supernova.png?width=376)
SUPER NOVA
CNC nesting working center
- Gantry design
- Available in 9 different working-field sizes
- Maximum productivity by intuitive NC-hops user-interface
- Equipped as standard with drill head, central lubrication, automatic tool length measuring system & rotary tool changer with 8-position servo-controlled with crash-control sensor system
- Manufacturing of individual parts or doors is possible
- Ultimate safety with safety systems suitable for every available space in every workshop
/Super%20nova%203D%20tekening%20Nestinglijn.png?width=376)
SUPER NOVA LINE
Nesting CNC production line
- Fully automated production line
- Available in 9 different working-field sizes
- Loading, aligning, labelling and unloading
- Effortless handling of full packs of panel material
BETA PS04
Professional beam saw
- Working dimension 3200x3200 / 3800x3800 / 4200x4200mm
- Cutting height 75mm - Sawblade projection 90mm
- Main saw motor 11 kW
VEGA ULTRA 1300
Pod and rail CNC working center
- Gantry design
- Top stability due to extremely heavy construction
- Maximum productivity by intuitive NC-hops user-interface
- Available in X-axis machining lengths 2500 / 3200 / 4500 / 6000 mm
- All working field stop cylinders with sensors for maximum safety
- Equipped as standard with central lubrication, automatic tool length measuring system & tool changer with crash-control sensor system
- Ultimate safety with safety systems suitable for every available space in every workshop
/Flexa%20Pro.png?width=376)
FLEXA PRO
Nesting CNC working center
- Gantry design
- Available in 6 different working-field sizes
- Maximum productivity by intuitive NC-hops user-interface
- Equipped as standard with central lubrication, automatic tool length measuring system & tool changer with crash-control sensor system
- Manufacturing of individual parts or doors is possible
- Ultimate safety with safety systems suitable for every available space in every workshop
/Alpha.png?width=376)
ALPHA PS03
Industrial beam saw
- Working dimension 3300x3300 / 3900x3900 / 4300x4300mm
- Cutting depth 55 mm - Sawblad projection 70 mm
- Main saw motor 11 kW
- Steel saw table (top of machine frame)
- Double plate clamps
- Servo-controlled stepless cutting height adjustment
/Vega%20Pro.png?width=376)
VEGA PRO
Pod and rail CNC working center
- Gooseneck-type machine (open at the front)
- Top stability due to extremely heavy construction
- Maximum productivity by intuitive NC-hops user-interface
- Available in X-axis machining lengths 2500 / 3200 / 4500 / 6000 mm
- Equipped as standard with automatic central lubrication, automatic tool length measuring system & rotary tool changer with 8-position servo-controlled with crash-control sensor system
- Ultimate safety with safety systems suitable for every available space in every workshop
/Go!1300.png?width=376)
GO! 1300
Compact CNC working center
- Maximum return on a limited number of m²
- Stability at its best with its + 2500 kg
- Maximum productivity by intuitive NC-hops user-interface
/Sirius%20M%20ATC.png?width=376)
SIRIUS 950 M-ATC
Compact CNC working center
- Maximum return on a limited number of m²
- Maximum productivity by intuitive NC-hops user-interface
- 3-sided calibration for perfect customized fit
- Full flexibility in tool changes
ALPHA PS04
Industrial beam saw
- Working dimension 3300x3300 / 3900x3900 / 4300x4300mm
- Cutting height 75mm - Sawblade projection 90mm
- Main saw motor 15 kW
- Steel saw table (top of machine frame)
- Double plate clamps
- Servo-controlled stepless cutting height adjustment
/Alpha%20PS%2006.png?width=376)
ALPHA PS05
Heavy Duty beam saw
- Working dimension 3300x3300 / 3900x3900 / 4300x4300mm
- Cutting depthj 90 mm - Sawblade projection 105 mm
- Main saw motor 18 kW
- Steel saw table (top of machine frame)
- Double plate clamps
- Servo-controlled stepless cutting height adjustment
/Sirius%20M.png?width=376)
SIRIUS 950 M
Compact CNC working center
- Maximum return on a limited number of m²
- Maximum productivity by intuitive NC-hops user-interface
- 3-sided calibration for perfect customized fit
/Sirius%20950.png?width=376)
SIRIUS 950
Compact CNC working center
- Maximum return on a limited number of m²
- Maximum productivity by intuitive NC-hops user-interface
ALPHA PS06
Heavy Duty beam saw
- Working dimension 3300x3300 / 3900x3900 / 4300x4300mm
- Cutting depth 110mm - Sawblade projection 125mm
- Main saw motor 27 kW
- Steel saw table (top of machine frame)
- Double plate clamps
- Servo-controlled stepless cutting height adjustment
Waarvoor staat CNC?
CNC staat voor Computer Numerical Control. Het is een technologie waarbij computers worden gebruikt om machines te besturen. Deze machines worden gebruikt om materialen, zoals aluminium, kunststof, of hout te bewerken tot specifieke vormen en eindproducten.
Onze showroom
1600 m² vol met machines die klaarstaan voor live demonstraties.
Je krijgt een helder beeld van wat elke machine doet, hoe ze werken en hoe ze kunnen passen binnen jouw productieproces.
- AES CNC-machines: frezen, boren, nesting en meer
- OTT Kantenaanlijmers: plaatretoursysteem, BluEdge featuring HyFuse, ...
- Praktijkgerichte demonstraties: live uitgevoerd door onze specialisten
- Stel al je technische of praktische vragen
Service bij DB&S Machines
Telefonische servicedesk
We bekijken jouw serviceaanvraag zo snel mogelijk en nemen daarna telefonisch contact met je op. Onze telefonische helpdesk blijft namelijk de snelste manier om jou weer op weg te helpen.
Is het probleem niet meteen vanop afstand op te lossen? Geen zorgen, dan plannen we een van onze ervaren service-engineers in om het probleem bij jou ter plaatse aan te pakken.
Persoonlijk portaal
Dankzij ons portaal heb je altijd en overal toegang tot alle belangrijke informatie over jouw machines, lopende en afgesloten serviceaanvragen, facturen, machines in bestelling.
Daarnaast kan je een nieuwe serviceaanvraag via het portaal.
Zo blijf je volledig in controle, zonder onnodige administratie.
Periodiek onderhoud
Jouw houtbewerkingsmachine levert elke dag topprestaties. Om langdurig kwaliteit & betrouwbaarheid te garanderen, is goed gebruik en regelmatig onderhoud essentieel.
Toch stilstand? Onze snelle en vakkundige servicedienst staat voor je klaar. We helpen je telefonisch of komen ter plaatse, zodat je CNC-machine of kantenlijmer snel weer draait.
Opleiding
Onze ervaren trainers stemmen de CNC opleiding volledig af op jouw machines, toepassingen en productieproces. Of het nu gaat om basiskennis voor nieuwe medewerkers of diepgaandere optimalisatie voor ervaren operatoren, wij zorgen ervoor dat jouw team de machines vlot en veilig gebruikt. Zo haal je het maximale rendement uit je kantenlijmer en CNC-machines.
