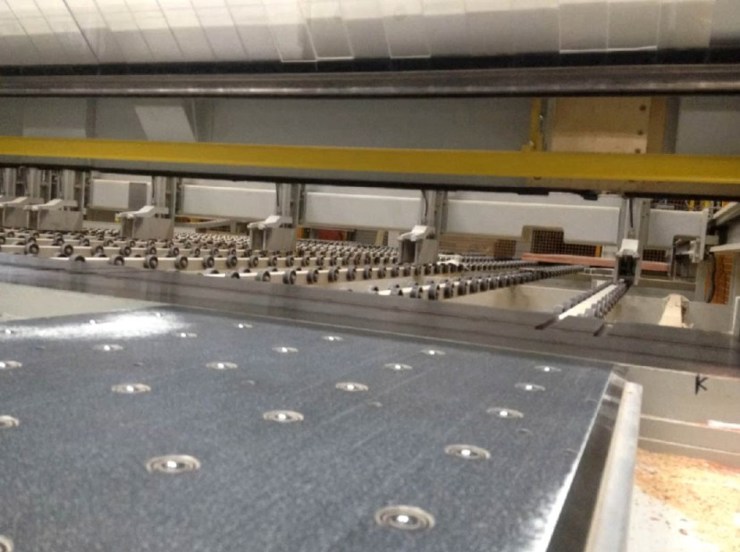

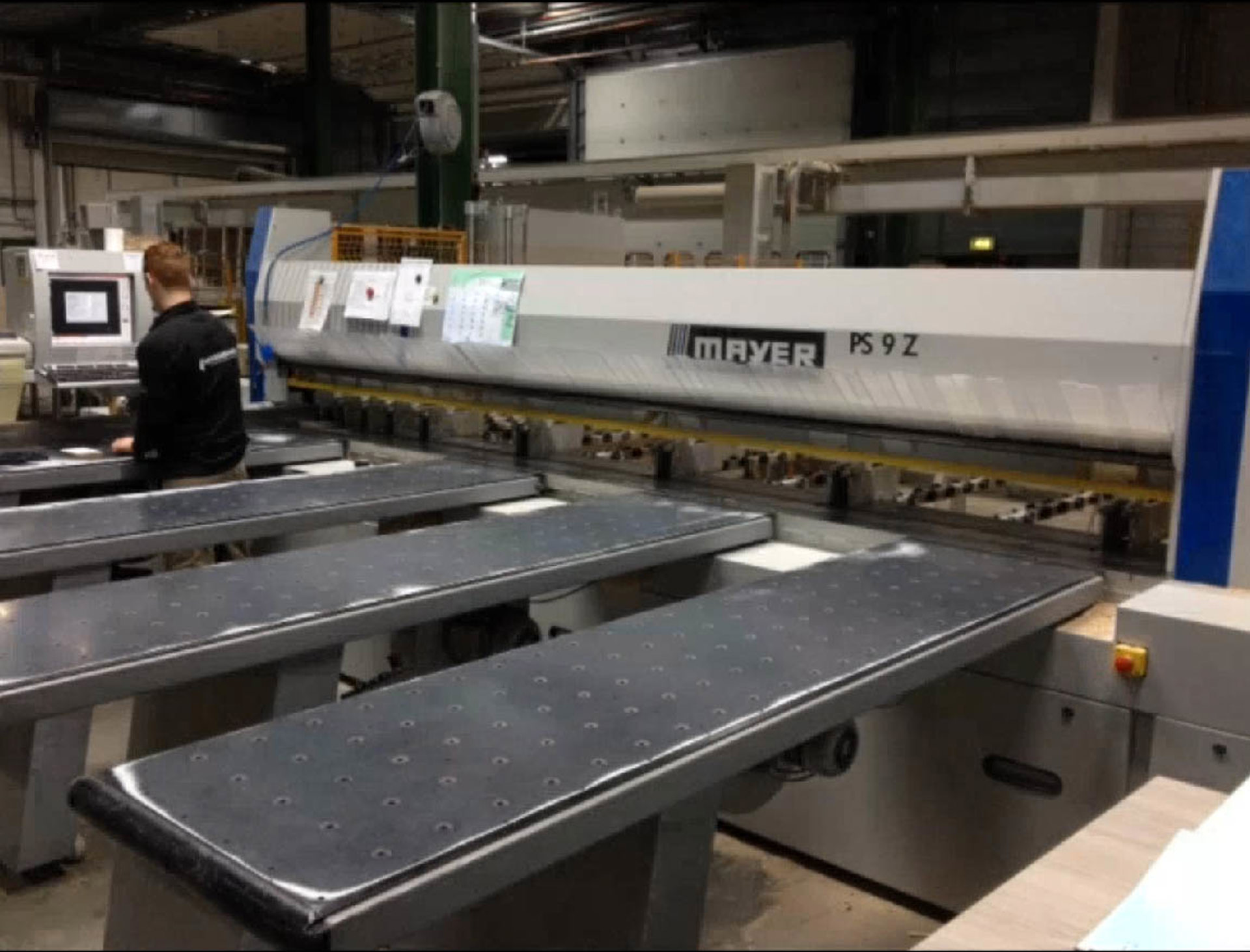

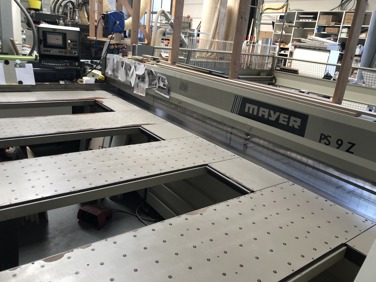

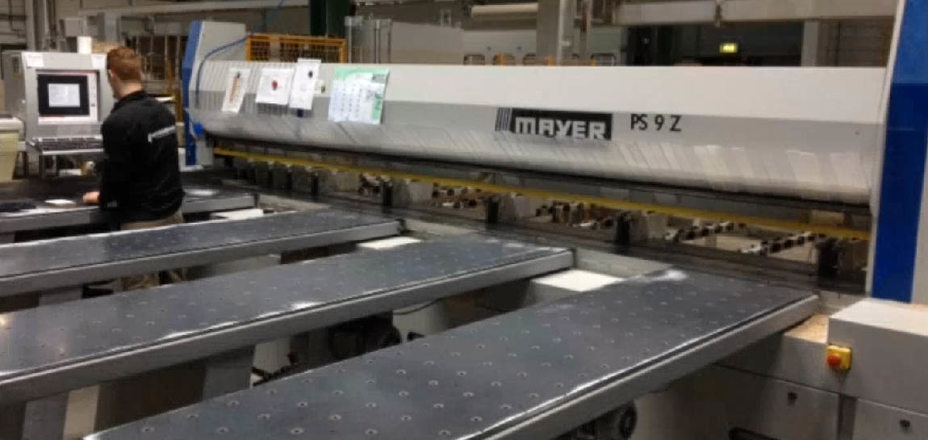

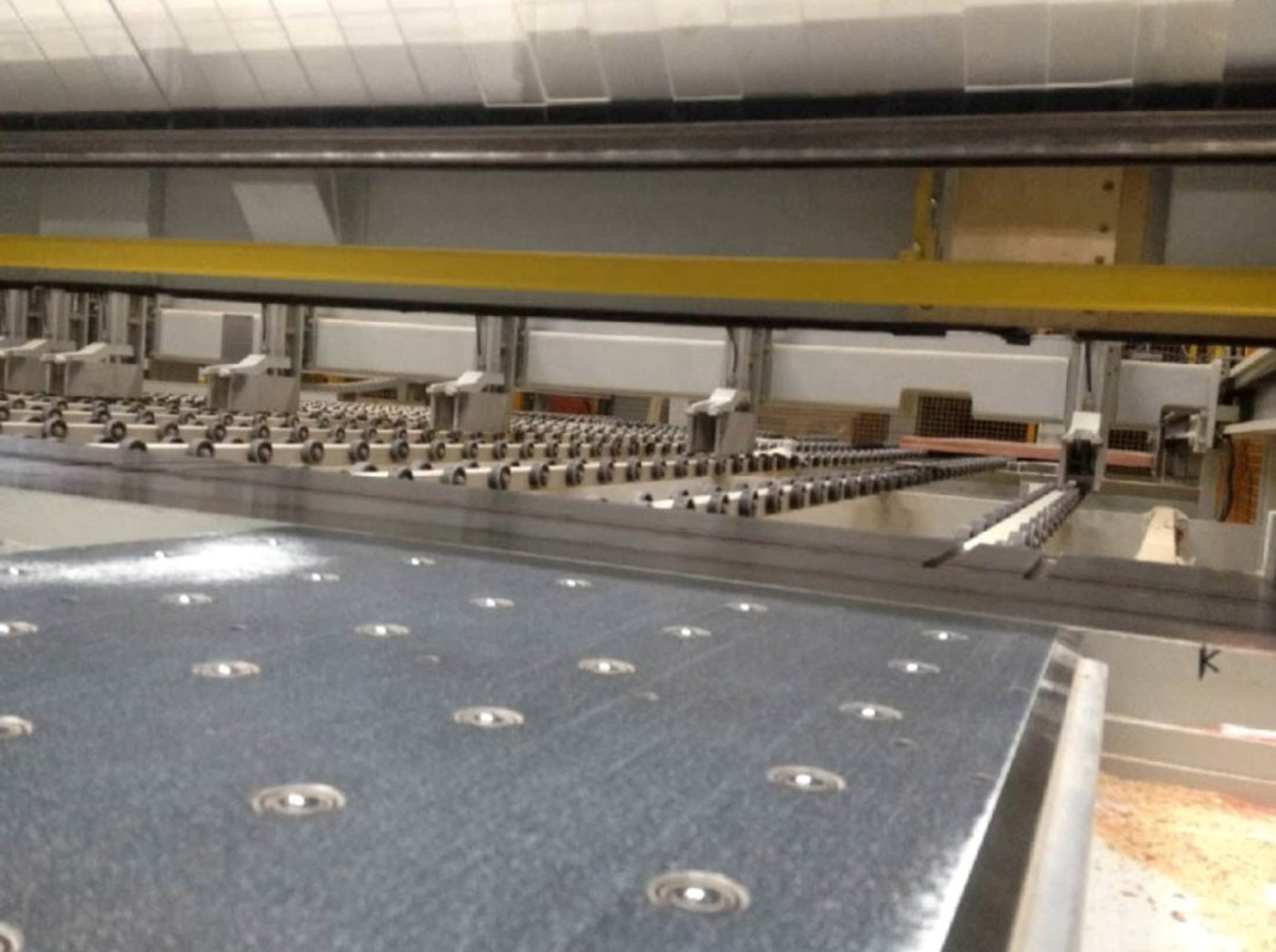

Beam saw Mayer PS 9 Z

M000713
  • Year of construction 2008
  • Machine is available en ready for use
Beam saw Mayer PS 9 Z
Technical Data

Panel sizing 4200 x 7800mm
+ Automatic portal loading system with
4 positions to the left of panel saw
1 position to the right of the panel sizing machine

8 sheet clamps with double clamping fingers

Double side pusher (front and rear cutting line)

Motorised cutting height adjustment

Automatic first cut

Label printer

Vacuum loading system

90° rotatable vacuum lifter

Alignment stops in the support table

Saw blade overhang : 103mm
Air cushion table with angled guide : 3000x600mm
3 additional air cushion tables (1 movable) : 2500x600m
Span length : 22m
Panel length : 4200-2000mm
Panel width : 2150-1200mm
