CNC Holztech Industrial Evo Pod and rail CNC working center
M000799/Foto%20nieuwsbrief.jpg?width=928&height=440&bgcolor=fff)
Technical Data
Voltage 3 x 380V / CE
X 3200 x Y 1300 x Z 250mm
Vacuum pump 90m³.
Drill head with 19 vertical spindles : 9 in X + 10 in Y.
6 horizontal spindles : 2+2 in X + 1+1 in Y.
Milling motor 10hp ISO30 take-up.
Slot saw in X diam. 120mm
Integral turret tool change 8 pos.
Double zero line reference stops in X
4 movable stops in Y
6 schmalz bars + cups
Twincam control on Windows
Ring for positioning aggregates
4 plate lifters
Central lubrication
Air conditioning in electrical cabinet.
WITHOUT aggregates or tools.
WITH barcode reader
Photo gallery
/Foto%20nieuwsbrief.jpg?width=1920)
Download PDF
Foto & Video
Request a quotation
Personalised advice
Similar used machnies
/Evolution%203.jpg?width=376)
Holztech

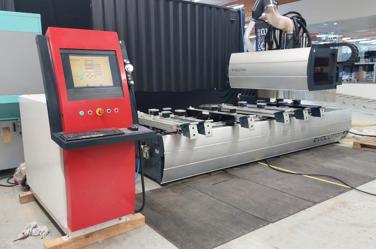

Holztech Industrial Evolution C Pod and rail CNC working center
