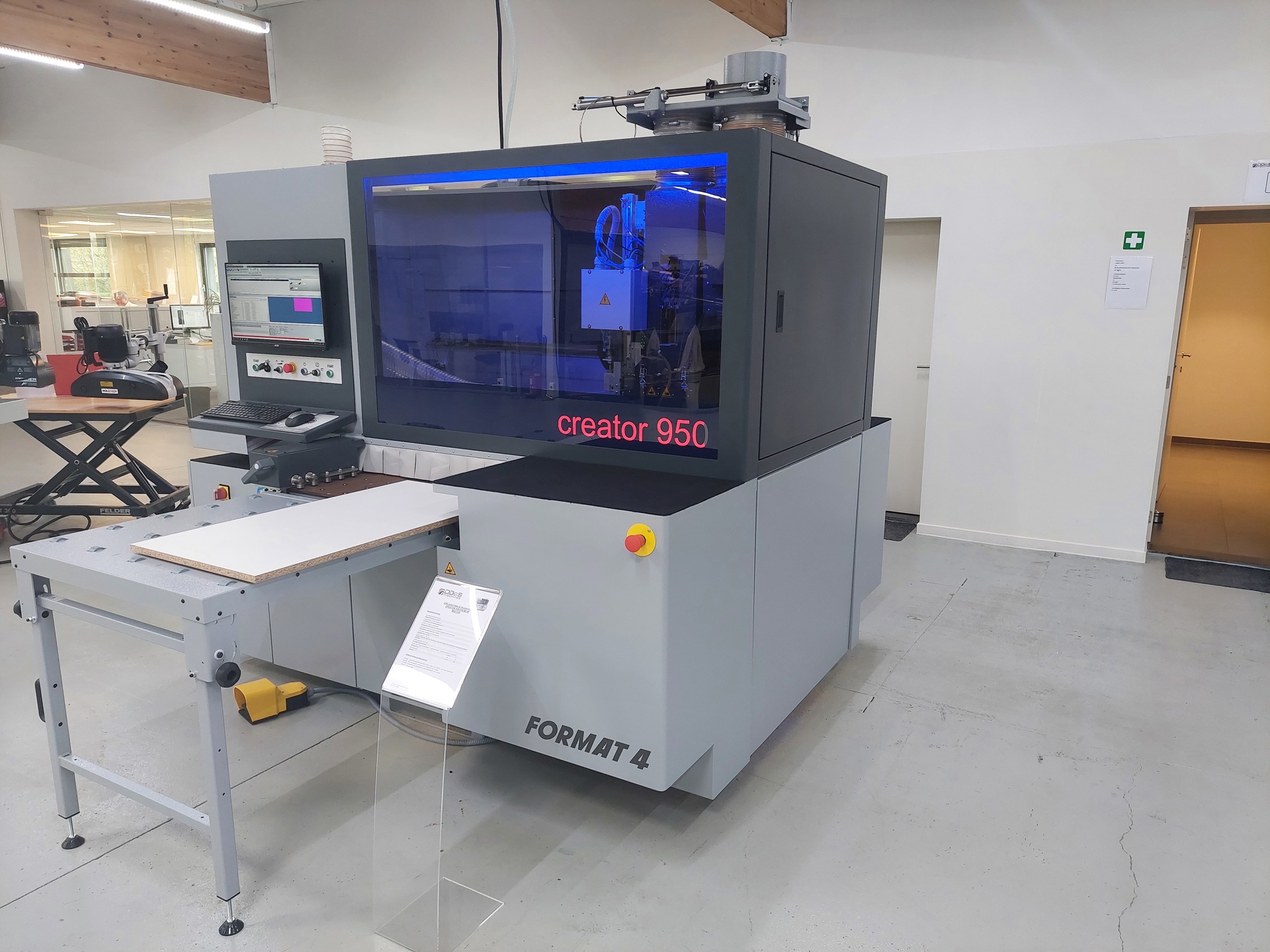

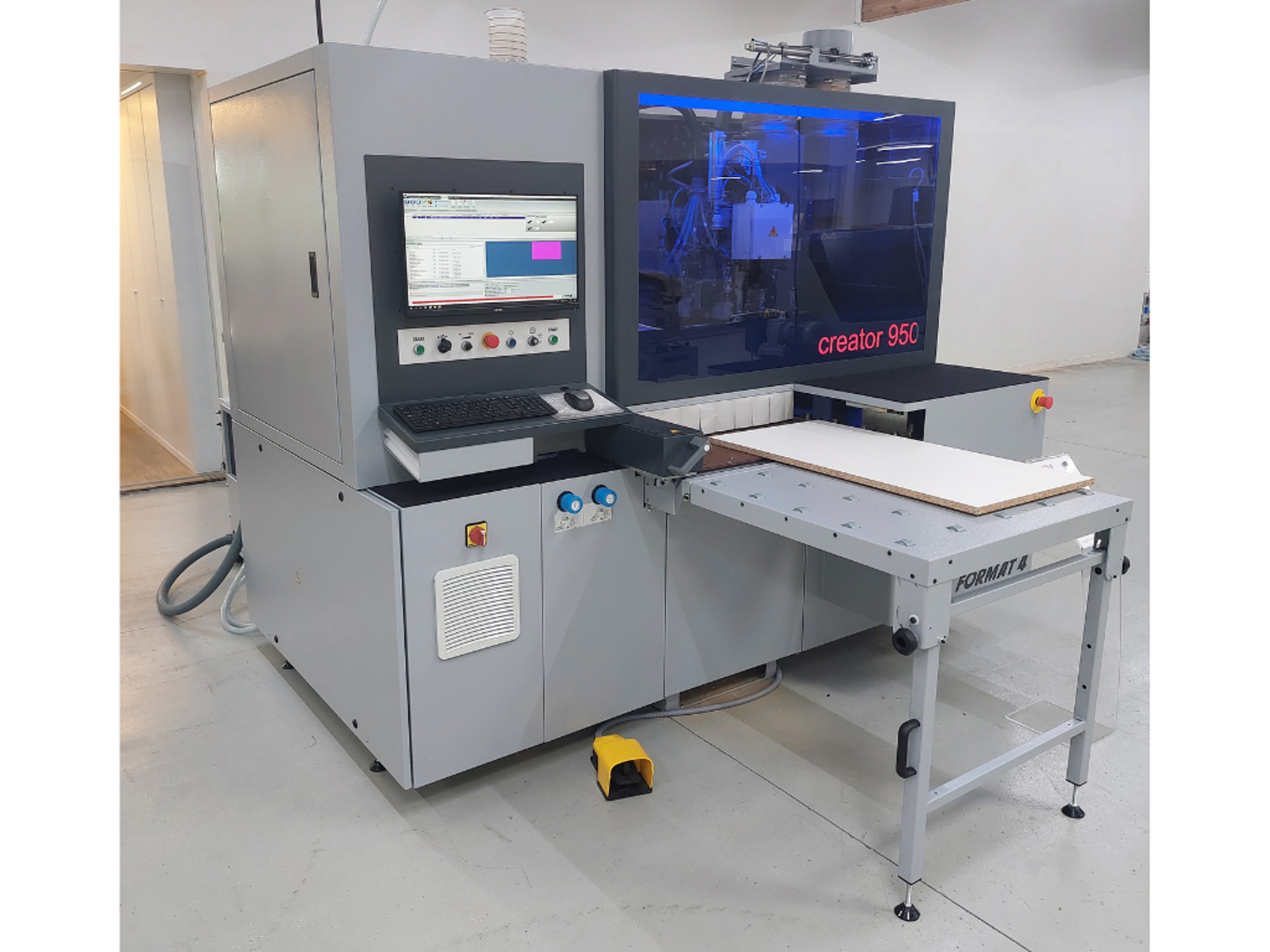

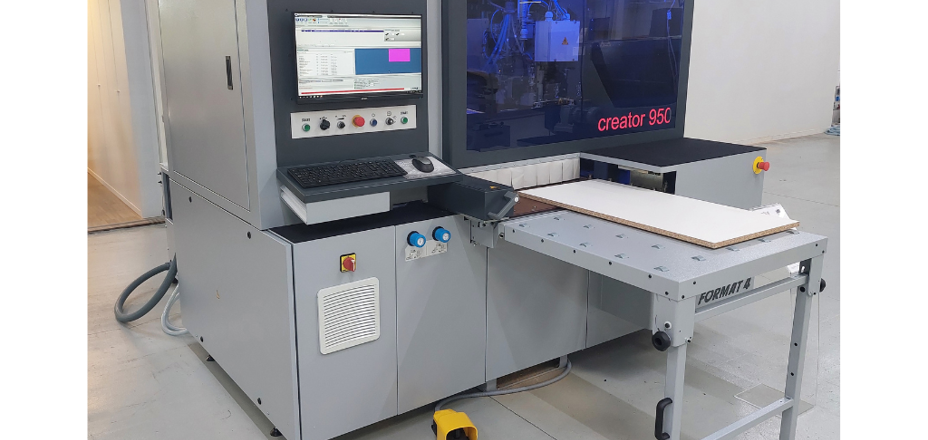

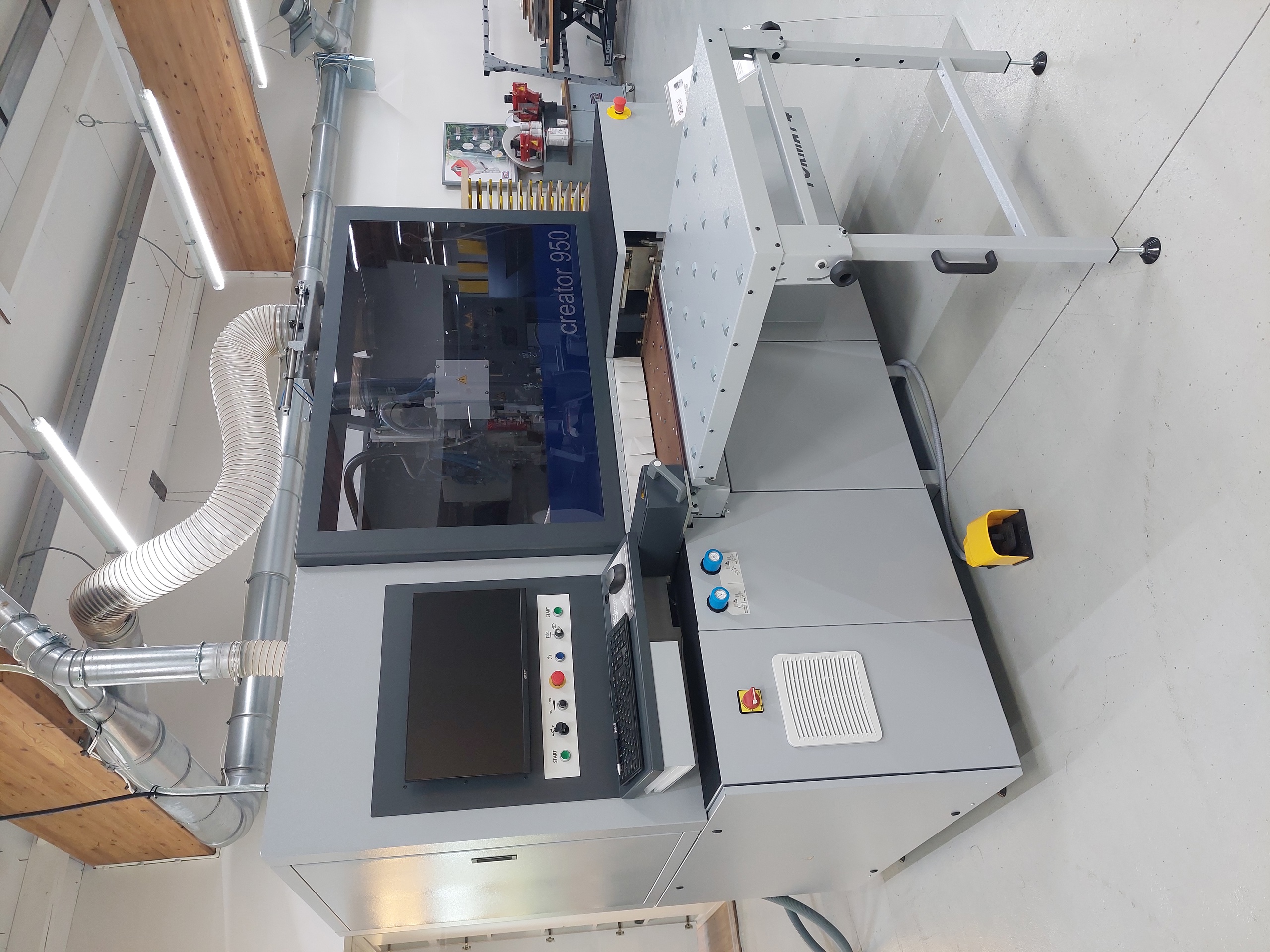

Compact CNC Format4 Creator 950 Premium

M001345
  • Available immediately
Compact CNC Format4 Creator 950 Premium
Technical Data

380V/50Hz CE

Standard on the Creator 950:
- Max. workpiece dimensions 4000 x 950 x 80mm
- X - Y - Z axes
- Machinging from above

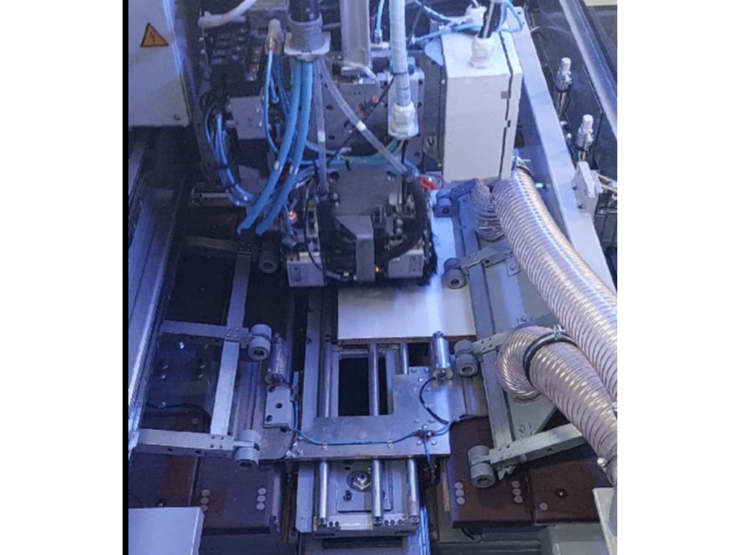

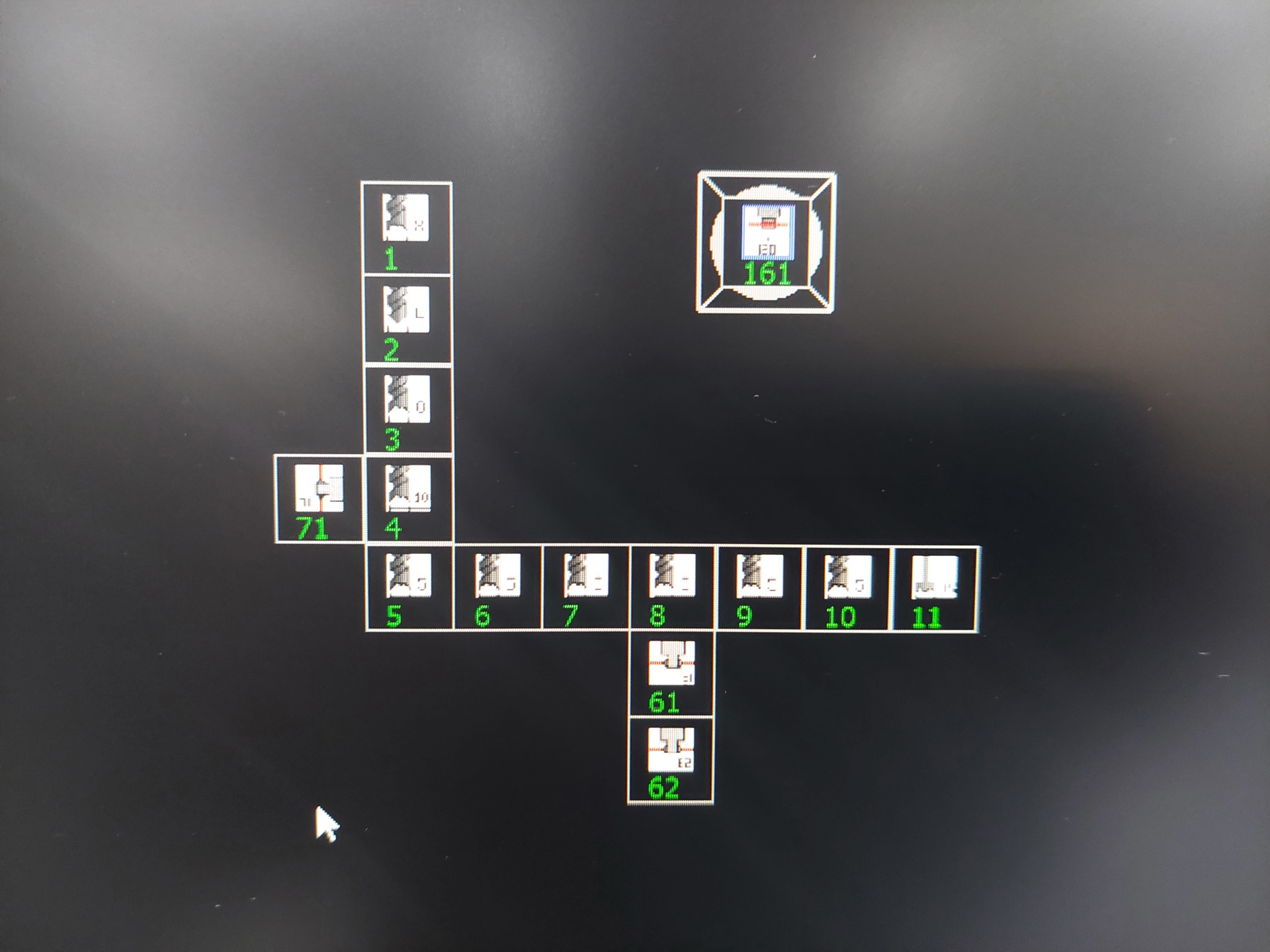

- DH17 6H 1S drilling unit
  * 11 vertical shafts
  * 6 horizontal shafts
  * 1 X saw

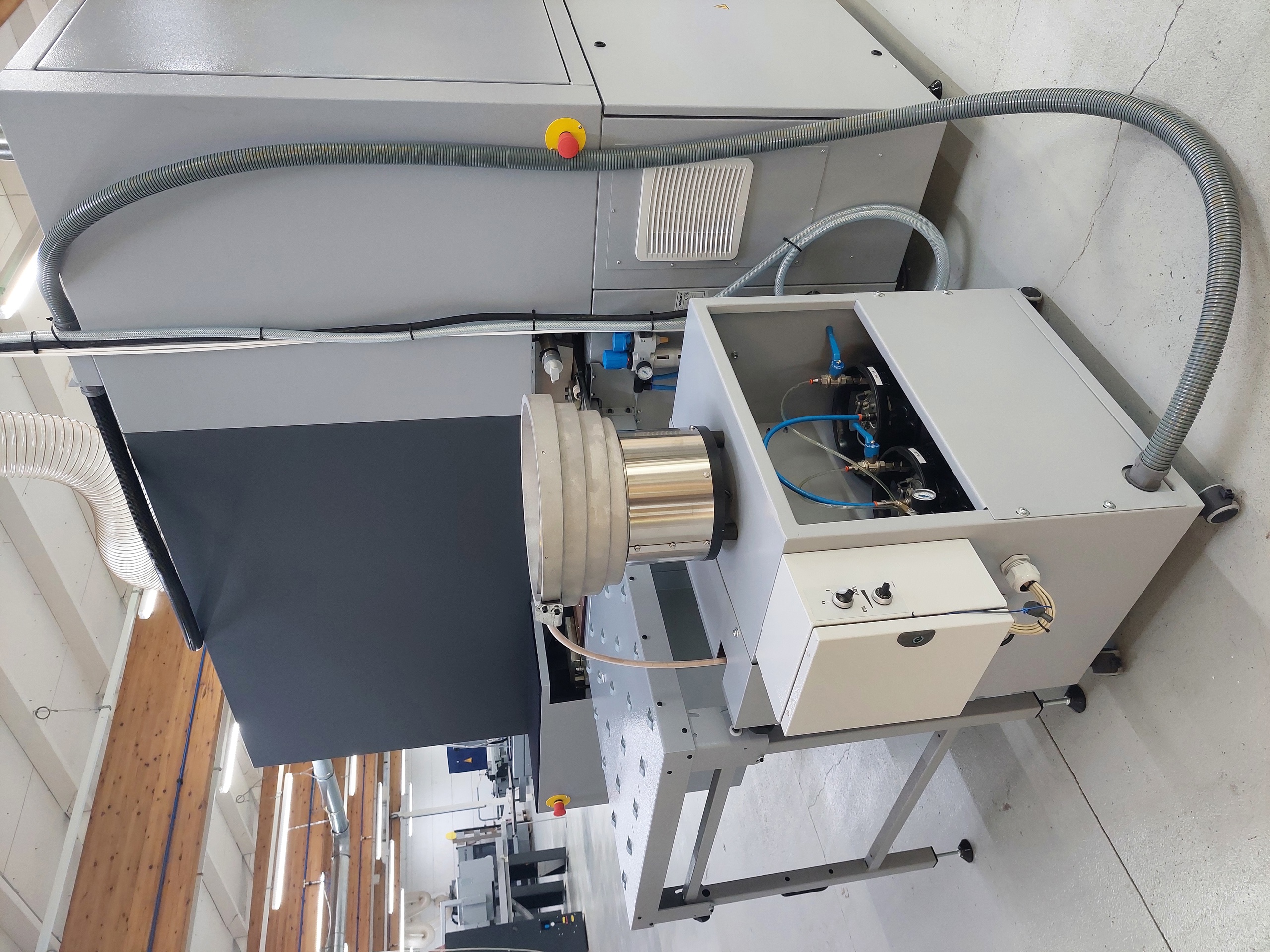

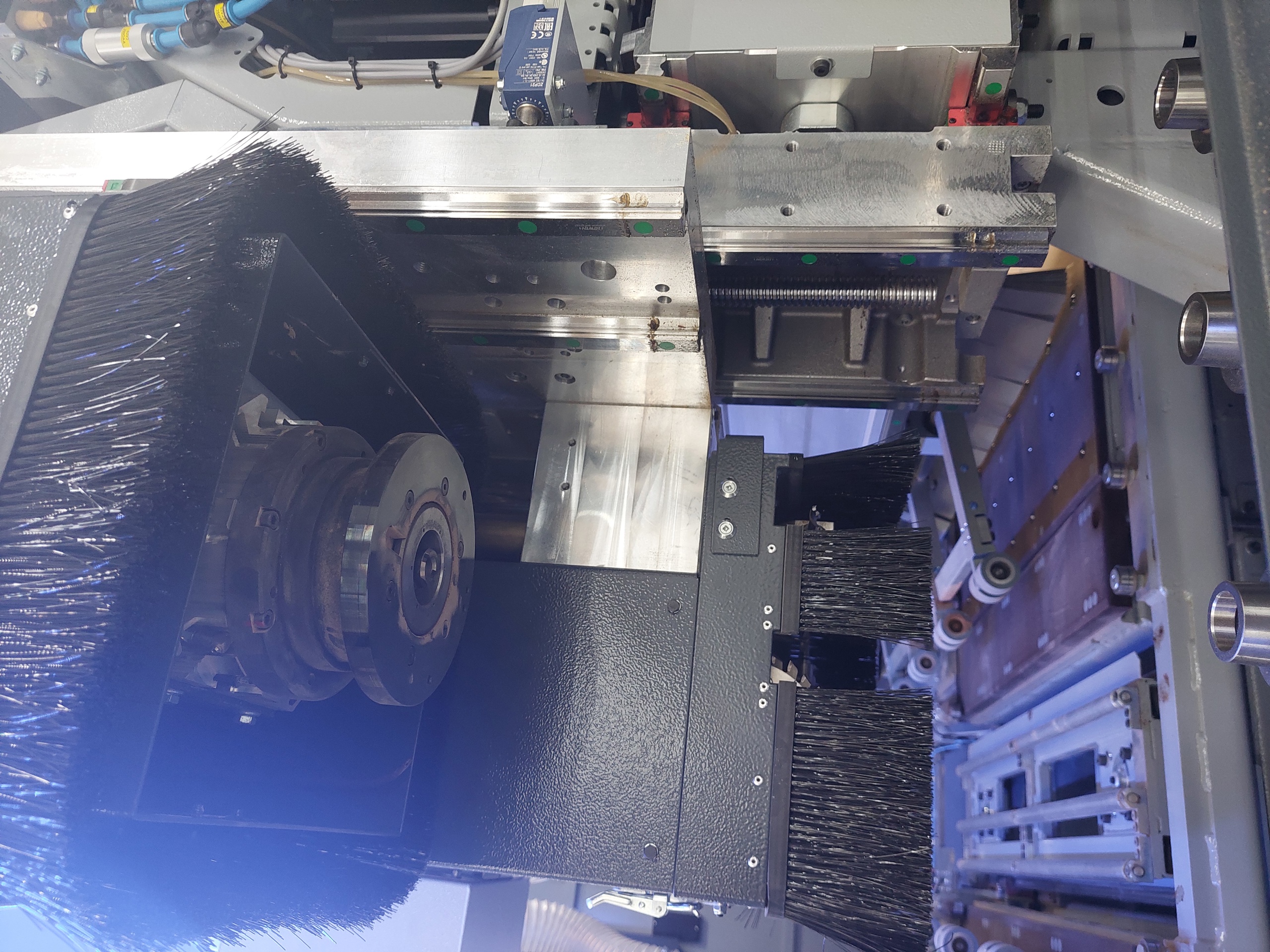

- 12 kW milling motor - HSK-F 63

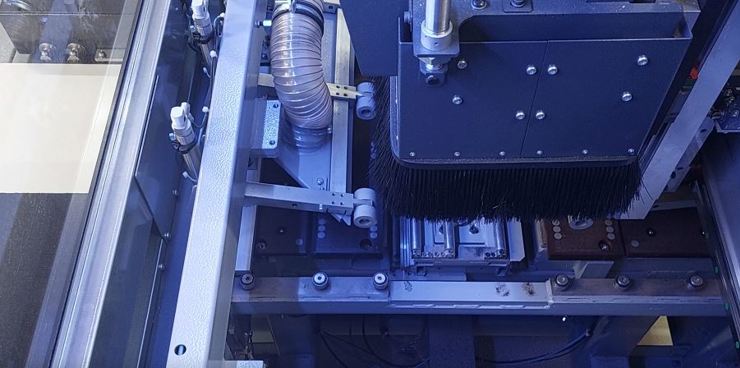

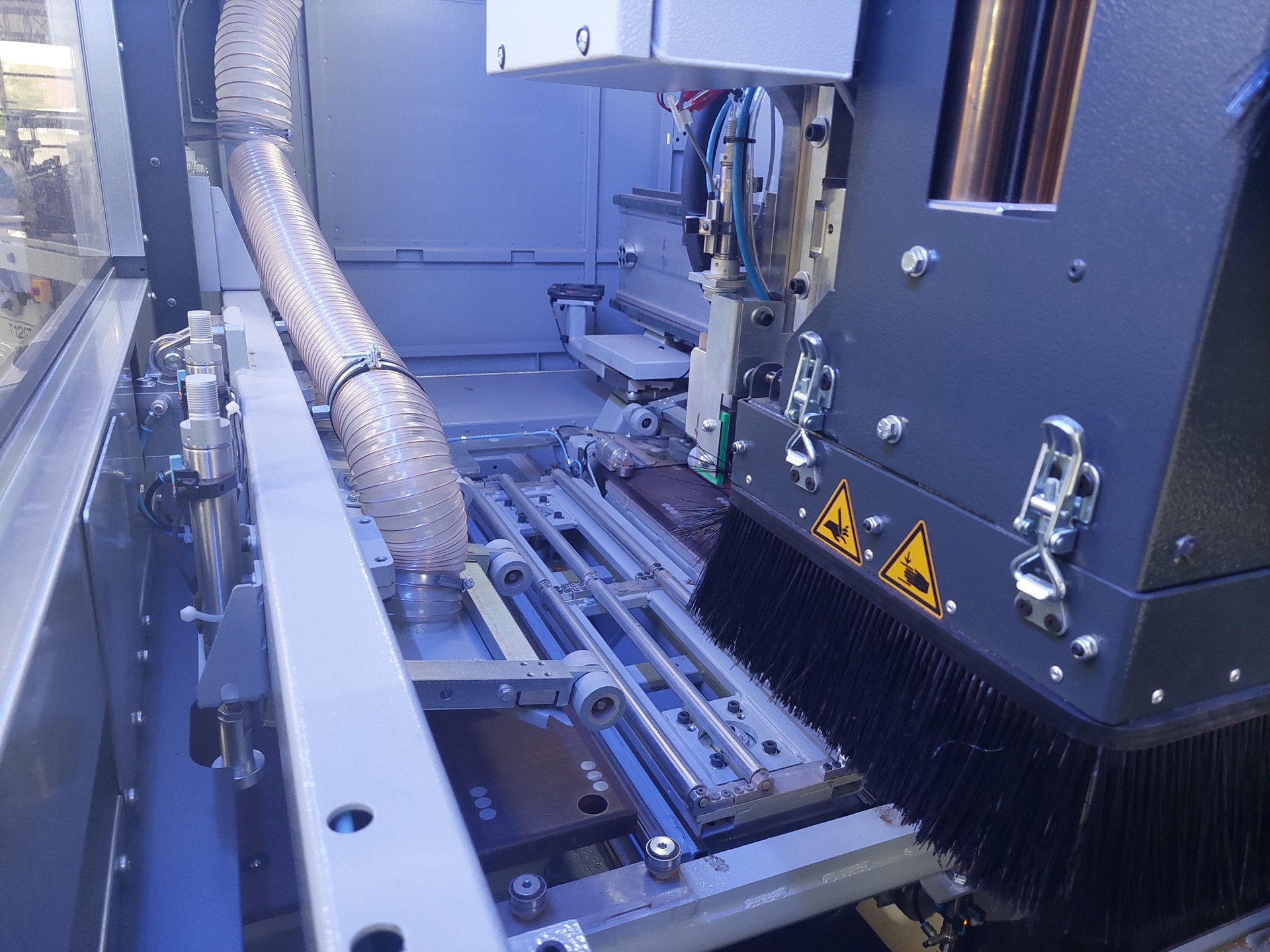

  with dust extraction bonnet automatic height adjustment

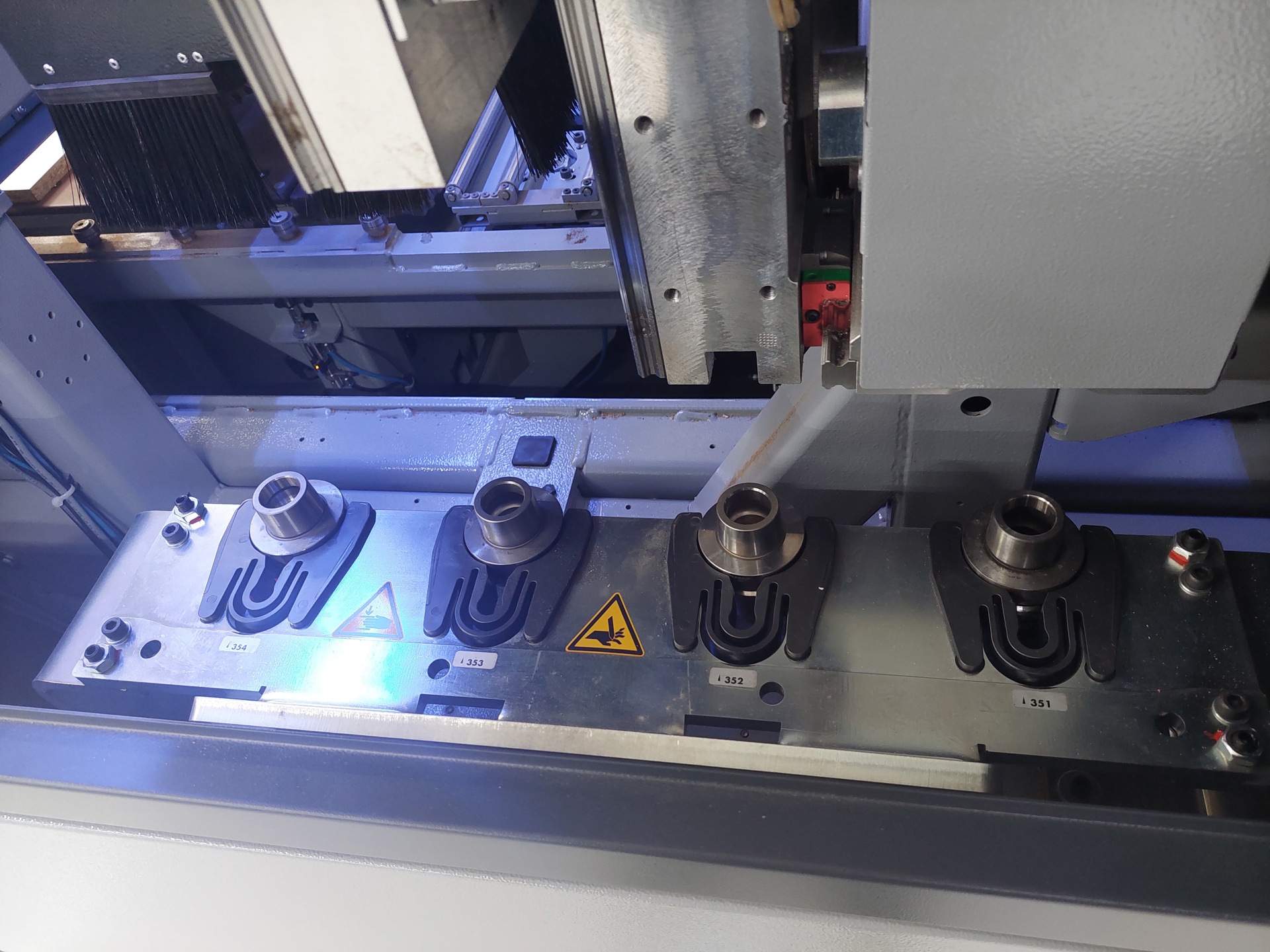

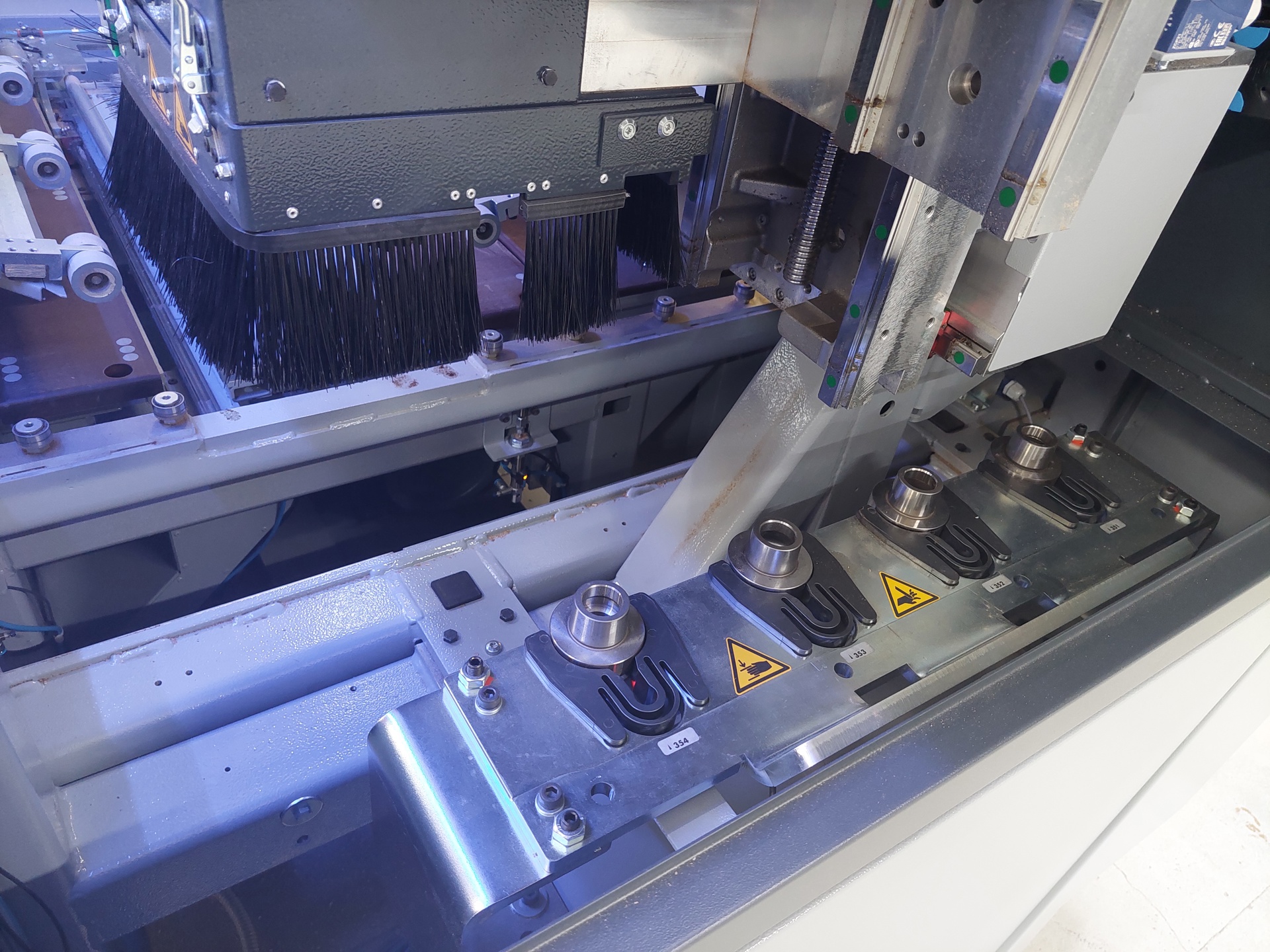

- 4-position linear tool magazine

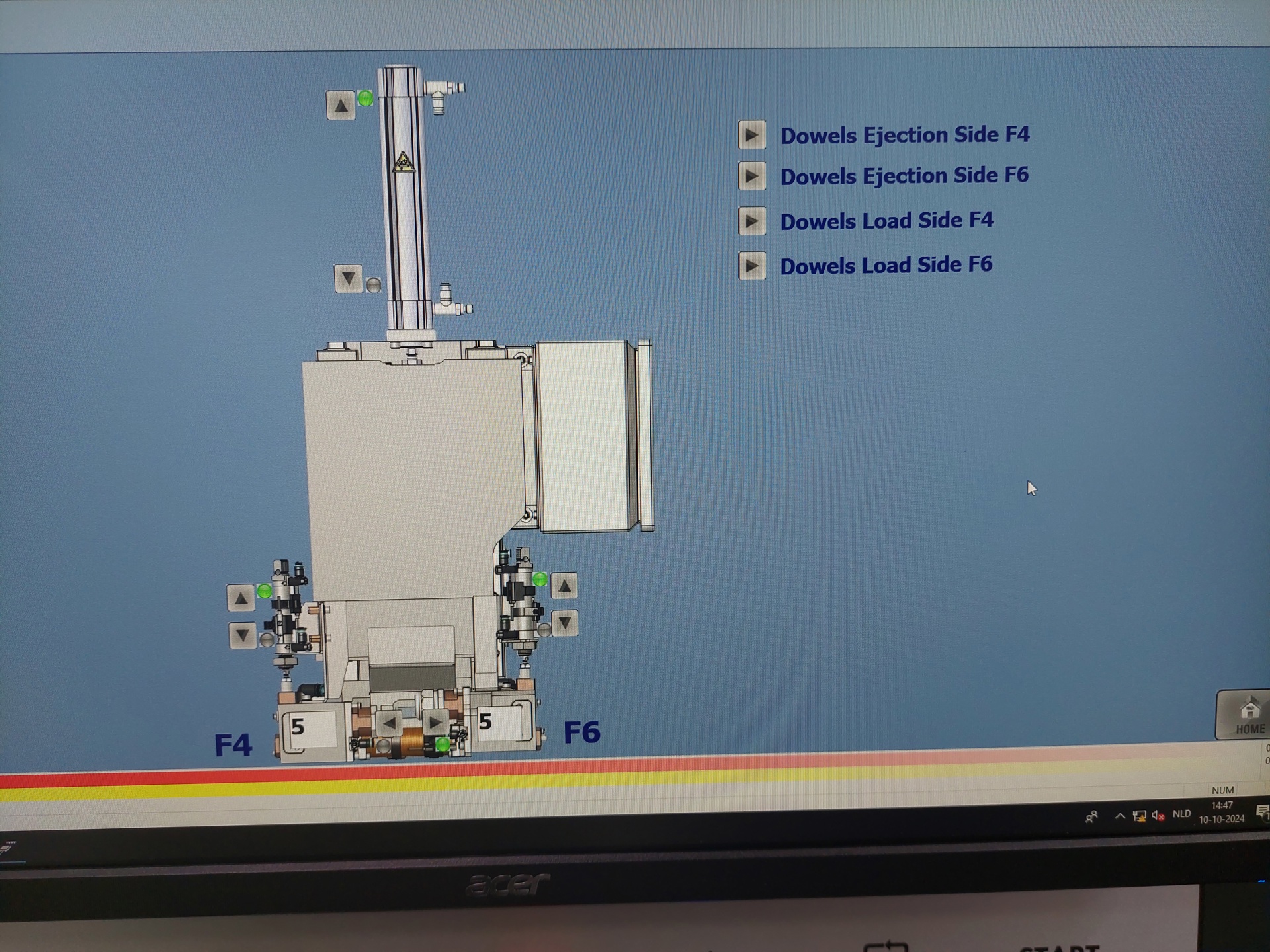

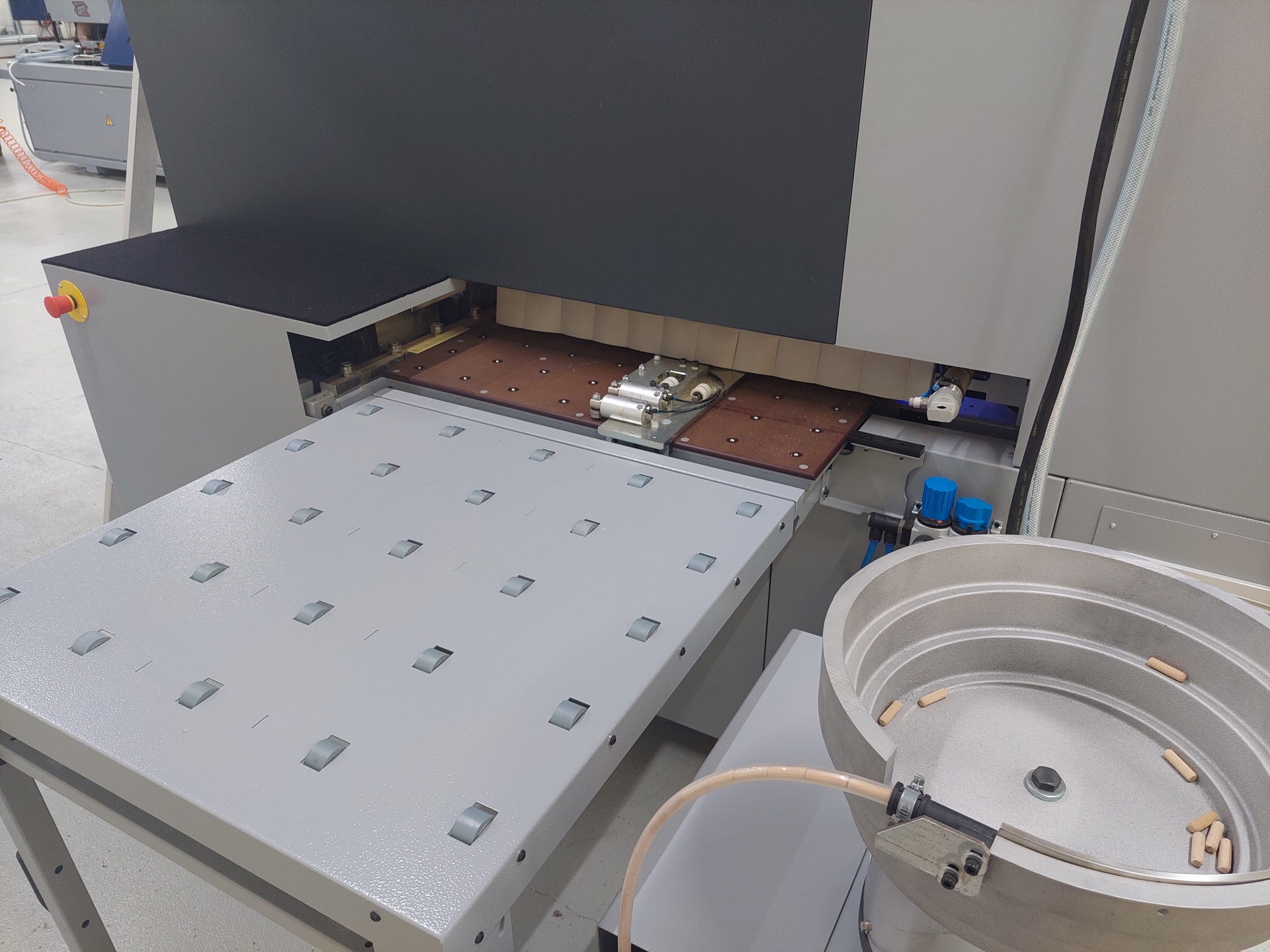

- 8mm dowel insertion slot (in X)
- X: panel moves from front to back
  Y: drilling unit from right to left
  Z: milling height

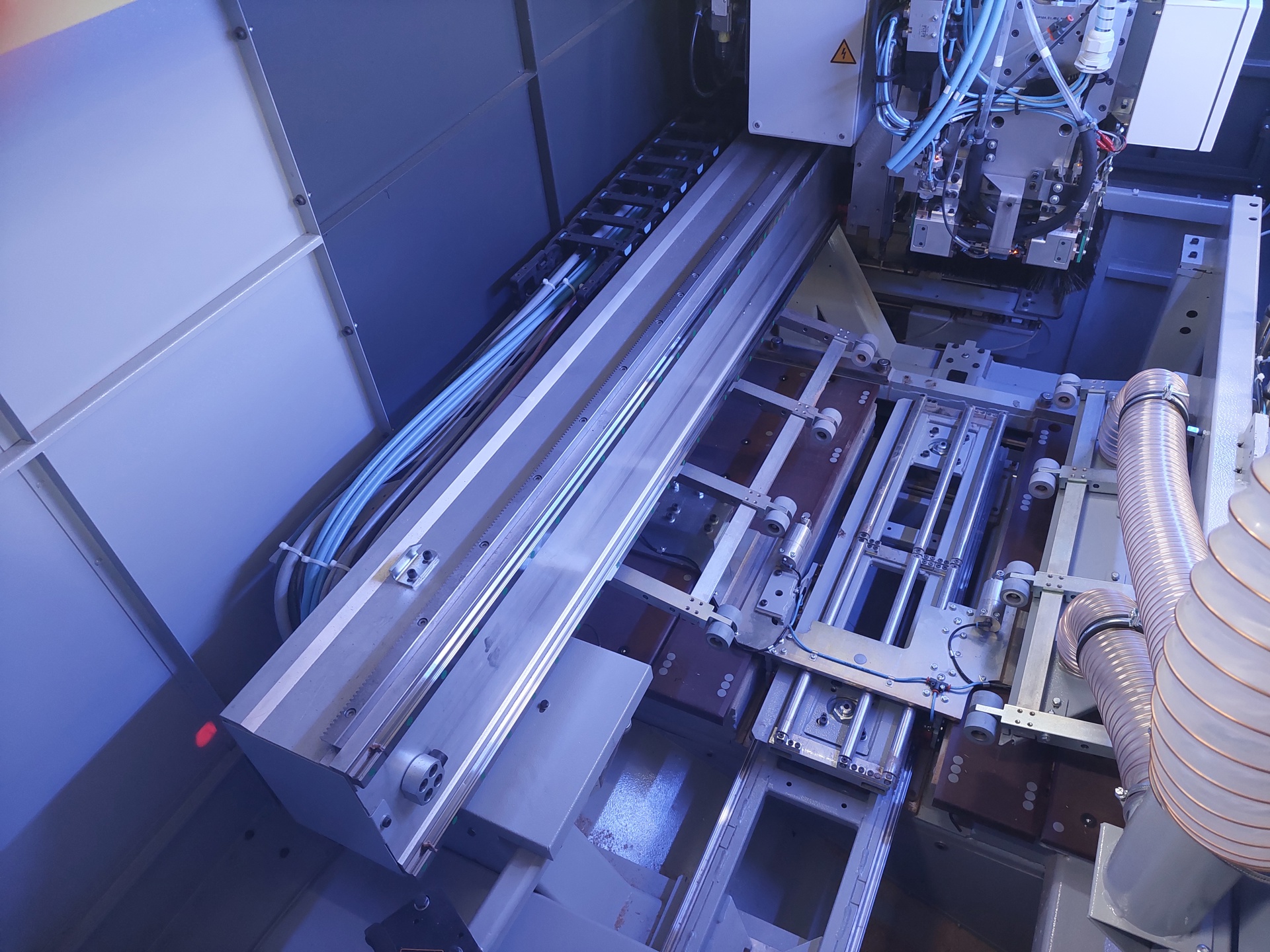

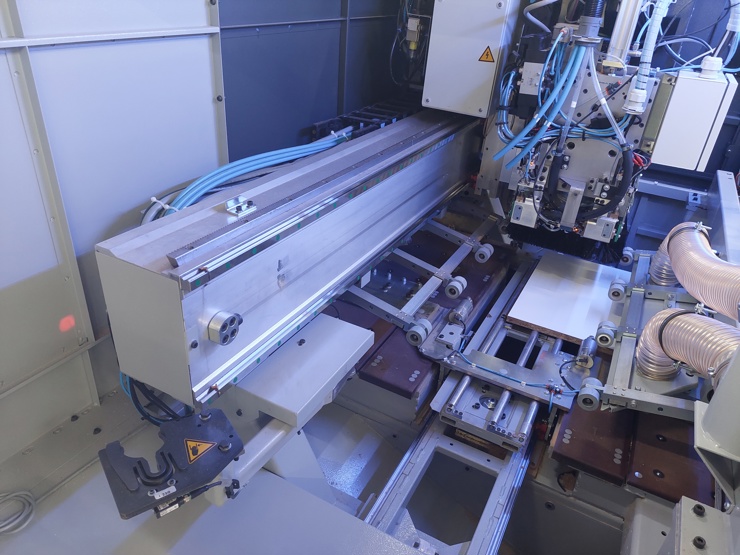

- Workpiece transport by double clamp
- Workpiece clamping by pneumatic rollers
- Automatic length measurement of workpieces in X
- Reference cylinder
- Centralised controlled extraction
- CE-compliant work safety

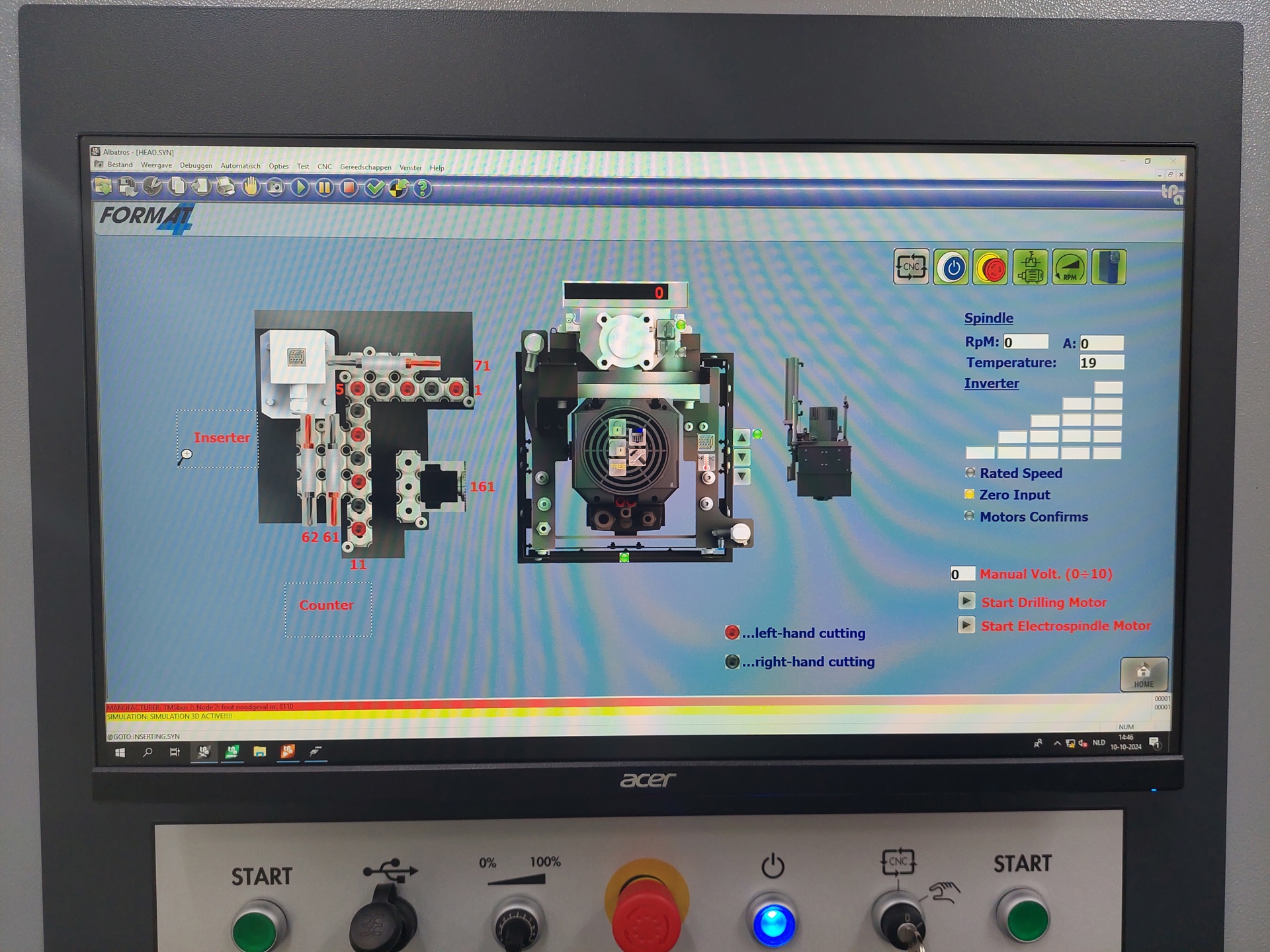

- Fixed control panel to the right of the entrance
- Teleservice via internet

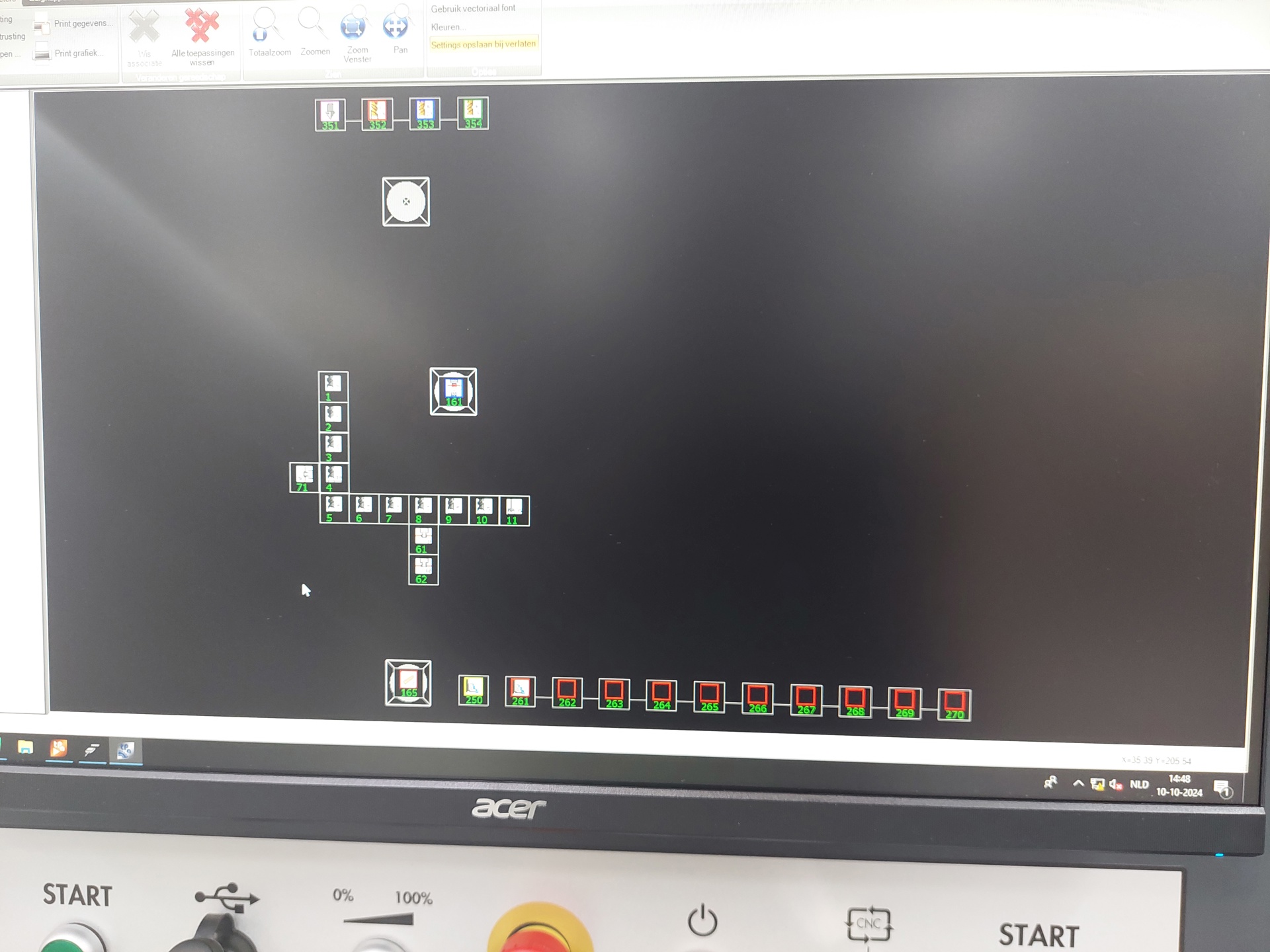

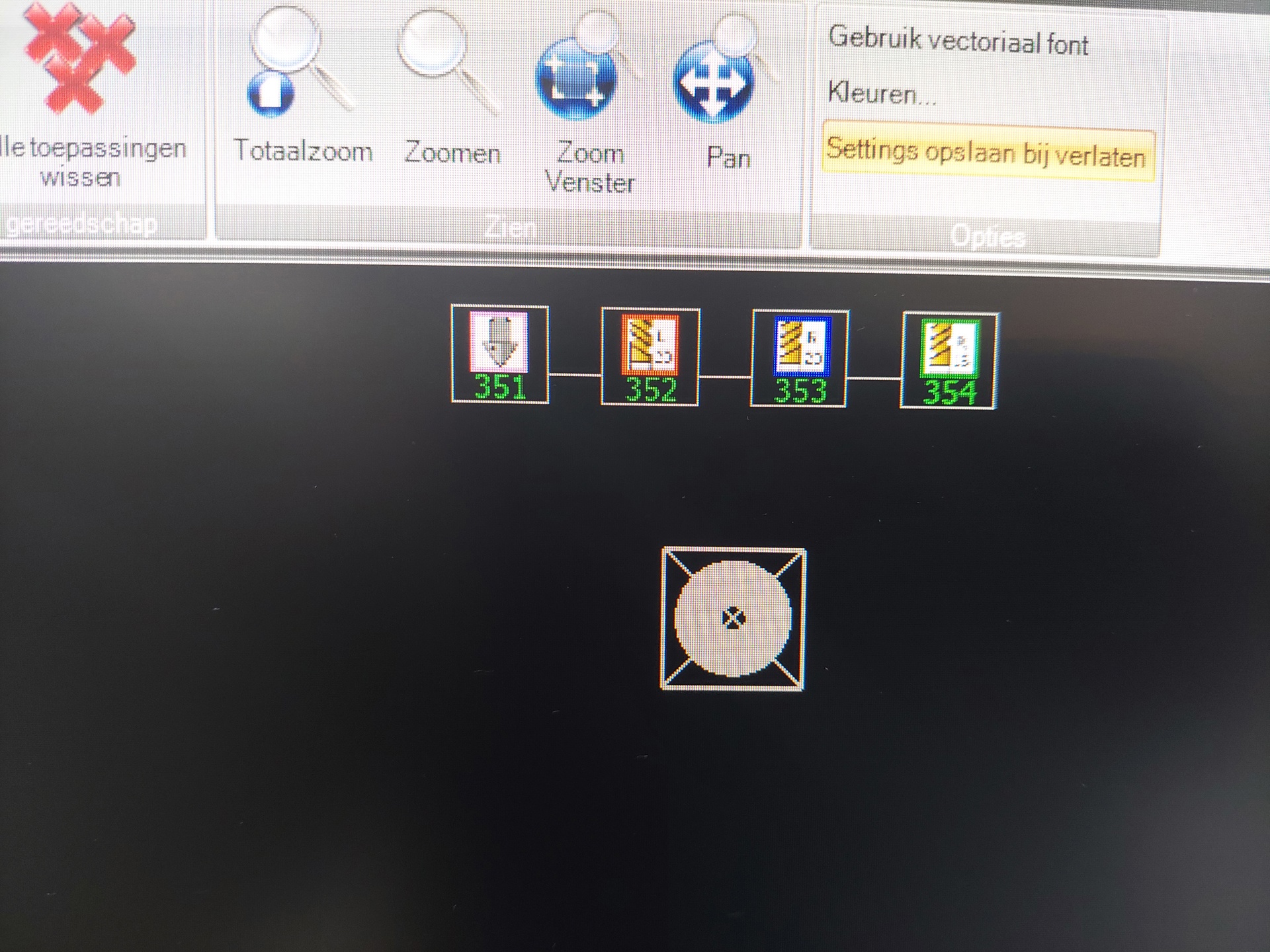

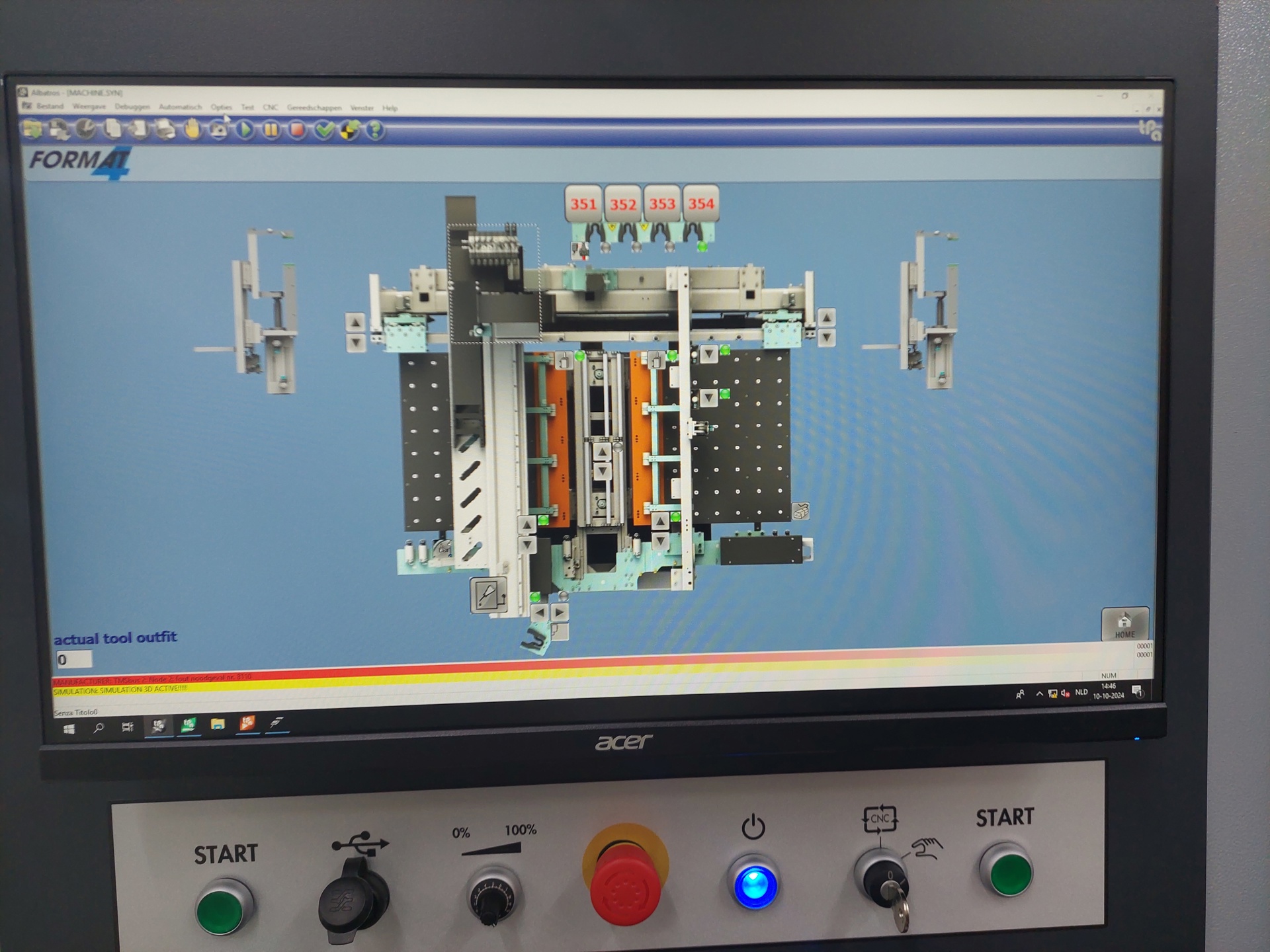

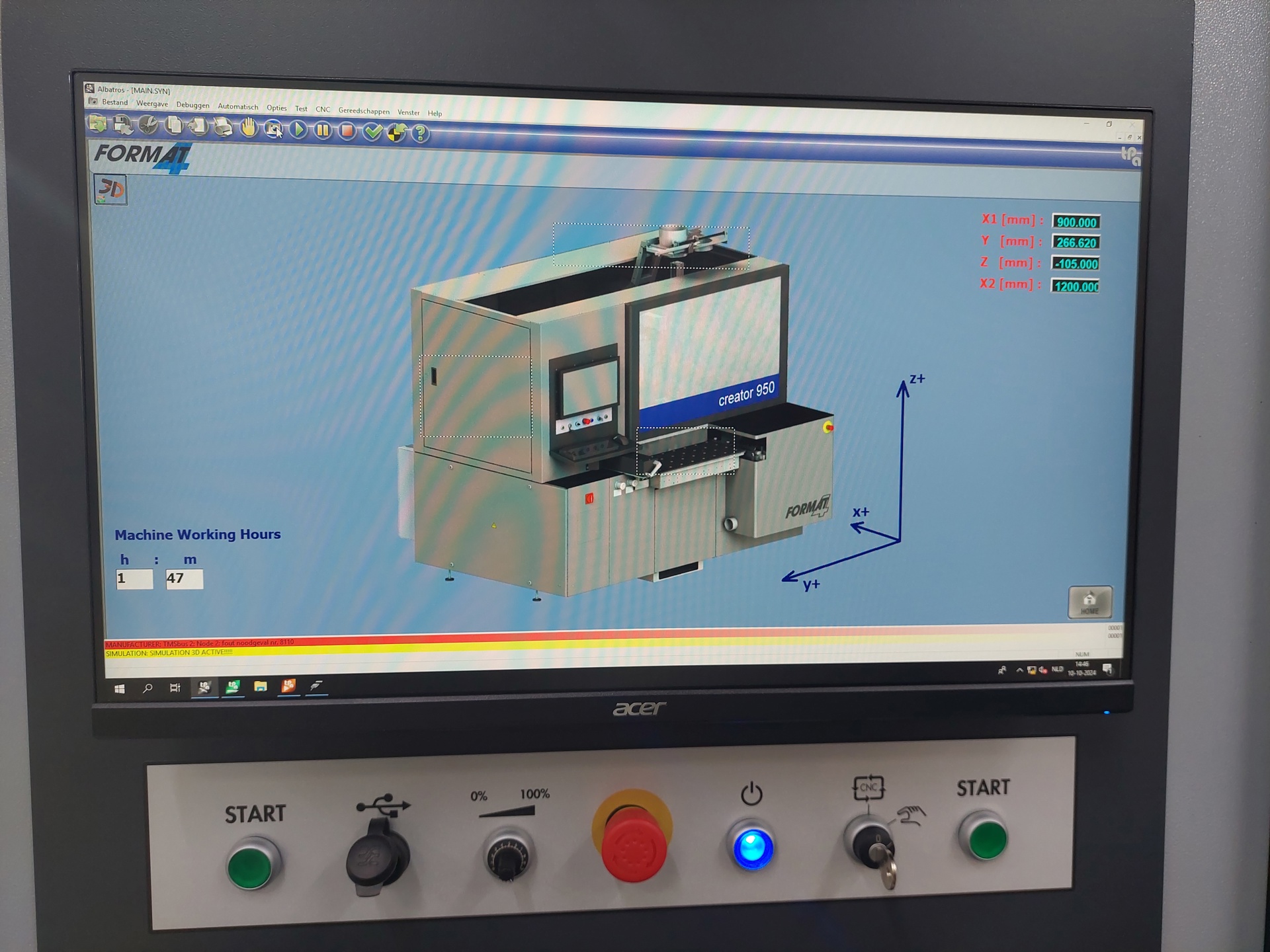

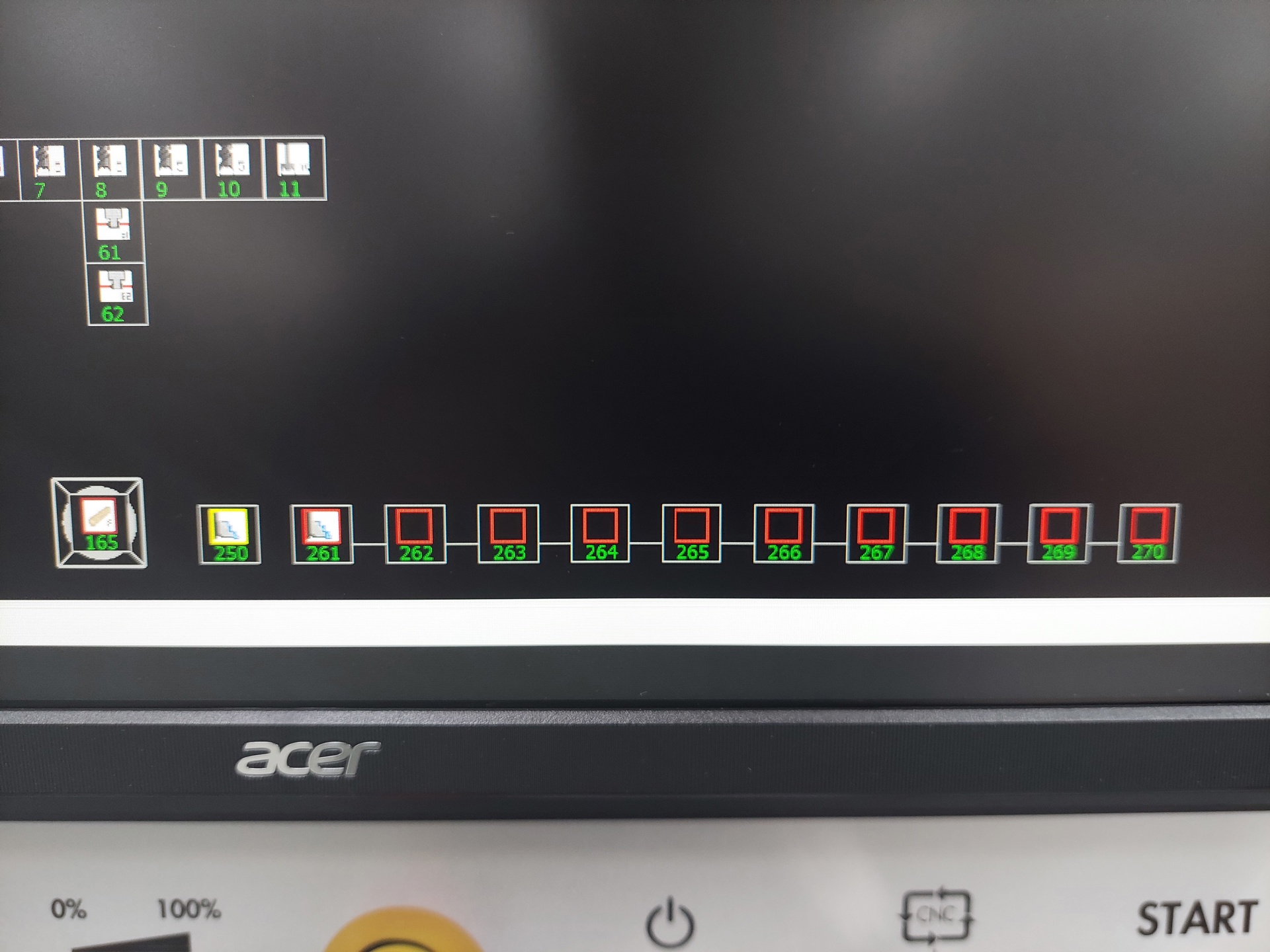

- Woodflash on-machine programming software

Options on this machine:

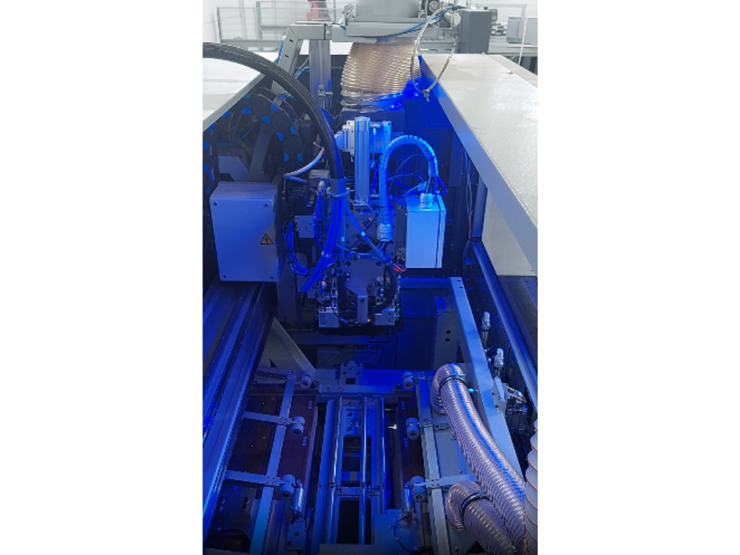

- Blue LED line along the machine
- LED Visualisation of the status of the machine
- 4 position tool changer (lineair) for use of aggregates
- Pick-up position
- Fold away support tables for long workpieces (front + rear) (roller table)
- Front and rear support table on machine with air cushion
- 2nd reference fence cylinder for long workpieces
