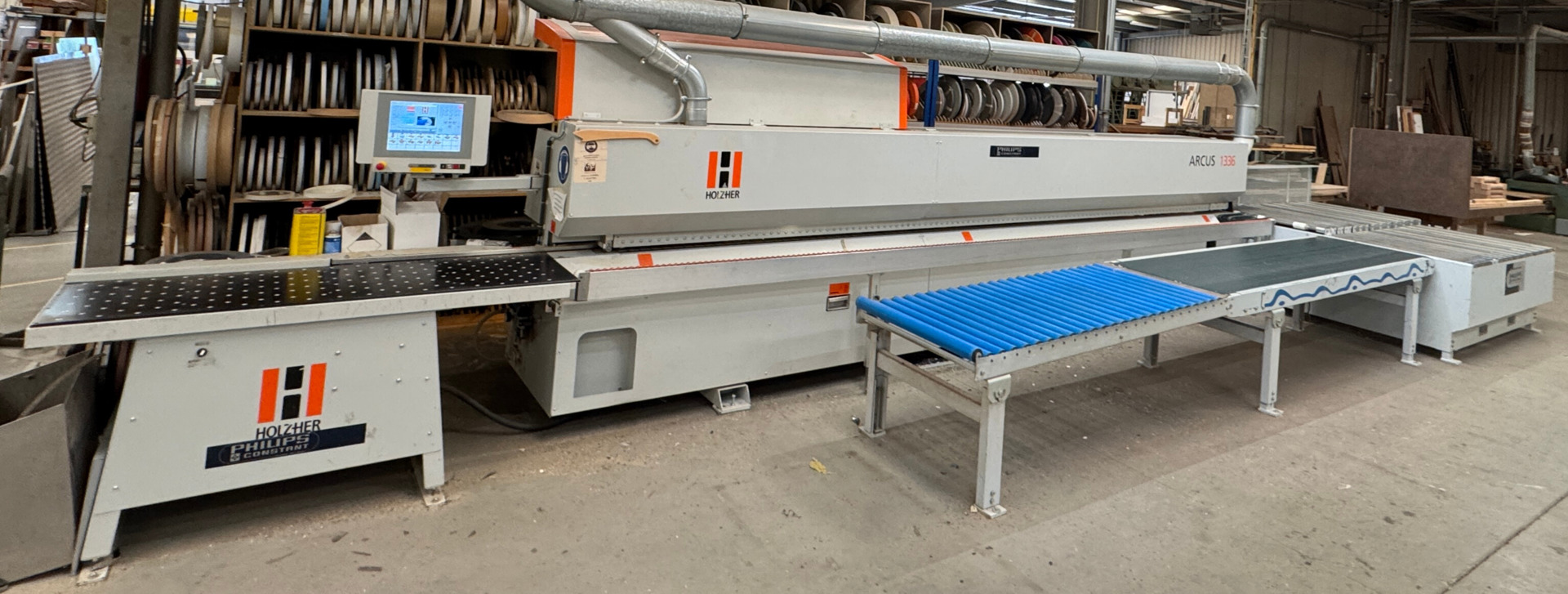

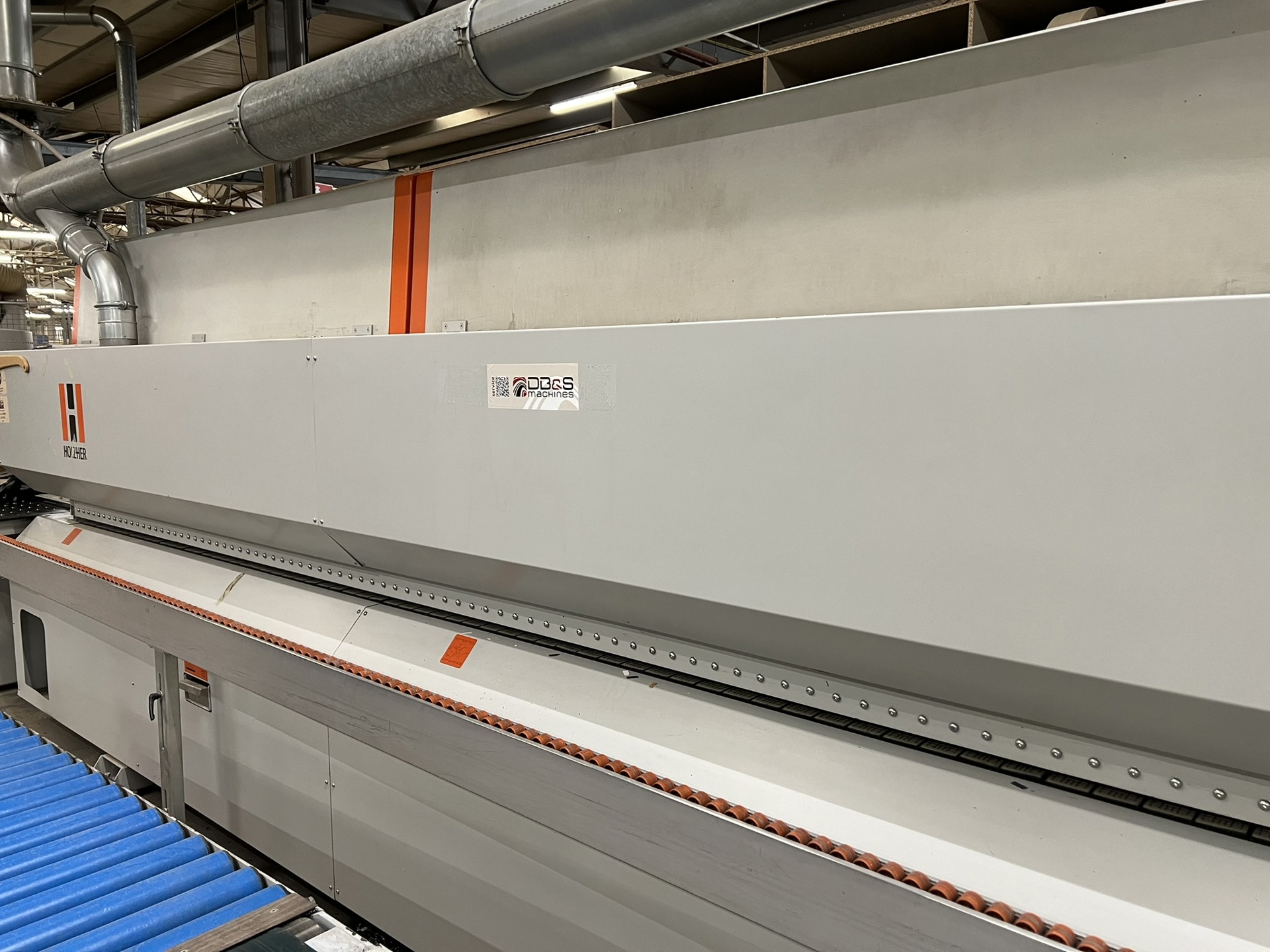

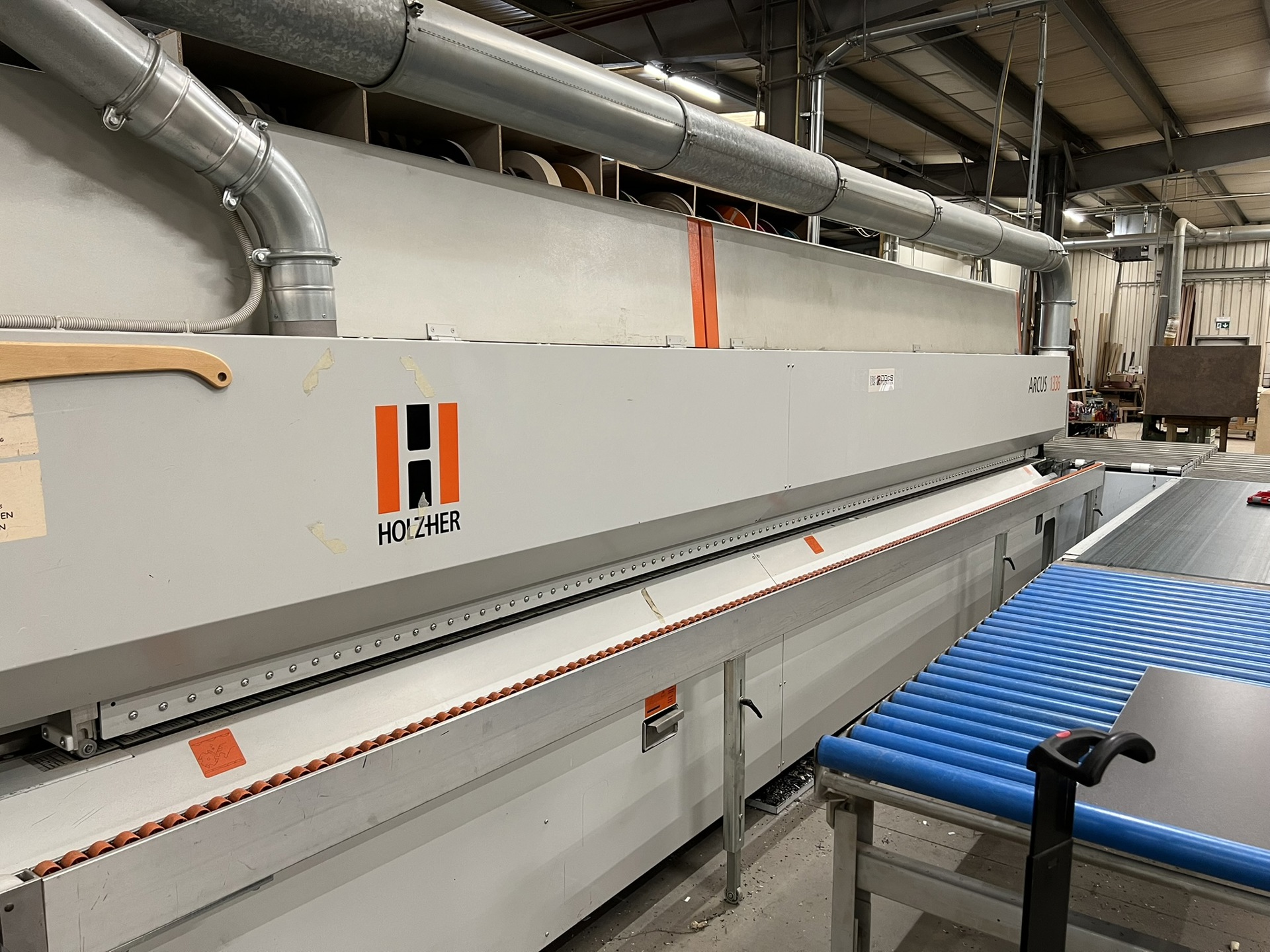

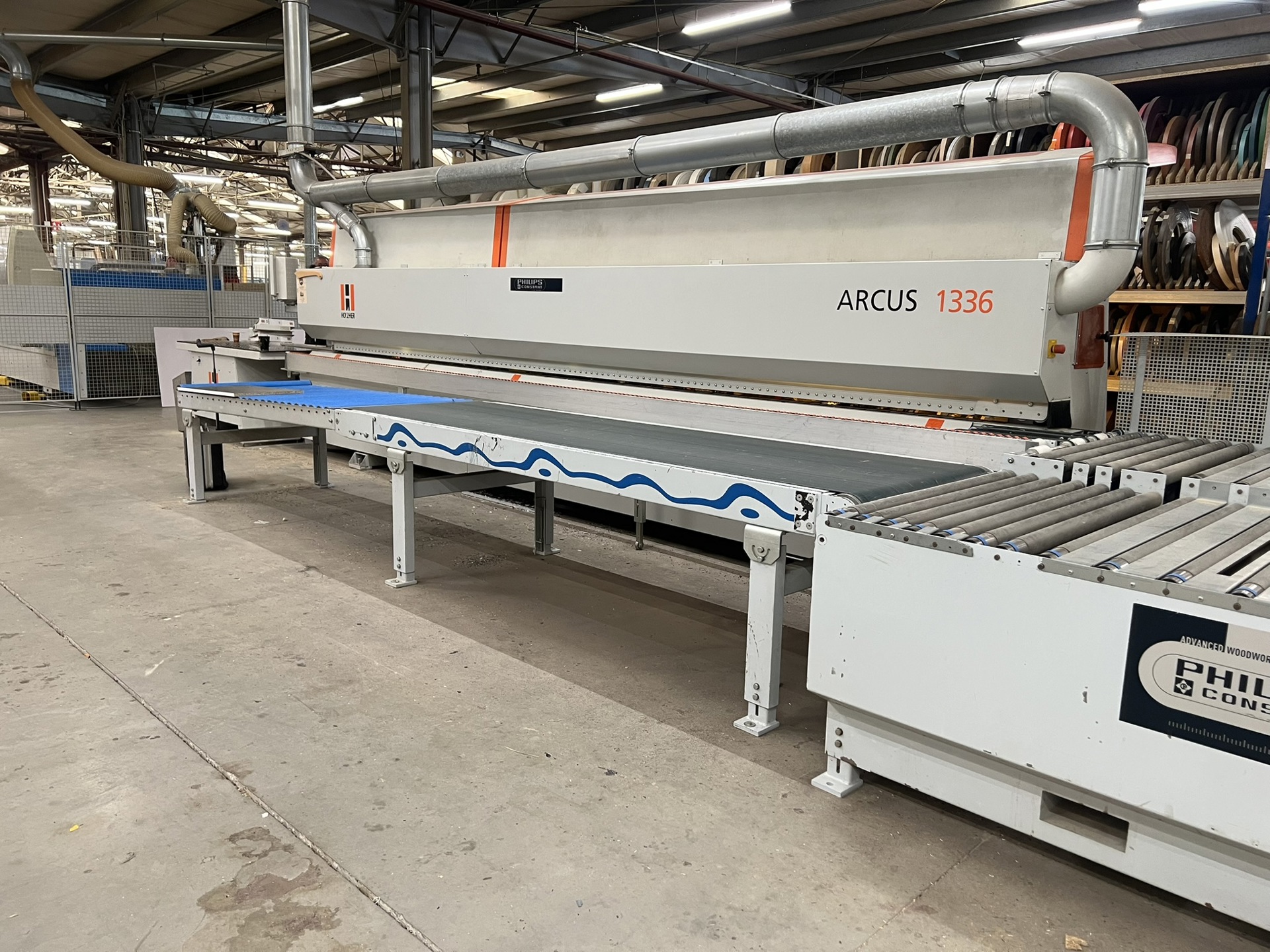

Holzher Arcus 1336 edge bander with plate Ligmatech ZHR 01 returnsystem

M002887
  • Available : end of june 2025
Holzher Arcus 1336 edge bander with plate Ligmatech ZHR 01 returnsystem
Back to overview
Technical Data

INFO Edge Bander

Year of Construction: 2012

Length of edge bander: 6851 mm
Weight of edge bander: 2690 kg

Working speed: 10-18 m/min
Minimum panel length: 140 mm
Minimum panel width: 60 mm
Panel thickness: 6 - 60 mm
Edge band thickness: 0.4 - 15 mm

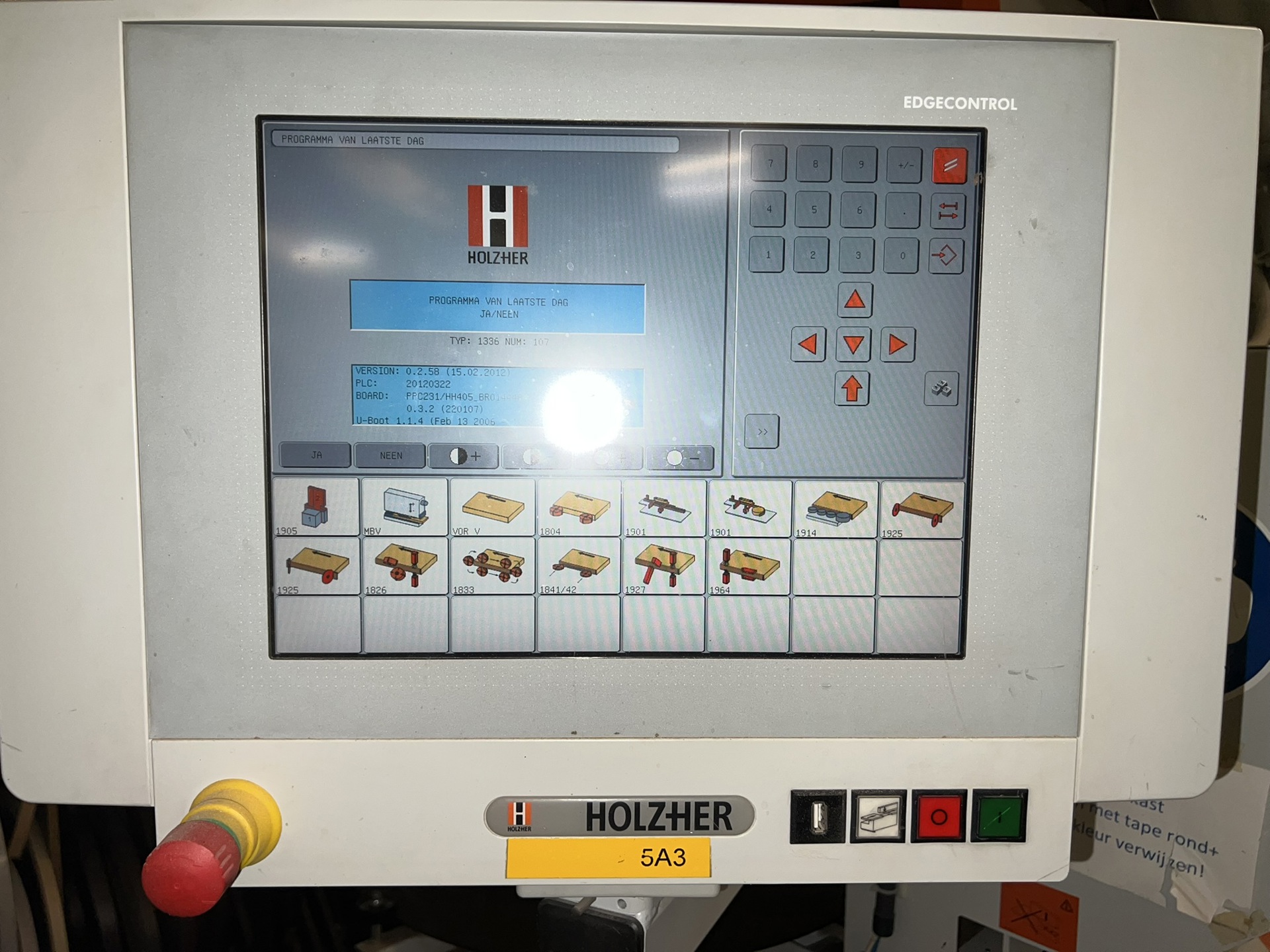

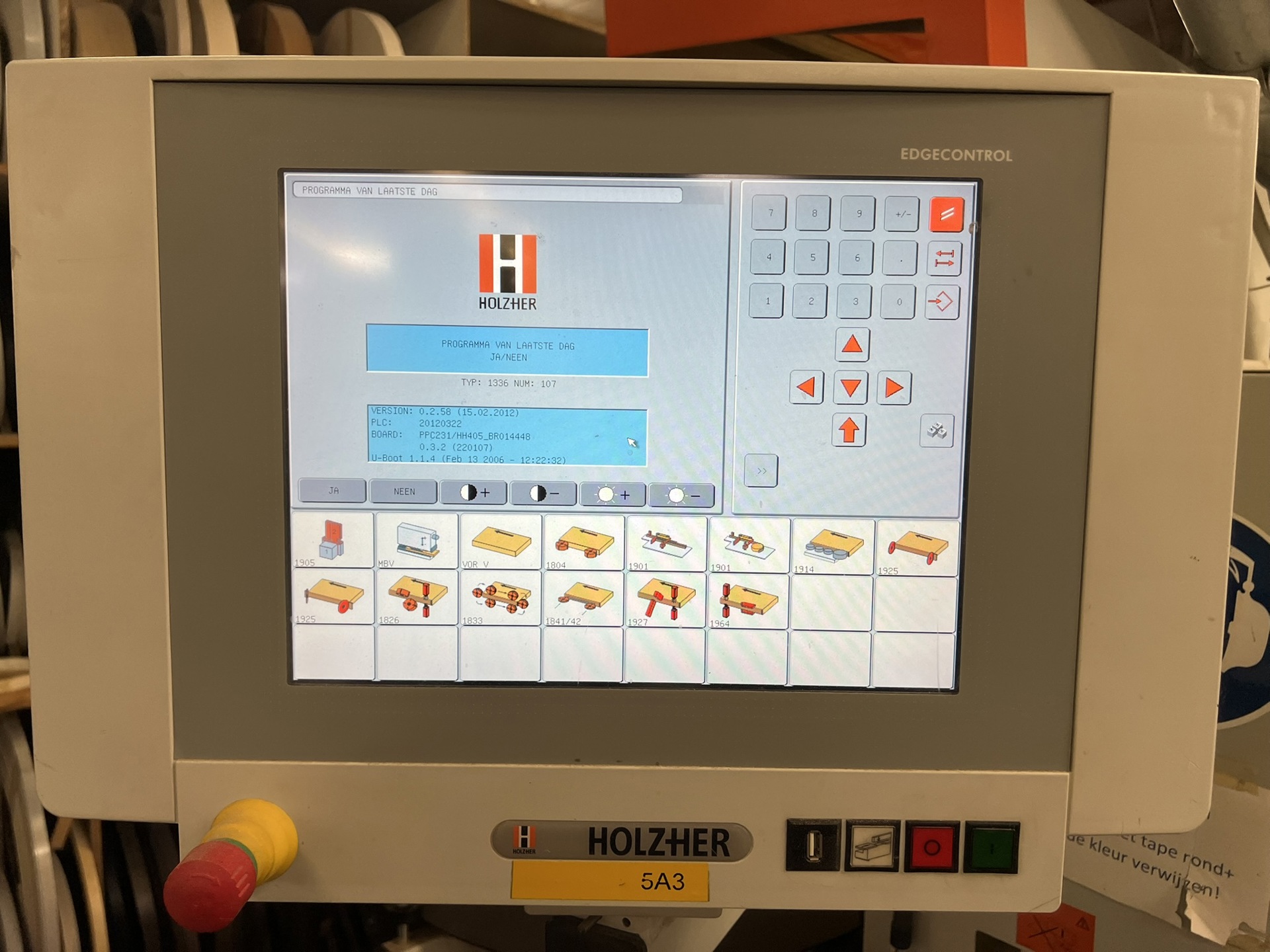

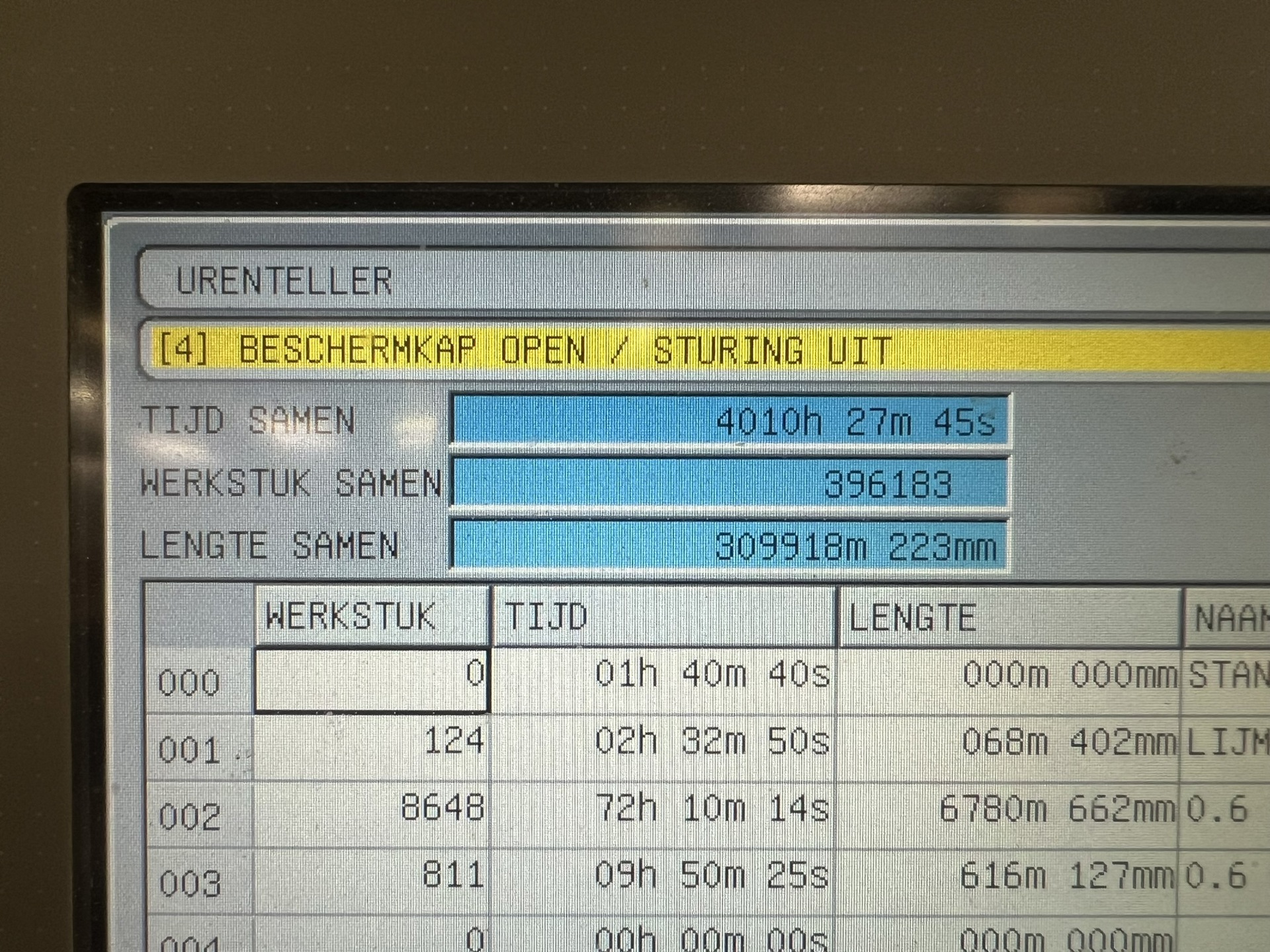

15" touch screen control on top, swivelling
Motorized pressure bridge

Air cushion table at the front
Extended infeed guide
Motorized infeed guide

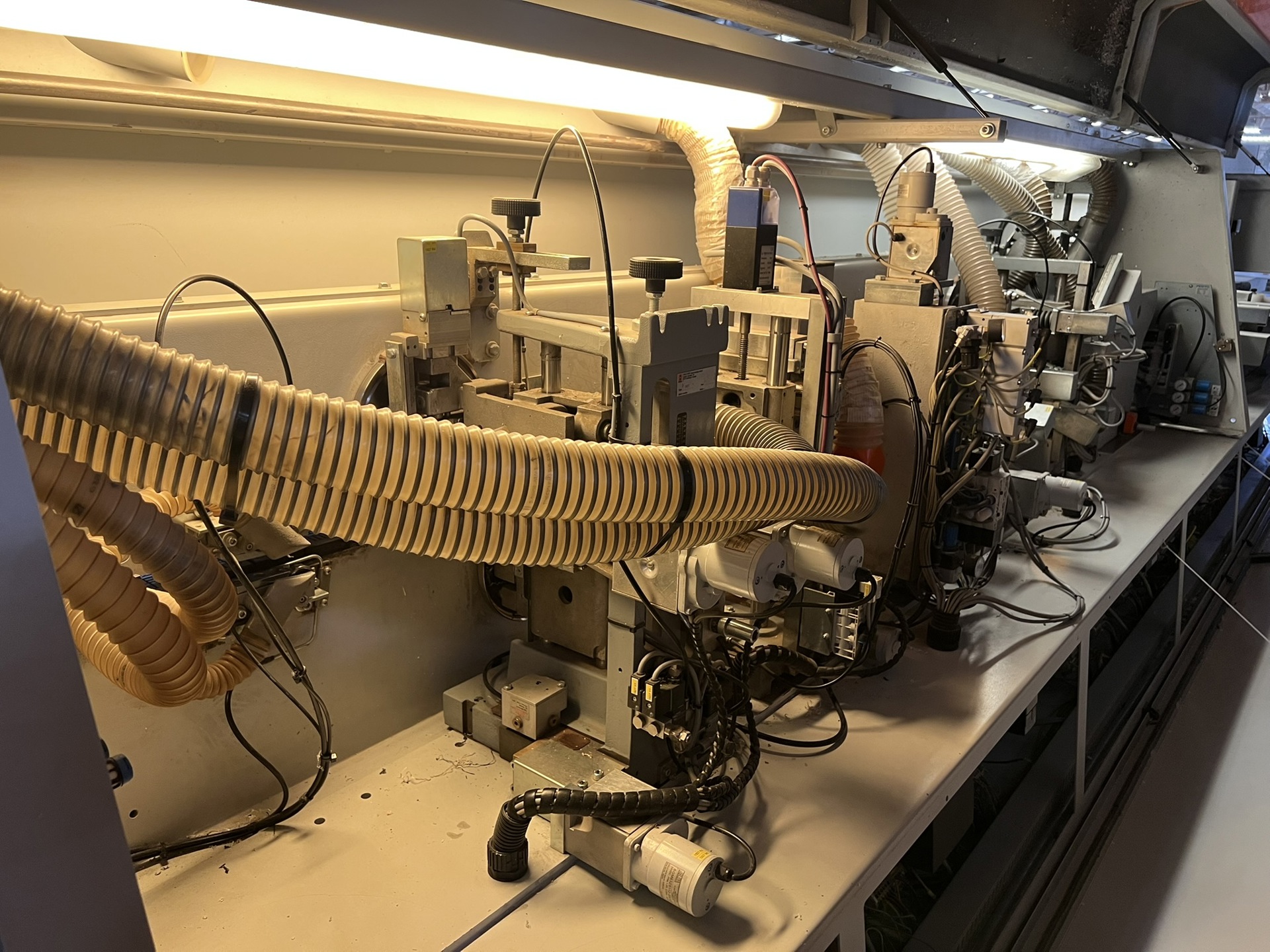

Pre-milling unit, left and right rotating

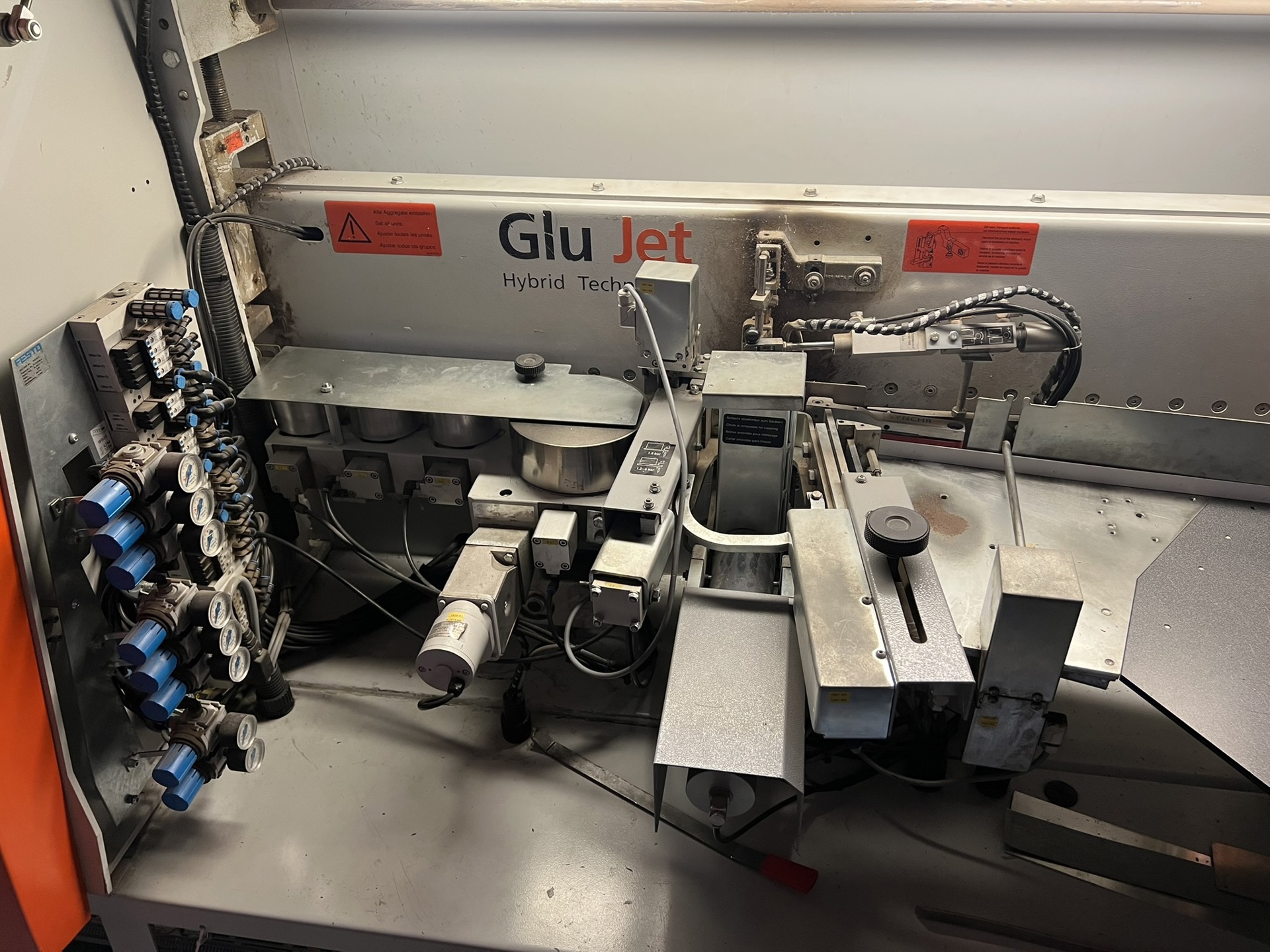

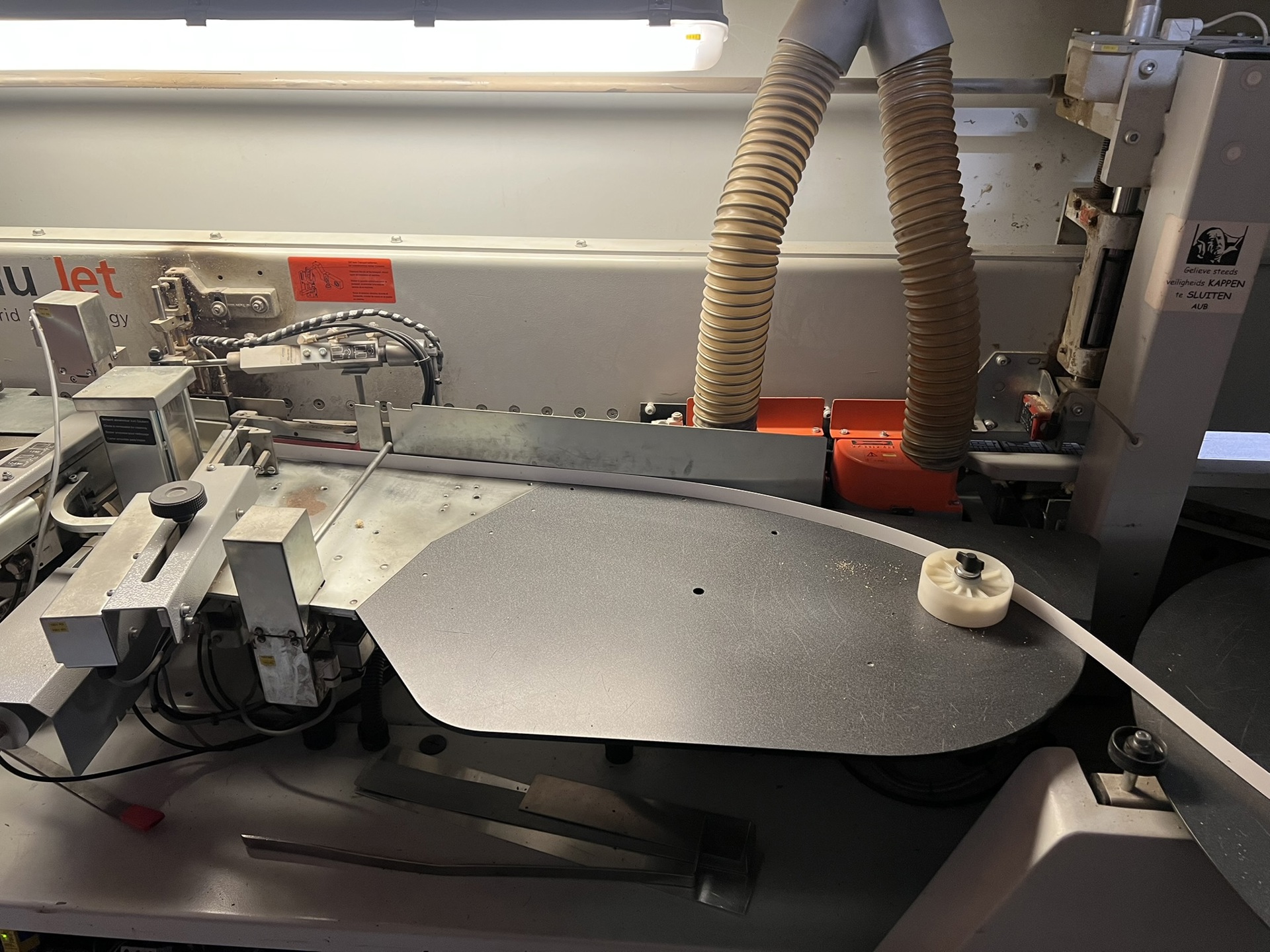

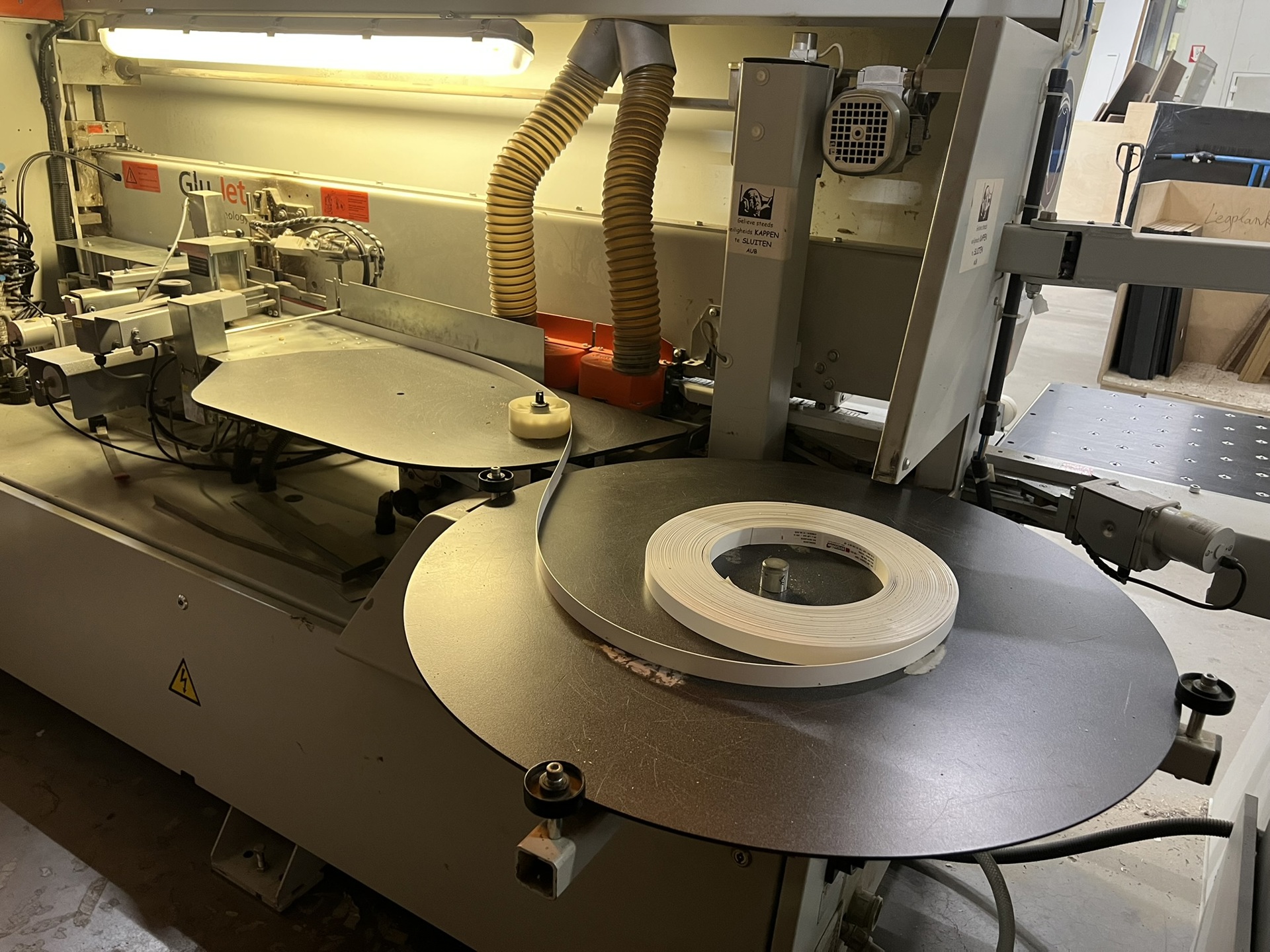

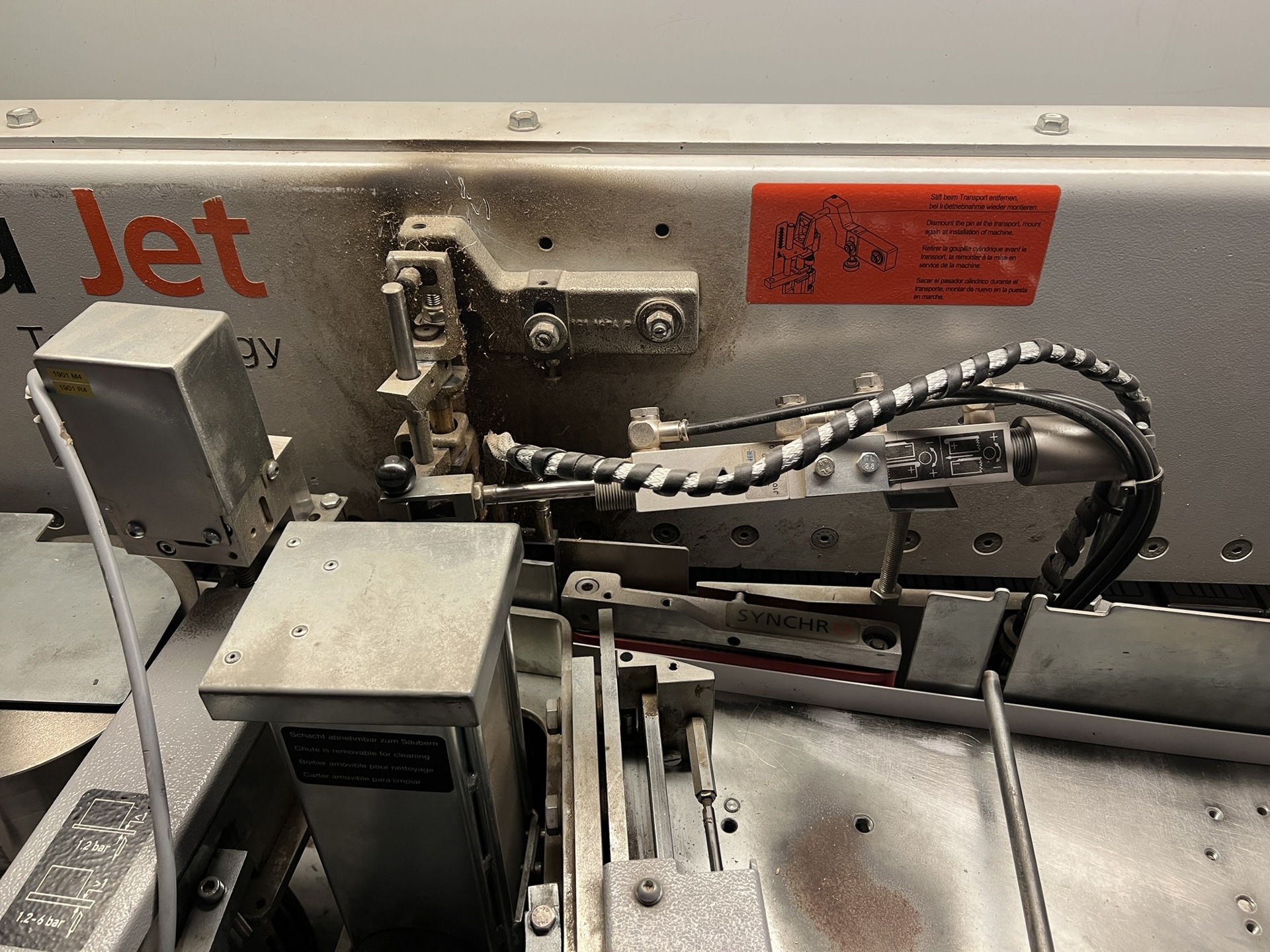

Glu-Jet system with loader for 4 cartridges
Motorized pressure zone with 1 large and conical pressure roller

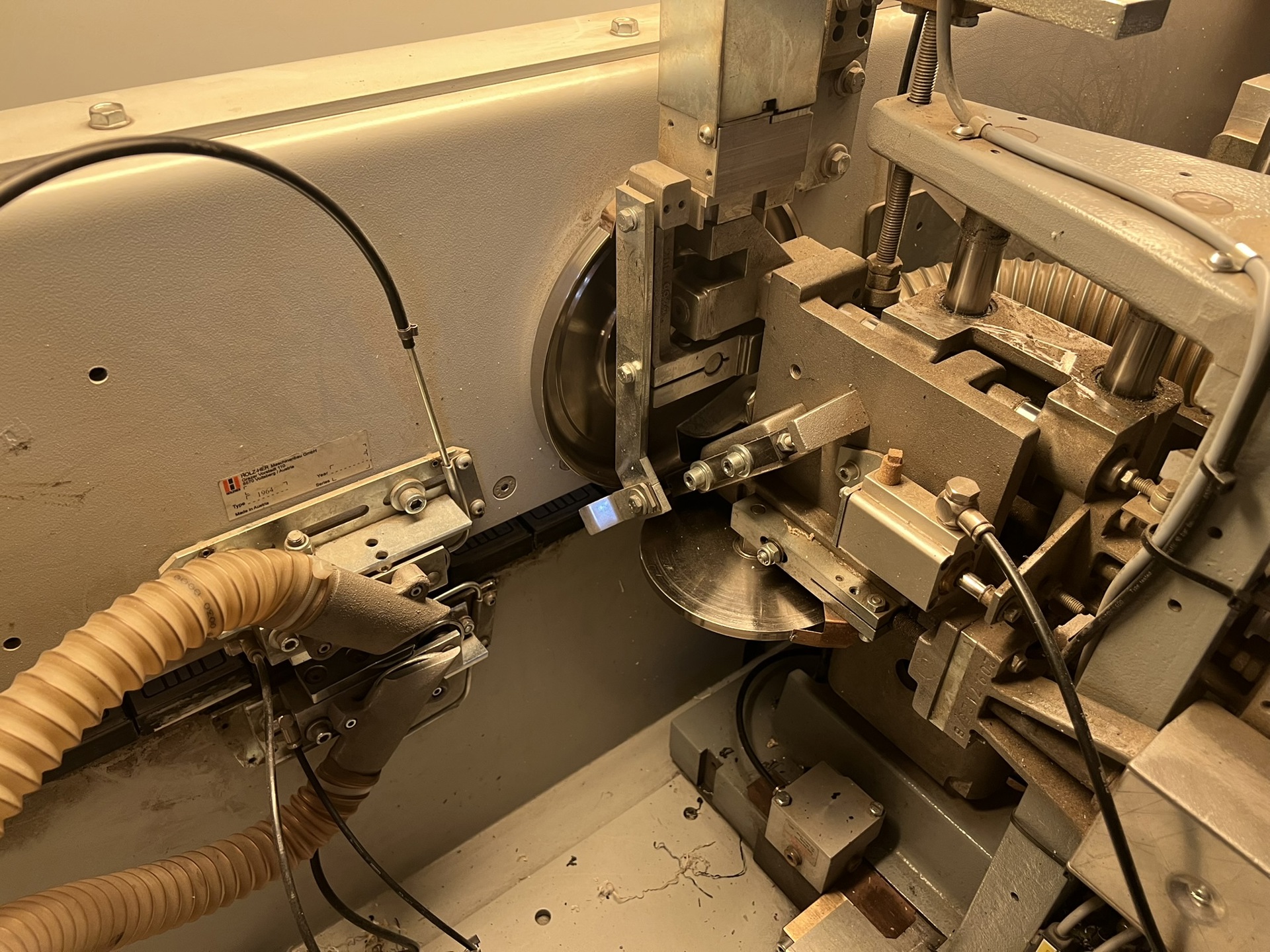

Double end saws on linear guides
Controlled fine trimming
Double corner rounding unit
Grooving unit at the front edge, motorized infeed
Controlled PVC scraper
Flat scraper

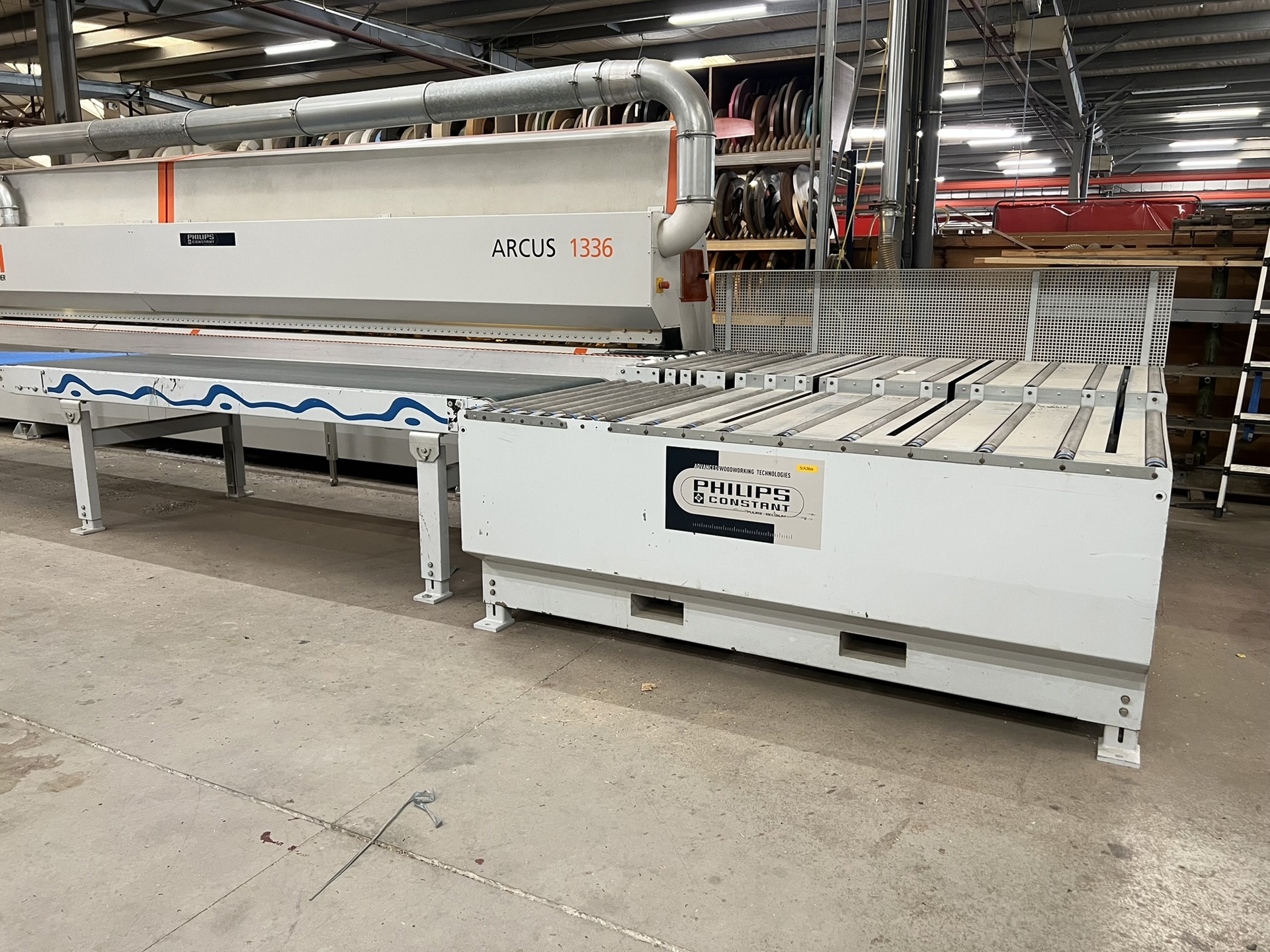

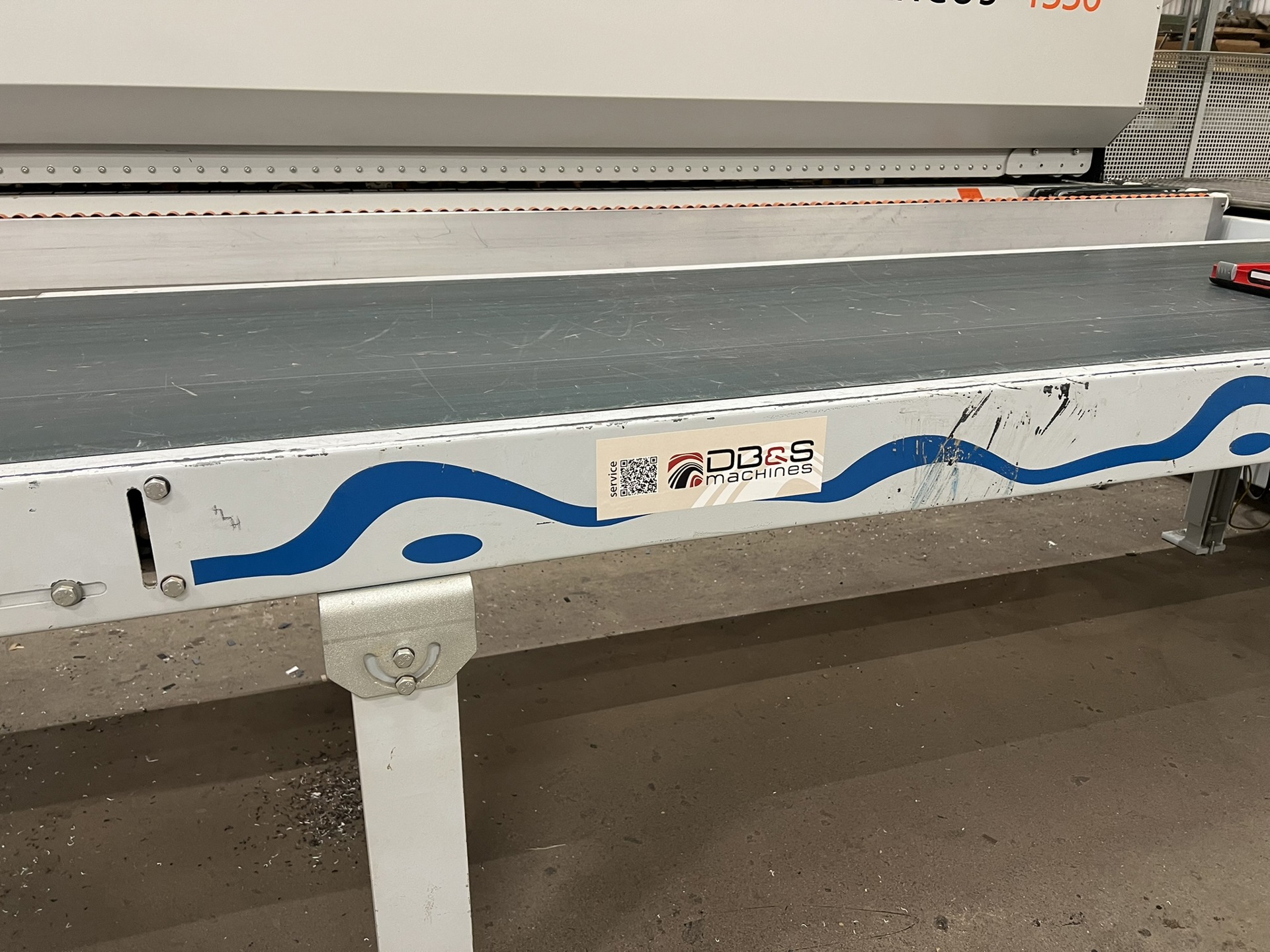

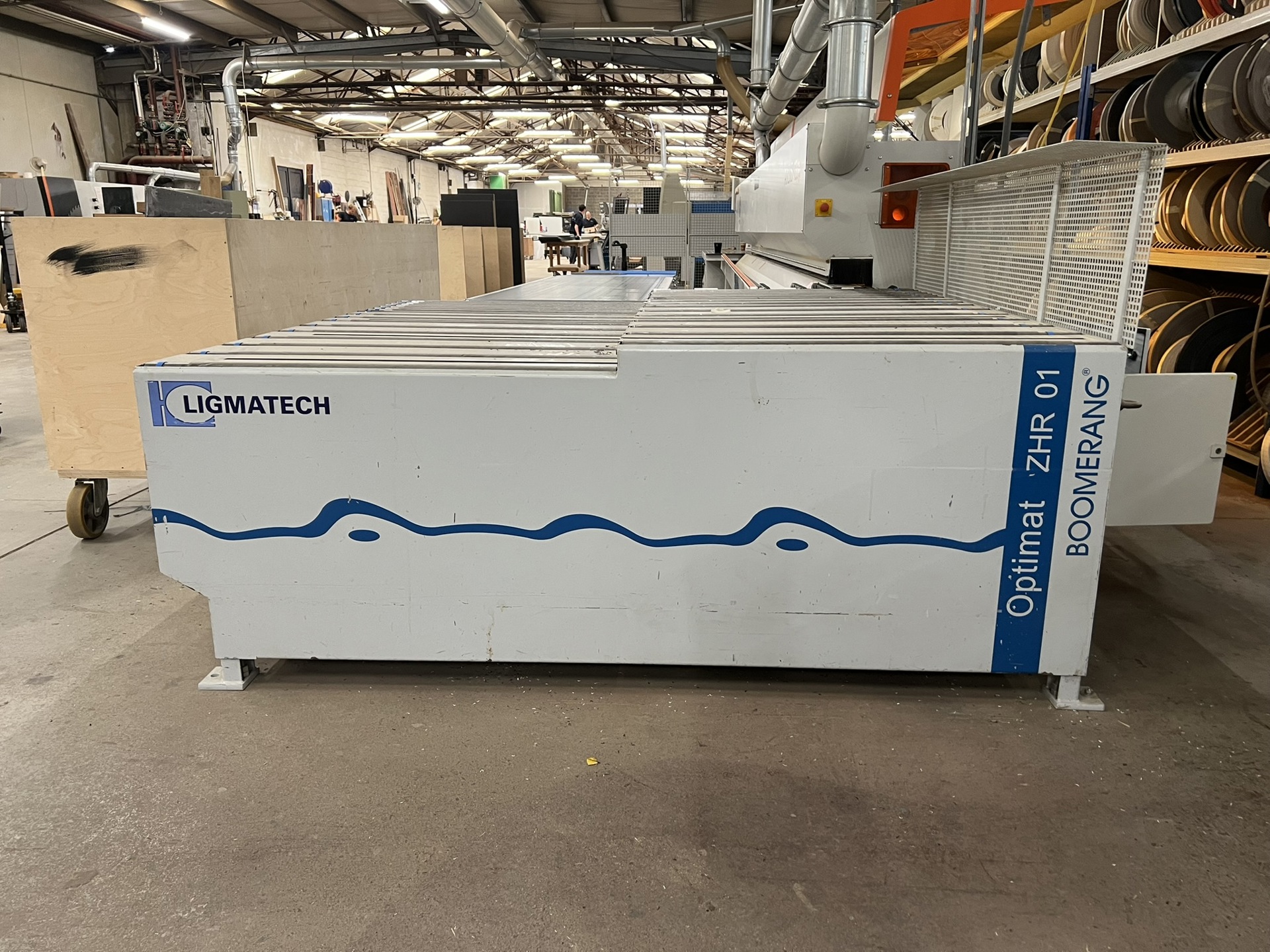

INFO Return System

Year of Construction: 2006

Returns parts up to a cross length of 1300 mm


Video gallery

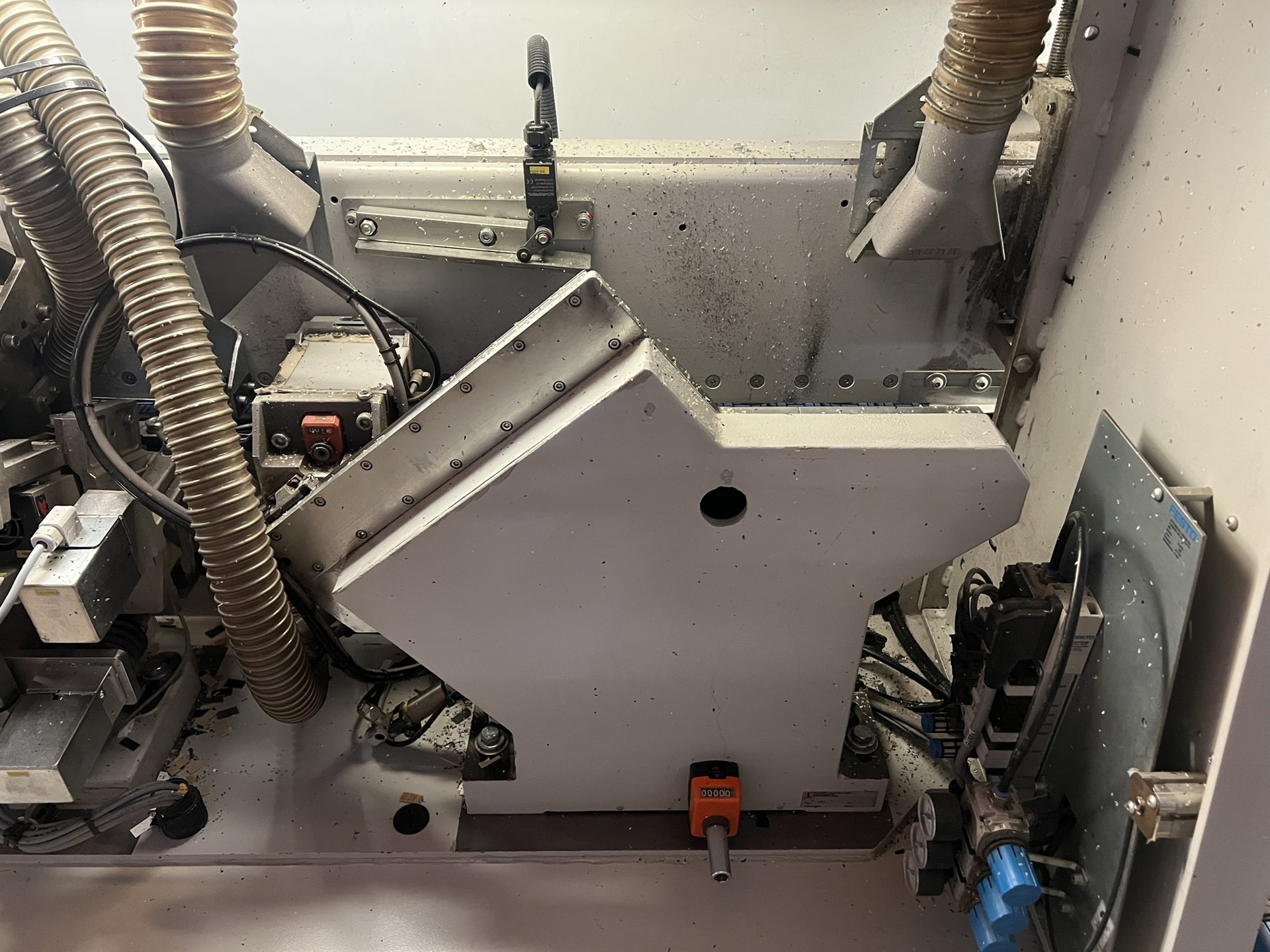

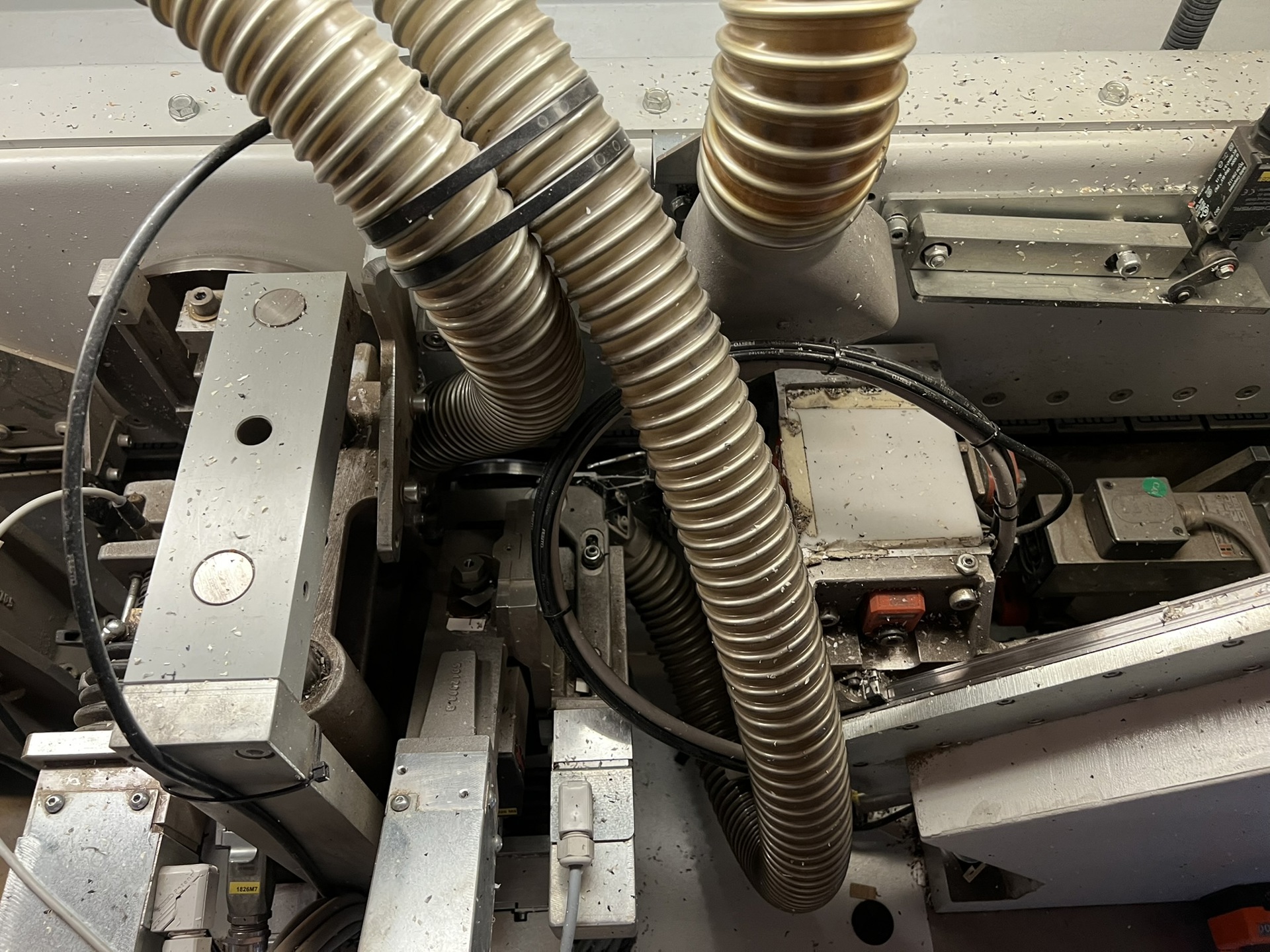

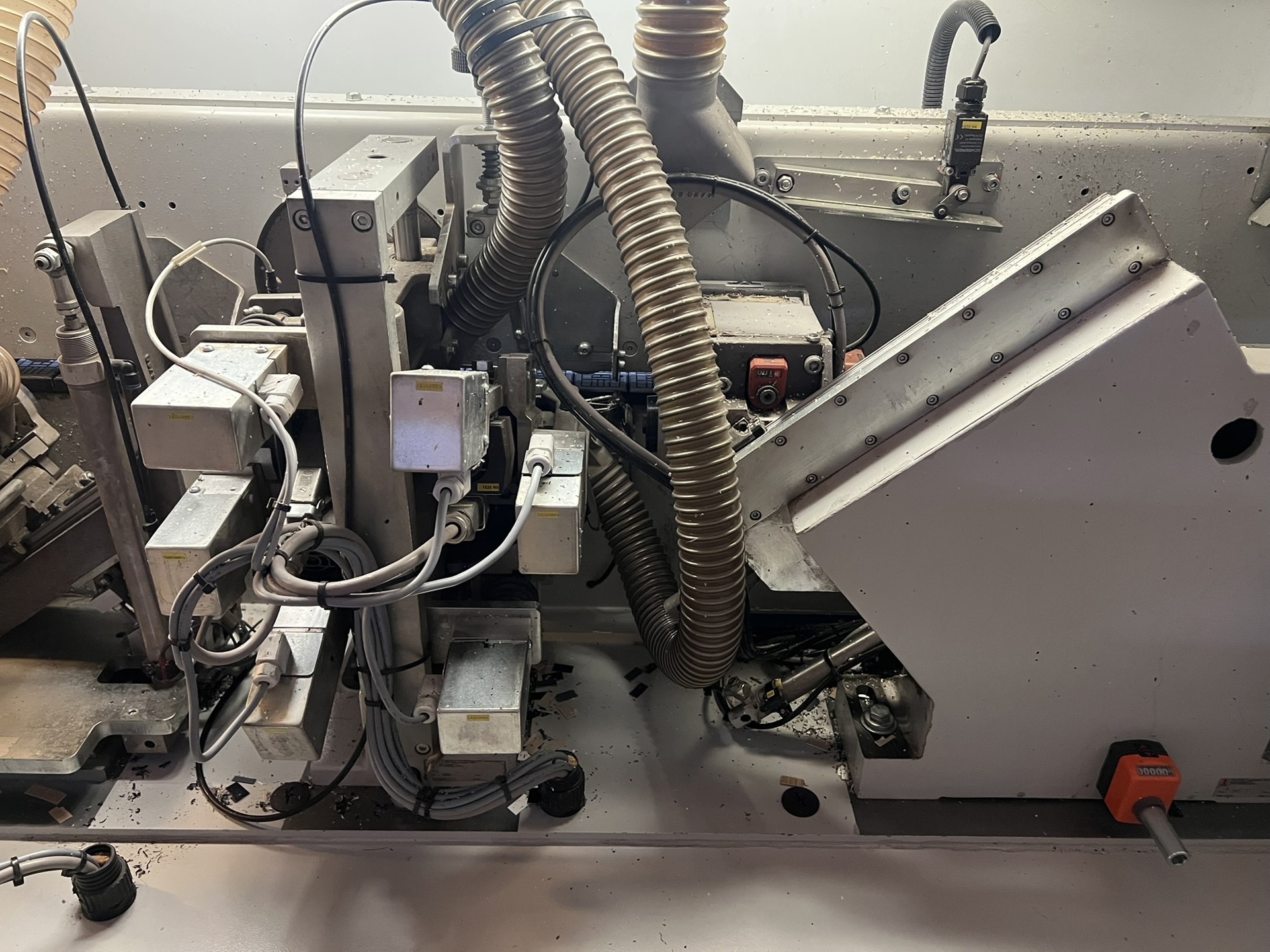

Photo gallery
